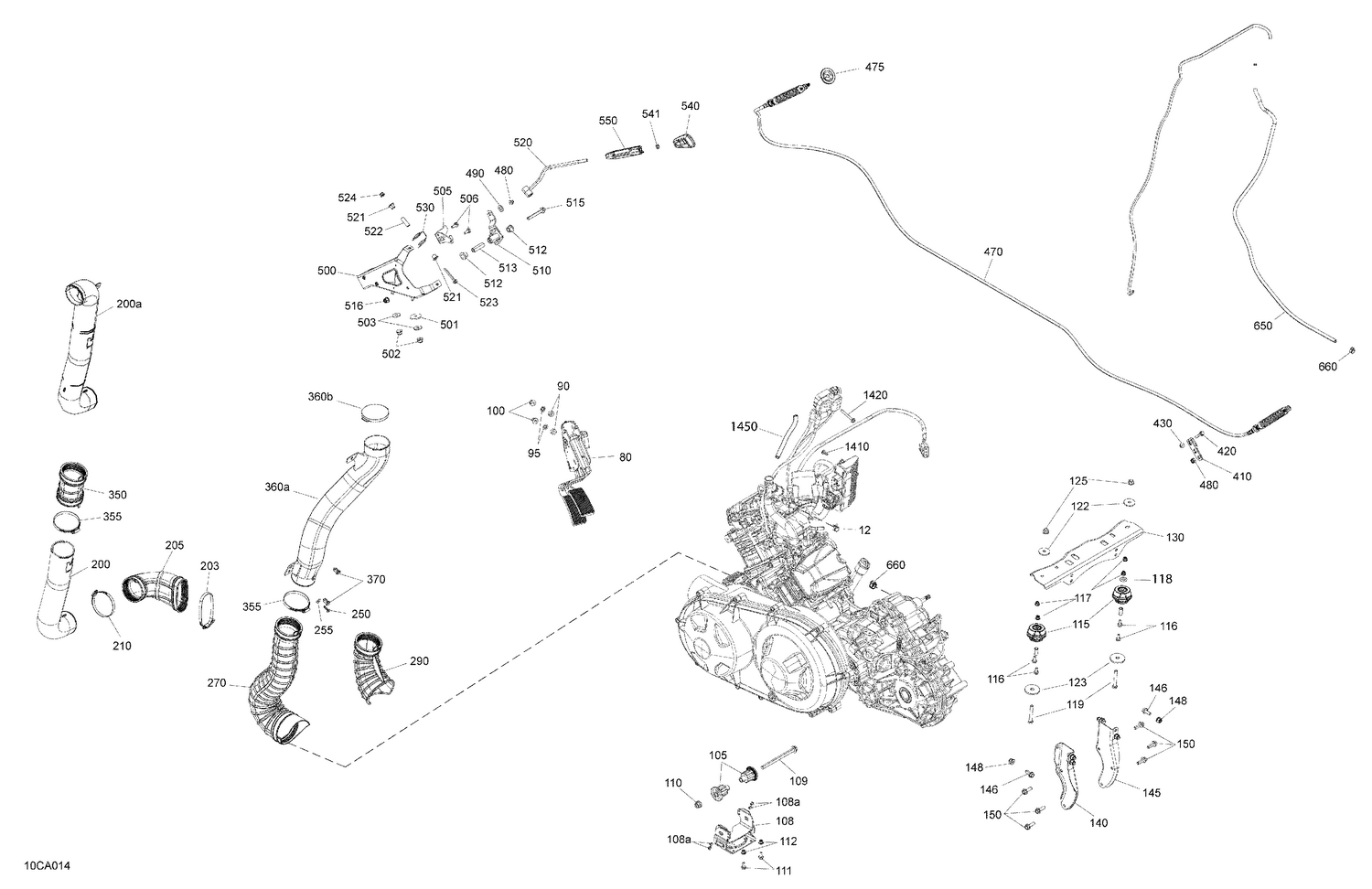

02- Engine - System
Parts (70)
| Ref | Part Number | Description |
|---|---|---|
| 12 | 293650214 | Norma Spring Clamp |
| 80 | 707001599 | Accelerator Pedal |
| 90 | 707000848 | Bushing |
| 95 | 250100031 | Push Nut |
| 100 | 233081436 | Hex. Flange Nut |
| 105 | 707001169 | Vibration Damper |
| 108 | 707003061 | Vibration Damper This part replaces 707002592. |
| 108a | 390402200 | Pop Rivet 3/16" |
| 109 | 230603546 | Hex. Flange Screw M10 X 135 |
| 110 | 233201436 | Hex. Flange Elastic Nut M10 |
| 111 | 207662044 | Hex. Flange Screw M6 X 20 |
| 112 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 115 | 707002590 | Rubber Mount |
| 116 | 207662044 | Hex. Flange Screw M6 X 20 |
| 117 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 118 | 293300215 | O-Ring |
| 119 | 207686544 | Hex. Flange Screw, M8 X 65 |
| 122 | 250200158 | Flat Washer M8 |
| 123 | 250200180 | Flat Washer M8 |
| 125 | 233081436 | Hex. Flange Nut |
| 130 | 707002290 | Rear Link Bracket |
| 140 | 707002449 | Engine Bracket |
| 145 | 707003340 | RH Rear Engine Support This part replaces 707002450. |
| 146 | 207582046 | Hex Flange Screw M8 X 20 |
| 148 | 233281416 | Hex. Elastic Flange Nut M8 |
| 150 | 207582544 | Hex. Flange Screw M8 X 25, Scotch Grip |
| 200a | 706600326 | Front CVT Cooling Duct |
| 203 | 514052983 | Norma Gear Clamp |
| 205 | 706600249 | Flexible Adapter |
| 210 | 293650091 | Norma Clamp |
| 250 | 250000760 | Torx Screw Truss Head K50X20 T20 |
| 255 | 250200025 | Washer M5 |
| 270 | 706600198 | Flexible Adapter |
| 290 | 706600199 | Air Baffle |
| 350 | 706600204 | Flexible Join |
| 355 | 293650091 | Norma Clamp |
| 360a | 706600279 | Pipe Ass'y |
| 360b | 293000123 | Cap |
| 370 | 293150230 | Tuflok Plastic Rivet |
| 410 | 707000911 | Lever |
| 420 | 207663544 | Hex. Flange Screw M6 X 35 |
| 430 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 470 | 707002725 | Shift Lever Cable |
| 475 | 293720109 | Grommet |
| 480 | 232581414 | Hex. Elastic Stop Nut M8 |
| 490 | 234001410 | Flat Washer 10 mm |
| 500 | 707002372 | Shifter Bracket |
| 501 | 250200158 | Flat Washer M8 |
| 502 | 233281414 | Hex. Flange Elastic Nut M8 |
| 503 | 234082410 | Flat Washer 8 mm |
| 505 | 707002038 | Cable Support |
| 506 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 510 | 707002268 | Lower Shifter Arm |
| 512 | 293900001 | Venturi Bushing |
| 513 | 707003445 | Bushing This part replaces 707001863. |
| 515 | 207686044 | Hex. Flange Screw M8 x 60 |
| 516 | 233281414 | Hex. Flange Elastic Nut M8 |
| 520 | 707002374 | Shifter Arm |
| 521 | 707000869 | Flanged Bushing |
| 522 | 707001376 | Bushing |
| 523 | 207665044 | Hex. Flange Screw M6 X 50 |
| 524 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 530 | 707000750 | Lever Arm Spring |
| 540 | 707003211 | Lever Trim This part replaces 707000965. |
| 541 | 232180491 | Hex. Jam Nut M8 |
| 550 | 707001899 | Shifting Arm Cover |
| 650 | 219704549 | Hose This part replaces 219704439. |
| 660 | 293650042 | Oetiker Clamp |
| 1410 | 243141630 | Hex. Plastic Screw M4.8 X 16 |
| 1420 | 250000213 | Hex. Flange Screw M6 X 1.0 X 45 |
