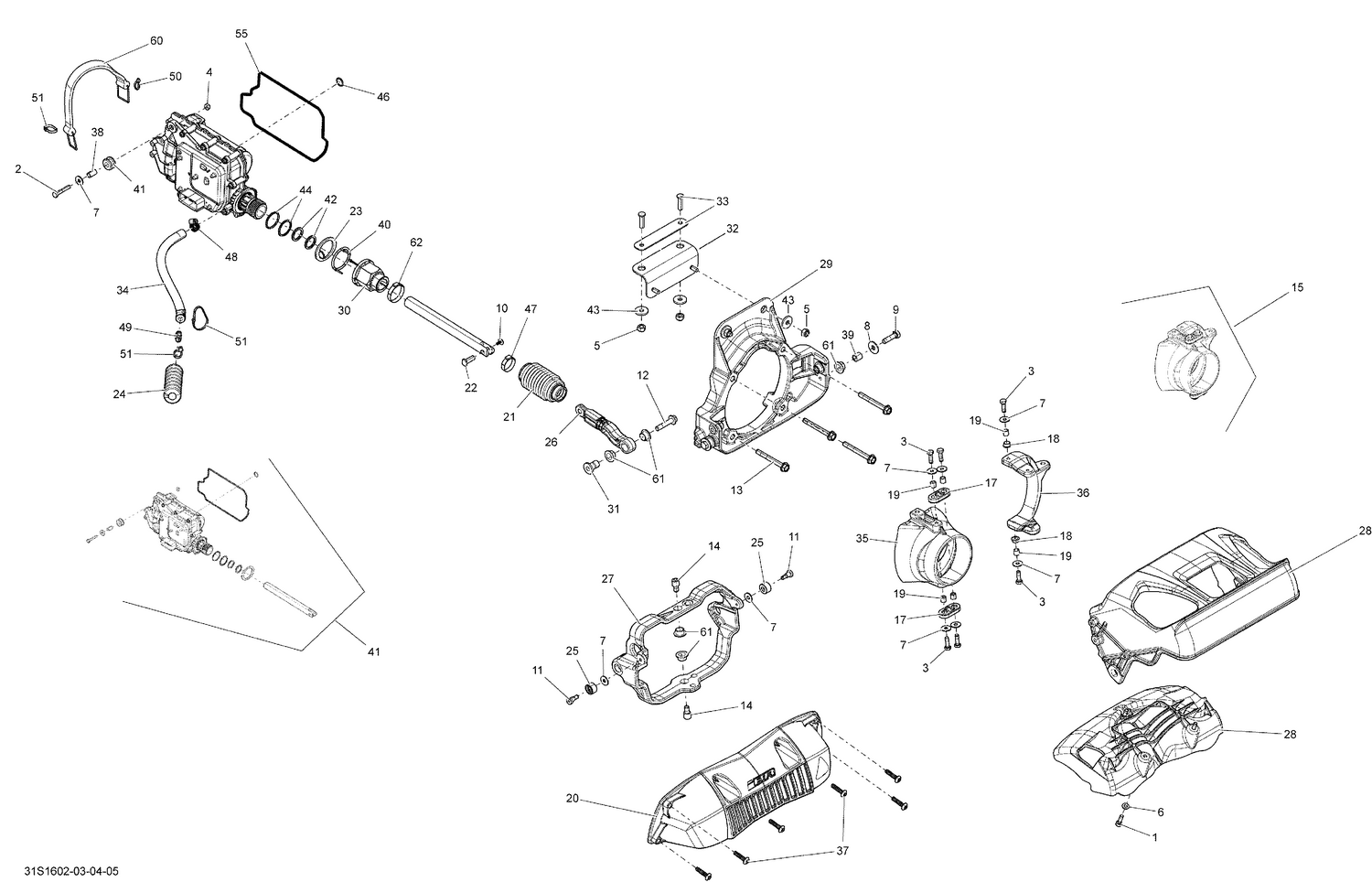

05- Reverse
Parts (50)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 205562060 | Socket Head Screw M6 X 20, Scotch Grip |
| 2 | 207063560 | Hex. Screw M6 X 35 |
| 3 | 207362060 | Hex. Screw M6 X 20, Scotch Grip |
| 4 | 232561200 | Brass Elastic Stop Nut M6 |
| 5 | 232581200 | Hex. Elastic Nut M8 Brass |
| 6 | 234061600 | Stainless Flat Washer M6 |
| 7 | 234062600 | Flat Washer M6, Stainless |
| 8 | 234082600 | Flat Washer 8 mm, Stainless |
| 9 | 250000526 | Hex. Screw M8 X 30, Scotch Grip |
| 10 | 250000565 | Hexalob Screw M4 X 10 |
| 11 | 295501160 | Roller Bushing Kit |
| 12 | 250000834 | Hex. Screw Flange DIN.6921 S.Grip |
| 13 | 250000835 | Screw-Hex.Flange DIN.6921 S.Grip |
| 14 | 250000837 | Screw Socket S.Grip |
| 15 | 267000905 | NOZZLE ASS'Y - Call your local BRP dealership |
| 17 | 268000058 | Direction Lever Arm |
| 18 | 268000059 | Bushing |
| 19 | 268000060 | Spacer |
| 20 | 268000162 | Guard |
| 21 | 268000186 | Boot |
| 22 | 268000309 | Shoulder Pin This part replaces 268000207. |
| 23 | 268000208 | Gasket |
| 24 | 268000211 | Inner Boot |
| 25 | 295501160 | Roller Bushing Kit |
| 26 | 268000256 | Linkage Arm |
| 27 | 268000247 | Trimming Ring |
| 29 | 268000266 | Bracket |
| 30 | 268000308 | IBR Nut This part replaces 268000267. |
| 31 | 268000269 | Bushing |
| 32 | 268000304 | Reverse Bracket This part replaces 268000270. |
| 33 | 268000271 | Ass'y Bracket |
| 34 | 219704420 | Was 509000407 Hose 8 mm |
| 35 | 267000727 | Jet Pump Nozzle |
| 36 | 268000148 | Nozzle Lever, Black |
| 37 | 250001138 | Plastite Screw Torx Cone HD.M6.81X3 This part replaces 250000828. |
| 38 | 271001020 | Spacer |
| 39 | 271001039 | Spacer |
| 40 | 277001977 | Rubber Gasket |
| 41 | 278003606 | Actuator This part replaces 278003292. |
| 42 | 279000108 | O-Ring |
| 43 | 279000336 | Flat Washer This part replaces 279000164. |
| 44 | 293300107 | O-Ring |
| 46 | 293300187 | O-Ring |
| 47 | 293650099 | Crimp Clamp |
| 48 | 293650171 | Tridon Gear Clamp |
| 49 | 293710157 | Fitting-Straig |
| 50 | 293750001 | Tie Wrap 94 mm |
| 51 | 293750002 | Tie Wrap 142 mm |
| 60 | 293850123 | Fuel Tank Strap |
| 61 | 293900007 | Venturi Bushing |
