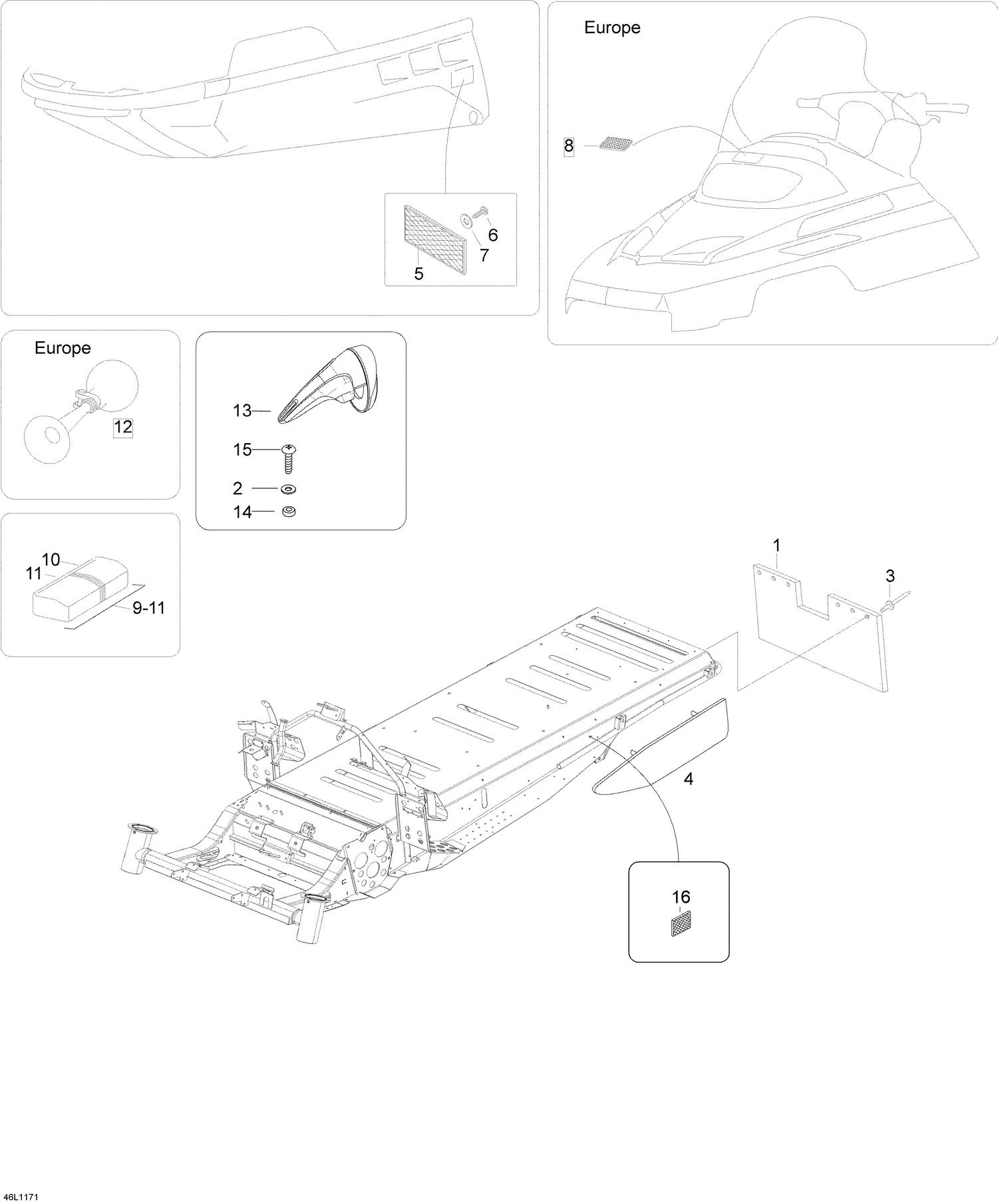

| Ref | Part Number | Description |
|---|
| 1 |
520000857 |
SNOW GUARD - Call your local BRP dealership |
| 2 |
250200024 |
Rubber Washer 5 mm |
| 3 |
36036 |
Rivet |
| 4 |
605354746 |
LH SIDE SNOW GUARD - Call your local BRP dealership |
| 4 |
605354747 |
RH SIDE SNOW GUARD - Call your local BRP dealership |
| 5 |
414510200 |
REFLECTOR, AMBER - Call your local BRP dealership |
| 6 |
40070 |
Slot sc. M5 x 10DIN7985m4.6Zne(1=10pcs) - Call your local BRP dealership |
| 7 |
20018 |
Serrated lock washer A5,3 |
| 8 |
21118 |
Reflector (Bright) |
| 9 |
605350525 |
TOOL KIT - Call your local BRP dealership |
| 10 |
Not |
Available As Spare Part - Cover |
| 11 |
A50121179000 |
TOOL BOX - Call your local BRP dealership |
| 12 |
549011291 |
Horn |
| 13 |
517303955 |
Mirror Kit |
| 14 |
250200025 |
Washer M5 |
| 15 |
250000720 |
Torx Screw K50 X 16 This part replaces 250000146. |
