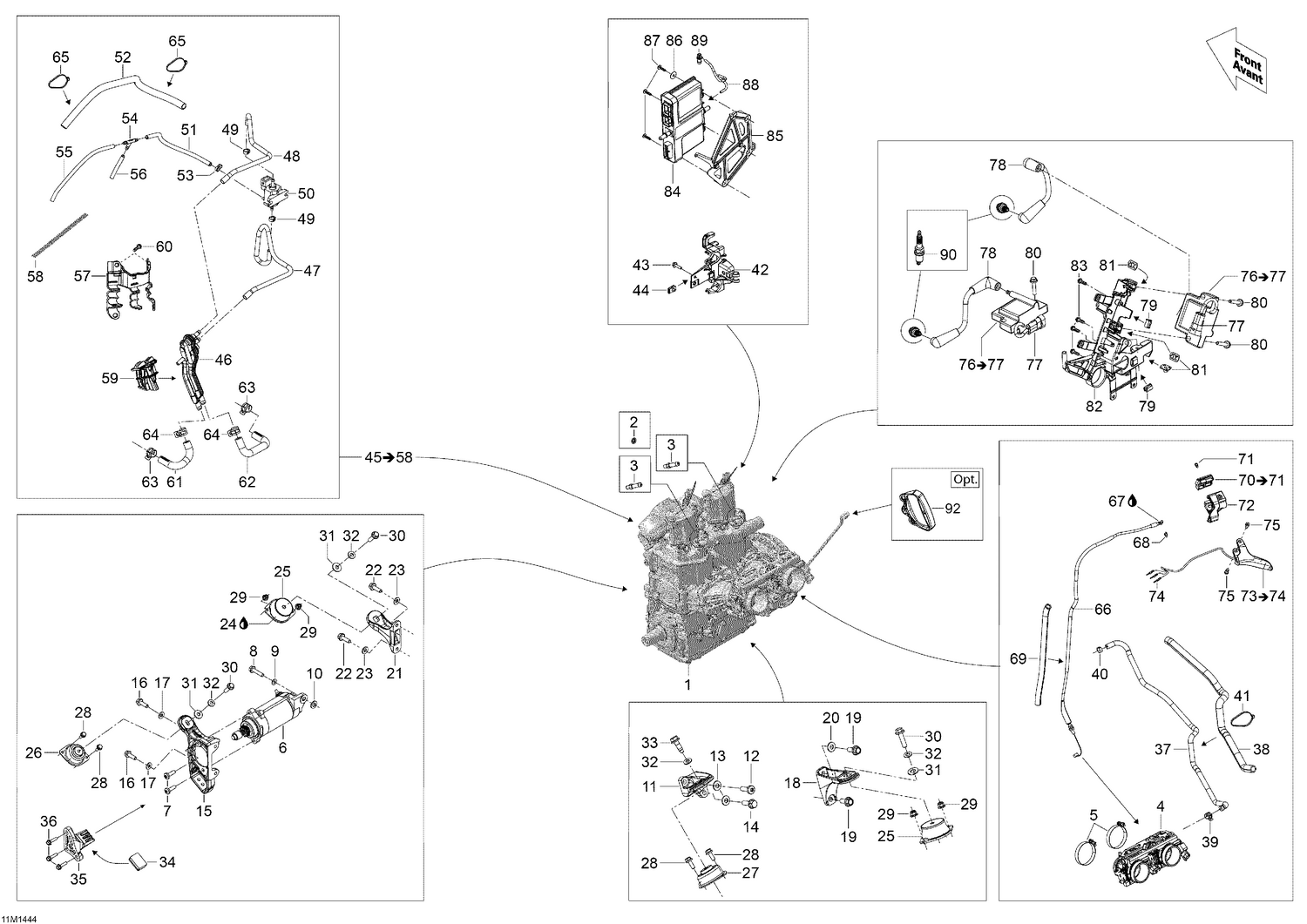

01- Engine And Engine Support

01- Engine And Engine Support

Parts (85)

RefPart NumberDescription
1 Not Available As Spare Part - Engine 600HO E-TEC
2 732610072 Push Nut
3 420924724 Hose Nipple
4 420889201 Throttle Body This part replaces 420889197.
5 293650158 Gemi Clamp
6 515178473 Starter This part replaces 515177389.
7 250000752 Torx Screw M8 X 1.25 X 25, Scotch Grip This part replaces 250000248.
8 207583544 Hex Flange Screw M8 X 35, Scotch Grip
9 250200008 Flat Washer With Teflon 8 mm
10 515176500 Washer
11 512060478 Rear Support, PTO
12 250000752 Torx Screw M8 X 1.25 X 25, Scotch Grip This part replaces 250000248.
13 234281474 Conical Spring Washer M8
14 207582586 Hex. Flange Screw M8 X 25, Scotch Grip
15 512060712 FRONT SUPPORT PTO - Call your local BRP dealership
16 207582586 Hex. Flange Screw M8 X 25, Scotch Grip
17 234281474 Conical Spring Washer M8
18 512060559 Rear Support, MAG
19 207582044 Hex. Flange Screw M8 X 20, Scotch Grip
20 234281474 Conical Spring Washer M8
21 512060469 Front Support, MAG
22 207582586 Hex. Flange Screw M8 X 25, Scotch Grip
23 234281474 Conical Spring Washer M8
24 Not Available As Spare Part - Synthetic Grease
25 512060729 Rubber Mount
26 512061507 Vibration Damper This part replaces 512060387.
27 512060448 Rubber Mount
28 207561644 Hex. Flange Screw M6 X 16, Scotch Grip
29 233261414 Hex. Flange Elastic Nut M6 x 1.0
30 207683044 Hex. Flange Screw M8 X 30
31 503183200 Yellow, Washer
32 234281474 Conical Spring Washer M8
33 250000796 Hex. Flange Screw M8 X 1.25 X 25 This part replaces 250000570.
34 512060627 Stopper
35 512060576 Stopper Support
36 207562544 Hex. Flange Screw M6 X 25
37 509000793 FORMED HOSE OUTPUT TB - Call your local BRP dealership
38 219704408 Tubing 16 Mm 1000Mm Long
39 293650172 Tridon Gear Clamp
40 293650047 Crimp Clamp, 15.3-706R
41 293750008 Tie Wrap 368 mm
42 512060298 Solenoid Support
43 207652044 Hex.Flange Screw M5 X 20
44 250000958 Panel Nut M5 X 0.8 This part replaces 250000079.
46 512060692 Manifold
47 219704410 Polyurethane Hose 10000Mm Long
48 219704410 Polyurethane Hose 10000Mm Long
49 293650234 Crimp Clamp
50 270600005 Solenoid Valve This part replaces 512060774.
51 219704352 Was 420660574 Pressure Hose 280 mm
52 219704399 Was 409901700 Tubing (9 mm)
53 293750001 Tie Wrap 94 mm
54 293710068 T-Fitting
55 219704352 Was 420660574 Pressure Hose 280 mm
56 219704352 Was 420660574 Pressure Hose 280 mm
57 512060827 Hose Support
58 512060934 Spring
59 512060769 Manifold Support
60 210251180 HEX. FLANGED SCREW M5 X 11 - Call your local BRP dealership
61 512060695 LH Formed Hose
62 512060694 RH Formed Hose
63 293650214 Norma Spring Clamp
64 293650047 Crimp Clamp, 15.3-706R
65 293750001 Tie Wrap 94 mm
66 512060633 Throttle Cable
68 414274500 Circlip
69 219704399 Was 409901700 Tubing (9 mm)
71 414440800 Socket Set Screw M8 X 10
72 512060860 Lower Housing
74 515175232 Male Terminal
75 732601143 Flange Screw
77 710000568 Housing
78 512061126 Ignition Cable, 177mm long This part replaces 512060094.
79 710000992 Clip
80 250000253 Hex. Flange Screw M6 X 1.0 X 30
81 293100003 Nut Welded, M6
82 512060888 Ignition Coils Support
83 241151640 Hex. Flange Screw K50 X 2.24 X 16
84 512060780 Calibrated Module This part replaces 512060912.
85 512060858 Calibrated Module Support
86 250200040 Flat Washer
87 250000297 Truss Head Torx Screw K50 X 20
88 219704709 NEEDS DESCRIPTION This part replaces 219704409.
89 414814100 Male Connector
90 415130430 Spark Plug NGK PZFR6F This part replaces 415129432.
