Home / BRP / 2009 / GSX / GSX Sport 500SS, 2009 000DC9A00 / 09- Utilities

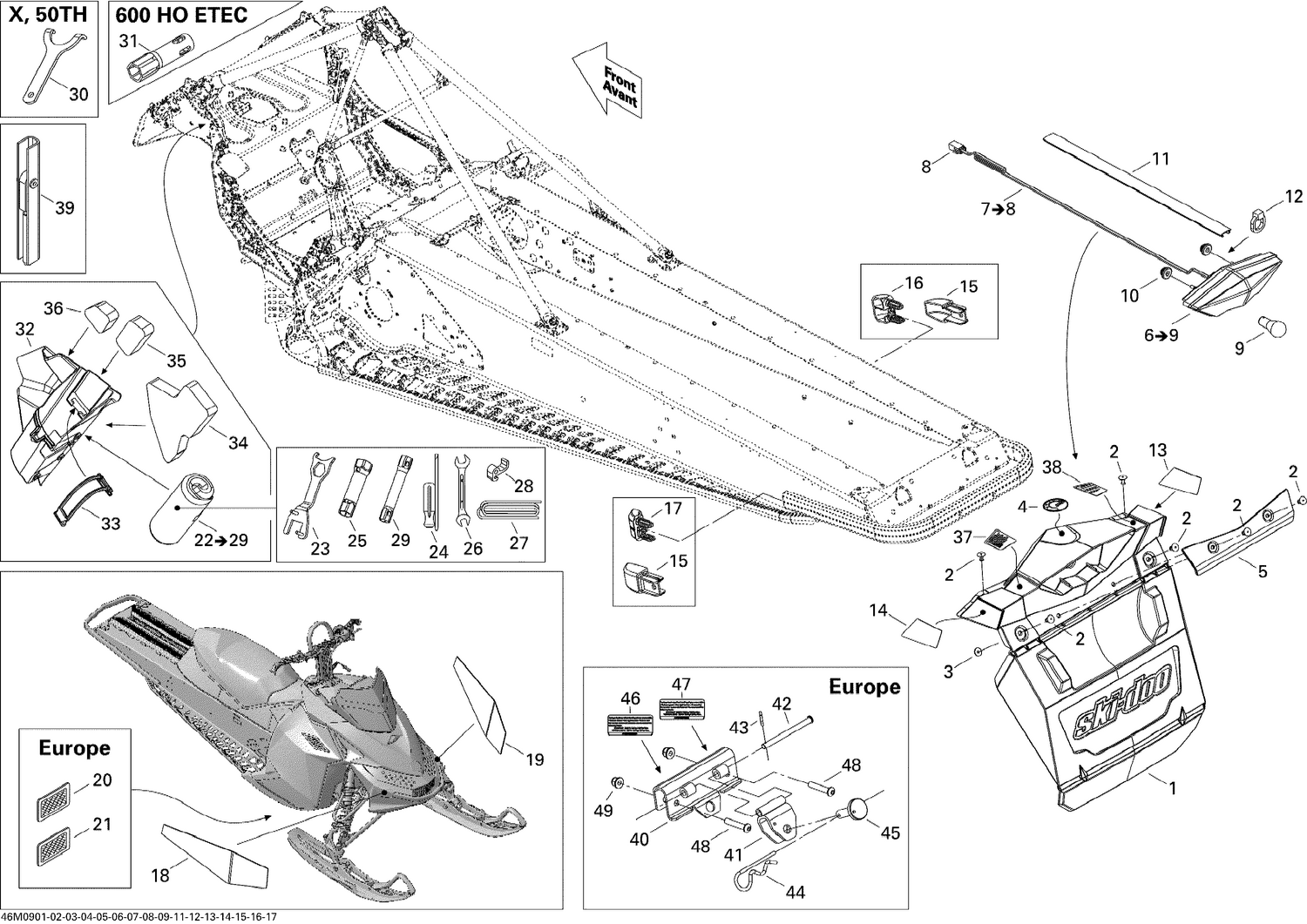

09- Utilities

09- Utilities

Parts (41)

RefPart NumberDescription
1 520000704 Snow Guard
2 293150108 Pop Rivet 3/16” This part replaces 293150108.
3 517124300 Washer
4 516008738 BRP Logo 48mm This part replaces 219902468.
5 520000751 Reinforcement
8 515175494 Male Housing, 3 Circuits
9 520000758 Bulb
10 705014429 Rubber Stopper This part replaces 705001119.
11 520000829 Radiator Trim
12 293750002 Tie Wrap 142 mm
15 520000567 Full Moon Cap
16 XXX Not Available As Spare Parts
17 XXX Not Available As Spare Parts
18 520000718 Yellow, RH Front Reflector
19 520000719 Yellow, LH Front Reflector
23 520000721 WRENCH - Call your local BRP dealership
24 529000004 SCREWDRIVER - Call your local BRP dealership
25 529014800 Socket Wrench 21/26 mm
26 529000002 FORK WRENCH, 10/13 MM - Call your local BRP dealership
27 219704403 Was 412500100 Rope-Starter
28 529000060 Starter Grip This part replaces 529019400.
29 295000175 Socket Wrench 16/18 mm
30 529035582 ADJUSTMENT WRENCH - Call your local BRP dealership
31 520000713 SOCKET 16MM - Call your local BRP dealership
32 520000842 Tool Kit Rack
33 520000528 Latch
34 520001059 Foam This part replaces 520000743.
35 520001061 Foam This part replaces 520000753.
36 520001062 Foam This part replaces 520000754.
37 520000695 WARNING DECAL, SECURITY - Call your local BRP dealership
38 520000697 WARNING DECAL, LOAD - Call your local BRP dealership
39 529035501 Spacing Tool
40 XXX Not Available As Spare Parts
41 XXX Not Available As Spare Parts
42 XXX Not Available As Spare Parts
43 XXX Not Available As Spare Parts
44 XXX Not Available As Spare Parts
45 XXX Not Available As Spare Parts
46 XXX Not Available As Spare Parts
47 XXX Not Available As Spare Parts
48 XXX Not Available As Spare Parts
