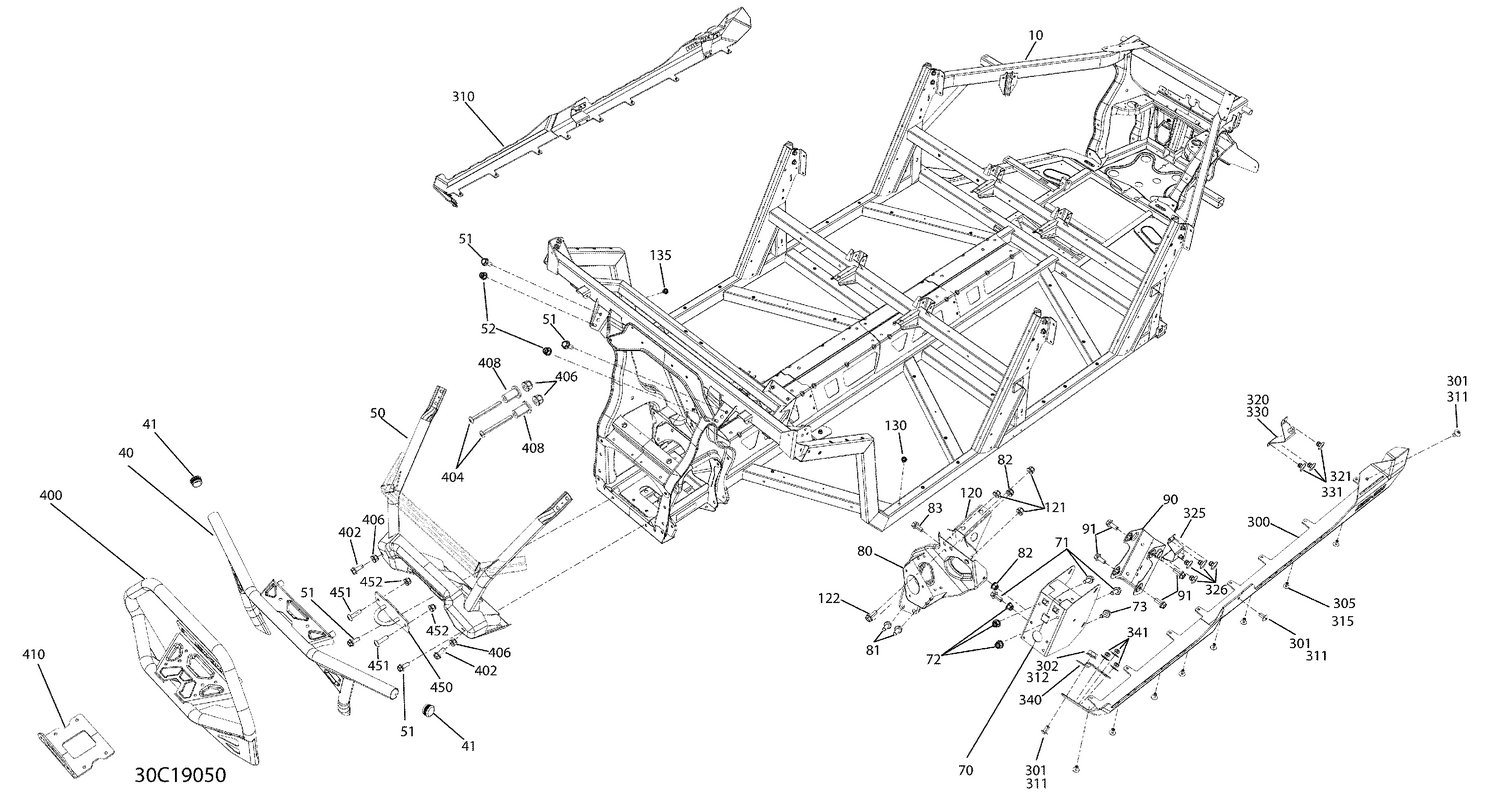

| Ref | Part Number | Description |
|---|
| 10 |
715005596 |
Frame Kit |
| 50 |
705207588 |
Deep Black, Front Bumper This part replaces 705203999. |
| 51 |
207582044 |
Hex. Flange Screw M8 X 20, Scotch Grip |
| 52 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 70 |
705206316 |
Plate |
| 71 |
207682044 |
Hex. Flange Screw M8 X 20 |
| 72 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 73 |
207582044 |
Hex. Flange Screw M8 X 20, Scotch Grip |
| 81 |
207582044 |
Hex. Flange Screw M8 X 20, Scotch Grip |
| 82 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 83 |
207682044 |
Hex. Flange Screw M8 X 20 |
| 90 |
705209190 |
Steering Column Support This part replaces 715005429. |
| 91 |
207582044 |
Hex. Flange Screw M8 X 20, Scotch Grip |
| 120 |
705205171 |
Shifting Module Support |
| 121 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 122 |
207682044 |
Hex. Flange Screw M8 X 20 |
| 130 |
250100199 |
Insert Half Hex Body M6 x 1.0 |
| 135 |
250100199 |
Insert Half Hex Body M6 x 1.0 |
| 300 |
705208717 |
Sunburst Yellow, LH Panel Guard This part replaces 705207217. |
| 301 |
250000746 |
Torx Truss Screw M8 X 16 |
| 302 |
233181414 |
Hex. Flange Nut M8 |
| 305 |
293150108 |
Pop Rivet 3/16” This part replaces 293150108. |
| 310 |
705208718 |
Sunburst Yellow, RH Panel Guard This part replaces 705207218. |
| 311 |
250000746 |
Torx Truss Screw M8 X 16 |
| 312 |
233181414 |
Hex. Flange Nut M8 |
| 315 |
293150108 |
Pop Rivet 3/16” This part replaces 293150108. |
| 320 |
705206342 |
LH Rock Slider Support |
| 321 |
293150104 |
Pop Rivet 3/16" |
| 325 |
705207220 |
Support Guard |
| 326 |
293150104 |
Pop Rivet 3/16" |
| 330 |
705206343 |
RH Rock Slider Support |
| 331 |
293150104 |
Pop Rivet 3/16" |
| 340 |
705206382 |
Rock Slider Front Support |
| 341 |
293150104 |
Pop Rivet 3/16" |
| 400 |
715004406 |
XMR FRONT BUMPER - Call your local BRP dealership This part replaces 705206368. |
| 402 |
207682044 |
Hex. Flange Screw M8 X 20 |
| 404 |
250000806 |
Torx Truss M8 X 90 |
| 406 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 408 |
705207754 |
Spacer This part replaces 705206398. |
| 410 |
705211620 |
Deep Black, Winch Support This part replaces 705206371. |
| 450 |
705206590 |
Painted Front Attachment |
| 451 |
250000886 |
Torx Screw M8 X 30 |
