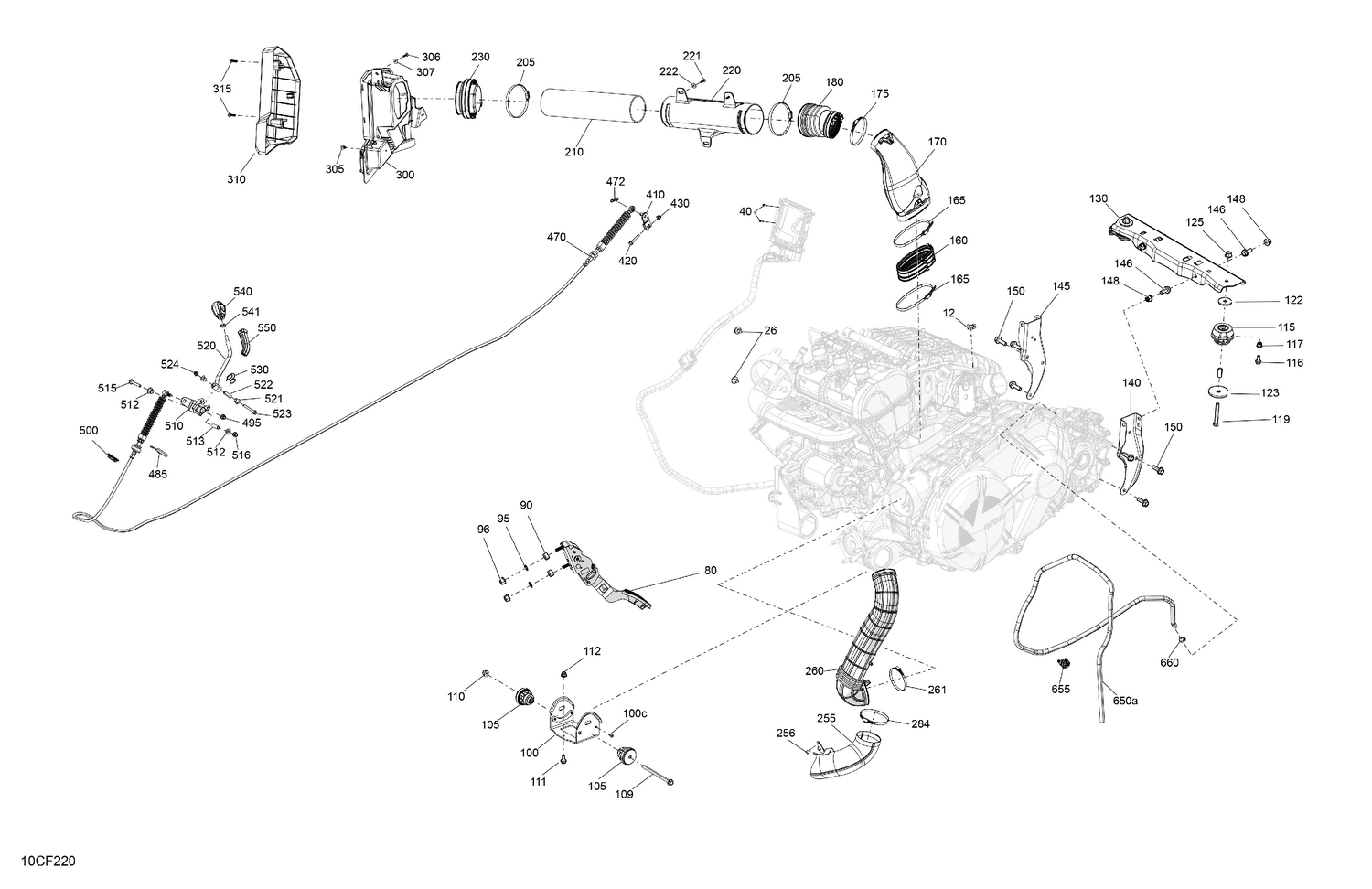

02- Engine - System
Parts (72)
| Ref | Part Number | Description |
|---|---|---|
| 12 | 293650214 | Norma Spring Clamp |
| 26 | 710008294 | Mount Dart |
| 40 | 241141660 | Hex. Flange Screw K40 X 16 |
| 80 | 707003503 | Accelerator Pedal |
| 90 | 707000848 | Bushing |
| 95 | 250100031 | Push Nut |
| 96 | 233081416 | Hex. Flange Nut M8 |
| 100c | 293150293 | Pop Rivet 3/16 X ,425 |
| 105 | 707003286 | Damper |
| 109 | 230603546 | Hex. Flange Screw M10 X 135 |
| 110 | 233201466 | Flange Elastic Nut M10 |
| 111 | 207662054 | Hex. Flange Screw M6 X 20 |
| 112 | 233261494 | Hex. Flange Elastic Nut M6 |
| 115 | 707003667 | Vibration Damper |
| 116 | 207662054 | Hex. Flange Screw M6 X 20 |
| 117 | 233261494 | Hex. Flange Elastic Nut M6 |
| 119 | 207687044 | Hex. Flange Screw M8 X 70 |
| 122 | 250200158 | Flat Washer M8 |
| 123 | 250200180 | Flat Washer M8 |
| 125 | 233081416 | Hex. Flange Nut M8 |
| 130 | 707003664 | Support |
| 140 | 707003681 | LH Rear Engine Support |
| 145 | 707003340 | RH Rear Engine Support |
| 146 | 207582054 | Hex Screw Washer Head M8 X 20 |
| 148 | 233281416 | Hex. Elastic Flange Nut M8 |
| 150 | 207582054 | Hex Screw Washer Head M8 X 20 |
| 160 | 706600474 | Adapter |
| 165 | 293650324 | Butterfly Gear Clamp |
| 170 | 706600475 | CVT Cooling Duct |
| 175 | 293650374 | Gear Clamp |
| 180 | 706600476 | Adapter |
| 205 | 293650324 | Butterfly Gear Clamp |
| 210 | 706600515 | Acoustic Insulation |
| 220 | 706600440 | CVT Cooling Duct |
| 221 | 250001110 | Torx Screw K50 X 25 |
| 222 | 250200025 | Washer M5 |
| 230 | 706600441 | Adapter |
| 255 | 707003532 | Ventilation Duct Weld |
| 256 | 207561044 | Flange Screw M6 X 10, Scotch Grip |
| 260 | 706600458 | CVT Cooling Duct |
| 261 | 293650374 | Gear Clamp |
| 284 | 293650374 | Gear Clamp |
| 300 | 706600431 | Air Inlet Box |
| 305 | 293150292 | Black, Pop Rivet 3/16 X ,550 |
| 306 | 250001110 | Torx Screw K50 X 25 |
| 307 | 250200025 | Washer M5 |
| 310 | 706600435 | RH Cover |
| 315 | 250000980 | Hex. Screw Pt K60 X 25 |
| 410 | 707003312 | Lever Weld |
| 420 | 207663554 | Hex. Flange Screw M6 X 35 |
| 430 | 233261494 | Hex. Flange Elastic Nut M6 |
| 470 | 707003274 | Shift Lever Cable |
| 472 | 250400109 | Hairpin Cotter |
| 485 | 707003450 | U Clip |
| 495 | 233281416 | Hex. Elastic Flange Nut M8 |
| 500 | 293720109 | Grommet |
| 510 | 707003369 | Lower Gearshift Lever |
| 512 | 293900001 | Venturi Bushing |
| 513 | 707003445 | Bushing |
| 515 | 207686044 | Hex. Flange Screw M8 x 60 |
| 516 | 233281416 | Hex. Elastic Flange Nut M8 |
| 520 | 707003288 | Shift Lever |
| 521 | 707000869 | Flanged Bushing |
| 522 | 707001376 | Bushing |
| 523 | 207665044 | Hex. Flange Screw M6 X 50 |
| 524 | 233261494 | Hex. Flange Elastic Nut M6 |
| 530 | 707000750 | Lever Arm Spring |
| 540 | 707003491 | Shift Lever Tip |
| 541 | 232180461 | Hexagonal Jam Nut M8 |
| 550 | 707003421 | Lever Trim |
| 650a | 219704534 | Hose 6.35MM ID |
| 655 | 293750083 | Cable Support |
