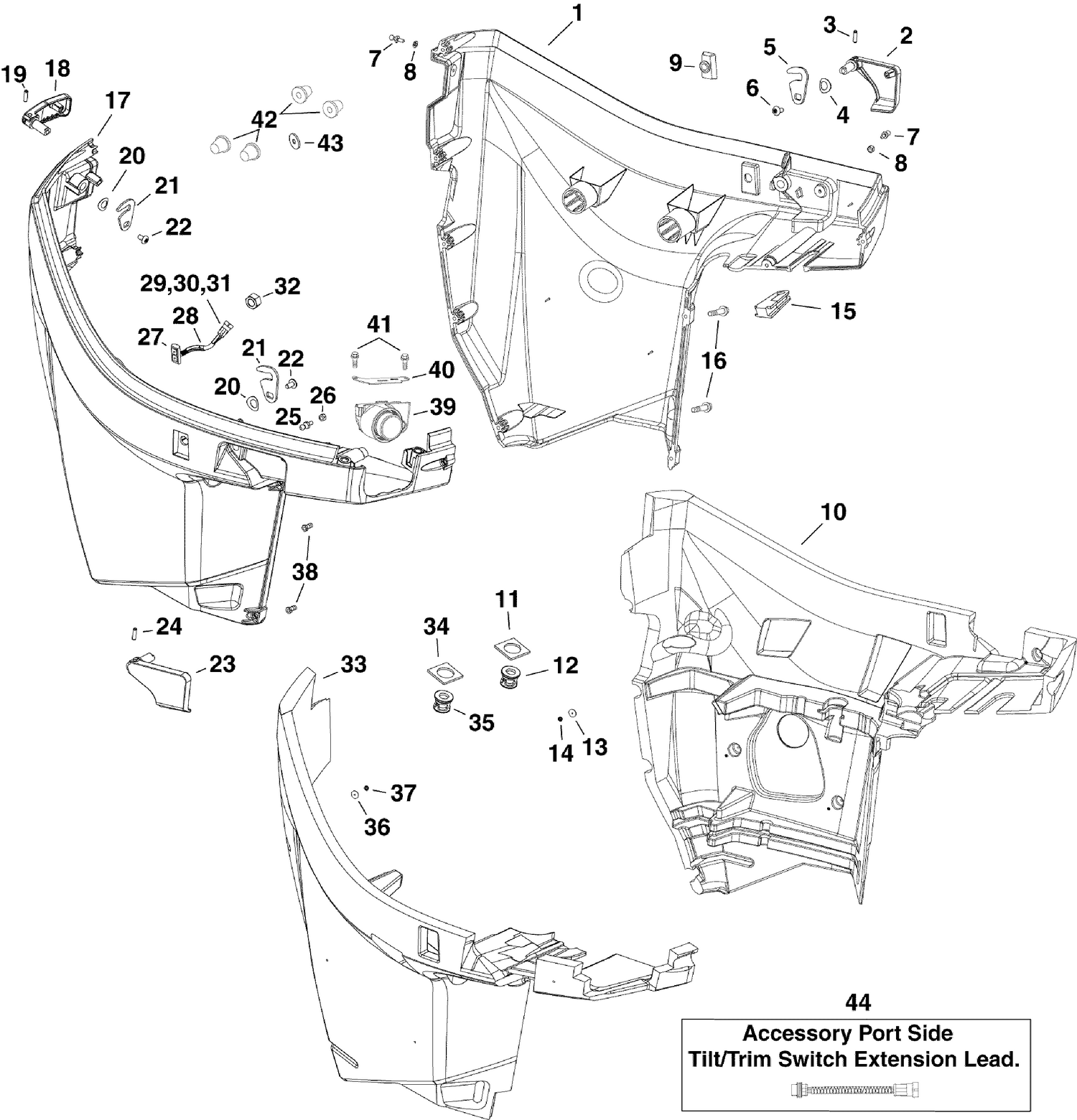

LOWER ENGINE COVER
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5008257 | LOWER COVER Assembly, Port This part replaces 5007550. |
| 1 | 5008259 | LOWER COVER Assembly, Port This part replaces 5007552. |
| 16 | 0351152 | SCREW, Port cover to starboard cover |
| 17 | 5008258 | LOWER COVER Assembly, Starboard This part replaces 5007551. |
| 17 | 5008260 | LOWER COVER Assembly, Starboard This part replaces 5007553. |
| 39 | 0351277 | GROMMET, Fuel & electric |
| 40 | 0351463 | BRACKET, Grommet to lower cover |
| 42 | 0349557 | MOUNT |
| 43 | 0349556 | Washer |
