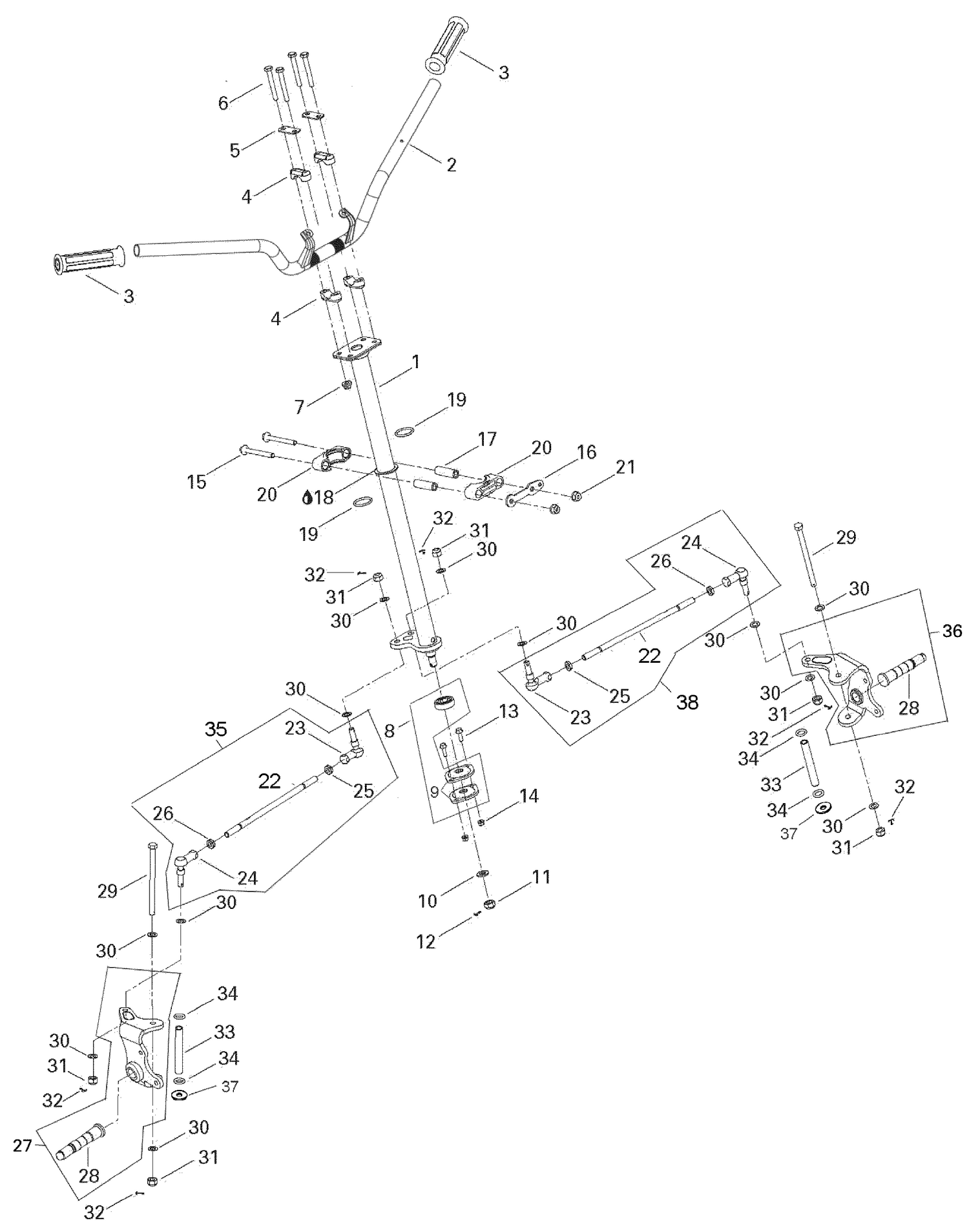

07- Steering System
Parts (37)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 709400231 | MAIN TUBE - Call your local BRP dealership |
| 2 | A53100179001 | BAR - Call your local BRP dealership |
| 3 | A53165179000 | GRIP - Call your local BRP dealership |
| 4 | 709400919 | Steering Support This part replaces 506151622. |
| 5 | 709400509 | Stiffner This part replaces 506151196. |
| 6 | 207085544 | Hex. Screw M8 X 55 |
| 7 | 233281416 | Hex. Elastic Flange Nut M8 |
| 8 | 709400439 | Ball Bearing This part replaces 709400224. |
| 9 | Not | Available As Spare Part - Thrust Washer |
| 10 | 234021410 | Flat Washer 12 mm |
| 11 | A9035012000G | Hexagonal Nut M12 This part replaces A9035012000. |
| 12 | 211400017 | Cotter Pin |
| 13 | 207662044 | Hex. Flange Screw M6 X 20 |
| 14 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 15 | 207687044 | Hex. Flange Screw M8 X 70 |
| 16 | 709400053 | STOPPER PLATE - Call your local BRP dealership |
| 17 | 709400072 | BUSHING - Call your local BRP dealership |
| 18 | 293550010 | Synthetic Grease, 400 G |
| 19 | 293300068 | O-Ring |
| 20 | 709400471 | Half Bushing This part replaces 709400052. |
| 21 | 233281414 | Hex. Flange Elastic Nut M8 |
| 22 | 715900006 | Tie Rod |
| 23 | 709400148 | RH Ball Joint |
| 24 | 709400149 | LH Ball Joint |
| 25 | 732610010 | RH Threaded Hex. Jam Nut M10 |
| 26 | 250100016 | LH Threaded Hex. Jam Nut M10 |
| 27 | 709400109 | RH Knuckle |
| 28 | Not | Available As Spare Part - Wheel Axle |
| 29 | 709400150 | AXLE SCREW M10 X 145 - Call your local BRP dealership |
| 30 | 503175800 | Washer |
| 31 | 232501416 | Elastic Flange Nut M10 |
| 32 | 211400013 | Cotter Pin |
| 33 | 709400110 | Pivot Bushing |
| 34 | 414549700 | O-RING - Call your local BRP dealership |
| 35 | Not | Available As Spare Part - Tie Rod Ass'y |
| 36 | 709400108 | LH Knuckle |
| 37 | A941051030008 | WASHER - Call your local BRP dealership |
