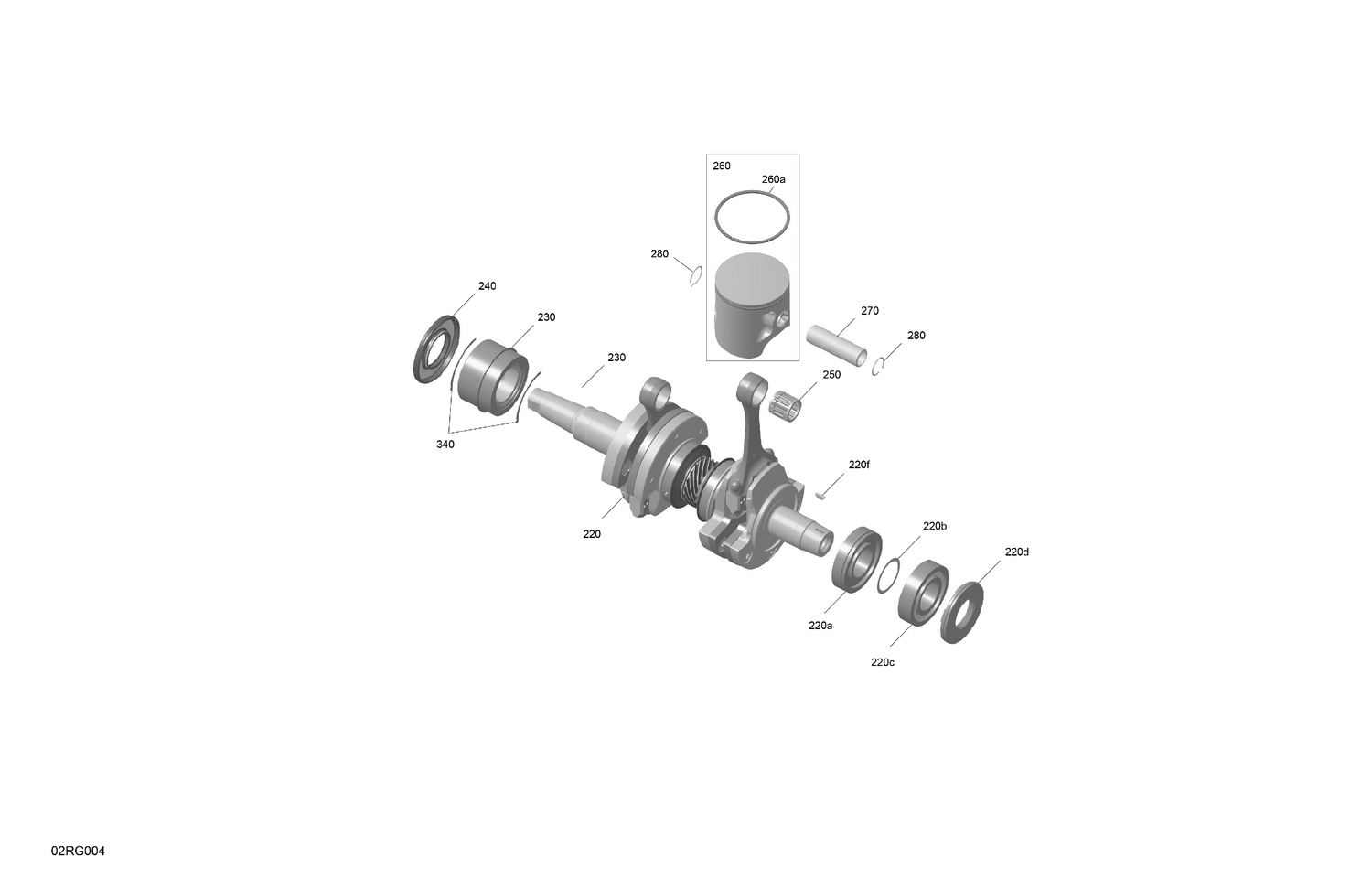

01- ROTAX - Crankshaft and Pistons
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 220a | 420832178 | Bearing |
| 220b | 420927401 | Shim 35.4/43/0.3 |
| 220c | 420832575 | Ball Bearing 6207 |
| 220d | 420831955 | Oil Seal |
| 220f | 420246015 | Woodruff Key |
| 230 | 420832130 | Roller Bearing |
| 240 | 420931284 | Oil Seal |
| 250 | 420832030 | Needle Bearing |
| 260a | 420815416 | Semi-Trapez Ring |
| 270 | 420916480 | Piston Pin |
| 280 | 420845467 | Piston Circlip |
