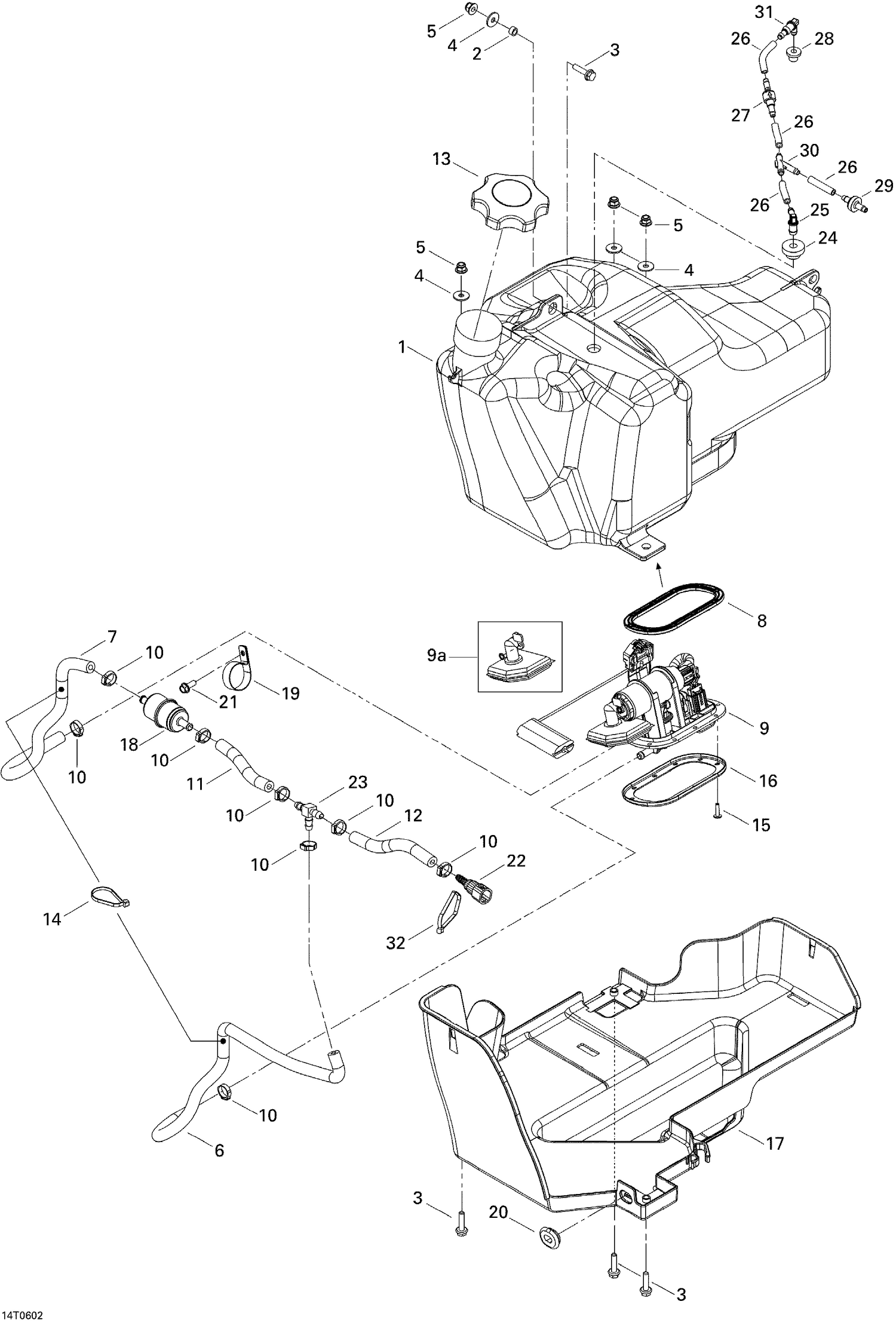

02- Fuel System
Parts (32)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 709000084 | Fuel Tank |
| 2 | 293900104 | Bushing This part replaces 293900029. |
| 3 | 207662544 | Hex. Flange Screw M6 X 25 |
| 4 | 250200082 | Flat Washer This part replaces 391302000. |
| 5 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 6 | 513033126 | FUEL HOSE, 7.94 MM - Call your local BRP dealership |
| 7 | 513033126 | FUEL HOSE, 7.94 MM - Call your local BRP dealership |
| 8 | 709000540 | Joint Etanche *Gasket This part replaces 709000109. |
| 9 | 703500771 | Fuel Pump |
| 9a | Not | Available As Spare Part - Filter Kit |
| 10 | 293650046 | Oetiker Clamp |
| 11 | 513033126 | FUEL HOSE, 7.94 MM - Call your local BRP dealership |
| 12 | 513033126 | FUEL HOSE, 7.94 MM - Call your local BRP dealership |
| 13 | 513033025 | Fuel Tank Cap |
| 14 | 414115200 | Tie-Rap 180 mm |
| 15 | 250000750 | Torx Screw M4 X 16 This part replaces 250000242. |
| 16 | 709000170 | Pump Ring This part replaces 709000119. |
| 17 | 709000207 | TANK PROTECTOR - Call your local BRP dealership This part replaces 709000091. |
| 18 | 513034047 | Fuel Filter This part replaces 709000100. |
| 19 | 513033047 | Open Clamp |
| 20 | 705005156 | Oval Washer |
| 21 | 210261650 | Hex. Flange Screw M6 X 16 This part replaces 210261680. |
| 22 | 709000125 | Female Quick Fitting Ass'y |
| 23 | 293710061 | T-FITTING - Call your local BRP dealership |
| 24 | 293830136 | Grommet |
| 25 | 414580700 | Male Connector |
| 26 | 219704360 | Hose 6 Mm 15000Mm Long |
| 27 | 275500505 | Check Valve |
| 28 | 293720029 | Grommet |
| 29 | 275500398 | Check Valve |
| 30 | 293710059 | Y-Fitting |
| 31 | 414580600 | Elbow Male Connector |
