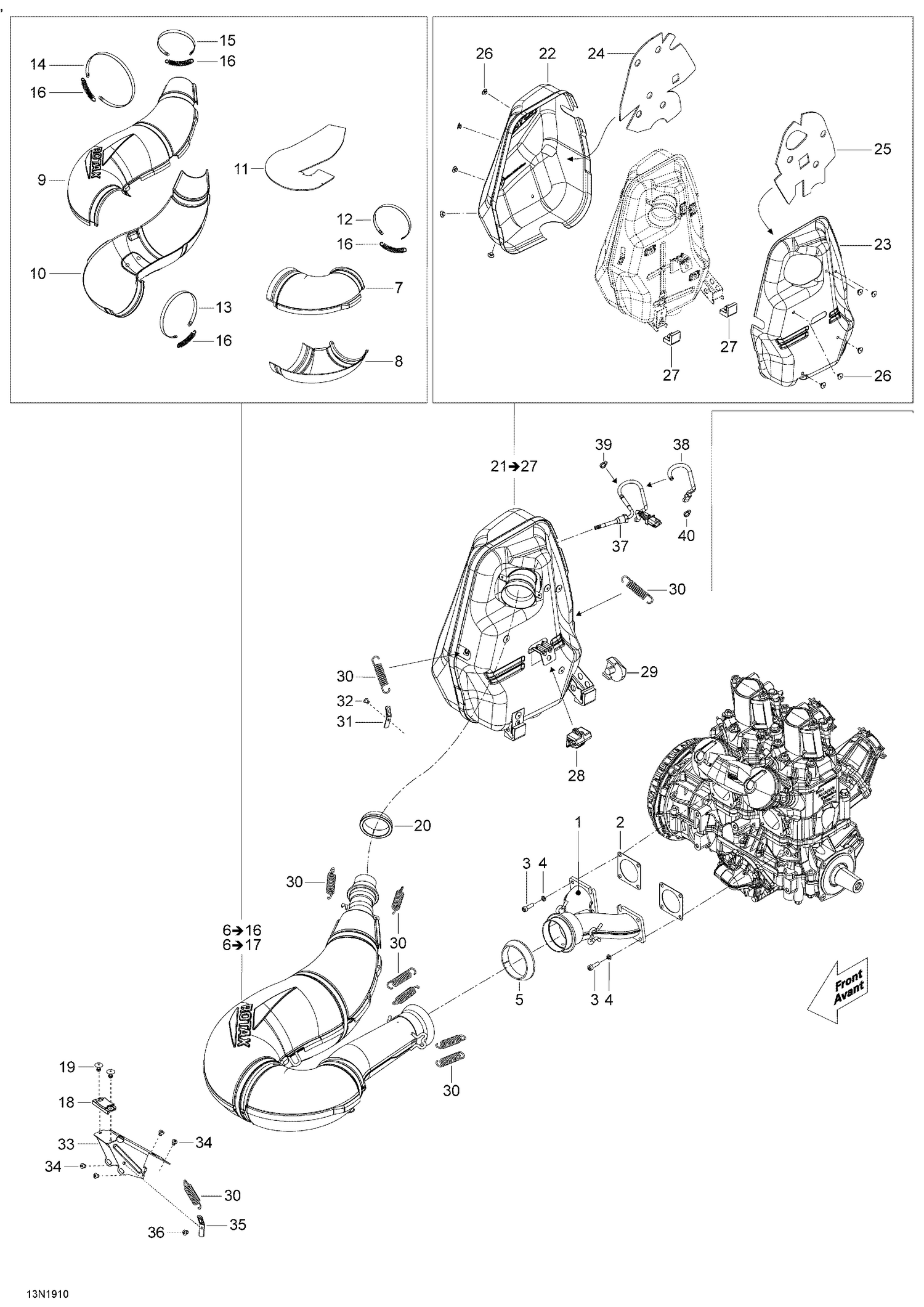

01- Exhaust - 800R E-TEC
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420673374 | Exhaust Manifold |
| 2 | 420430482 | Gasket |
| 3 | 250000414 | Socket Head Screw M8 X 22 |
| 4 | 20072 | Washer |
| 5 | 514053487 | Exhaust Gasket |
| 6 | 514055019 | Tuned Pipe Ass'y |
| 18 | 514054275 | Bumper |
| 19 | 293150103 | Pop Rivet 3/16" |
| 20 | 514053812 | Exhaust Gasket |
| 22 | 514054986 | RH DEFLECTOR - Call your local BRP dealership |
| 23 | 514055029 | LH DEFLECTOR - Call your local BRP dealership |
| 24 | 514054711 | RH Insulating Wool |
| 25 | 514054299 | LH Insulating Wool |
| 26 | 390910000 | Pop Rivet 3/16” |
| 27 | 514054529 | Lower Stopper |
| 28 | 514054606 | Upper Stopper |
| 29 | 514055070 | Rubber Bumber |
| 30 | 415107100 | Spring |
| 31 | 514054974 | Spring Bracket, 5mm hole |
| 32 | 390402200 | Pop Rivet 3/16" |
| 550 | 514055113 | Spring Bracket |
