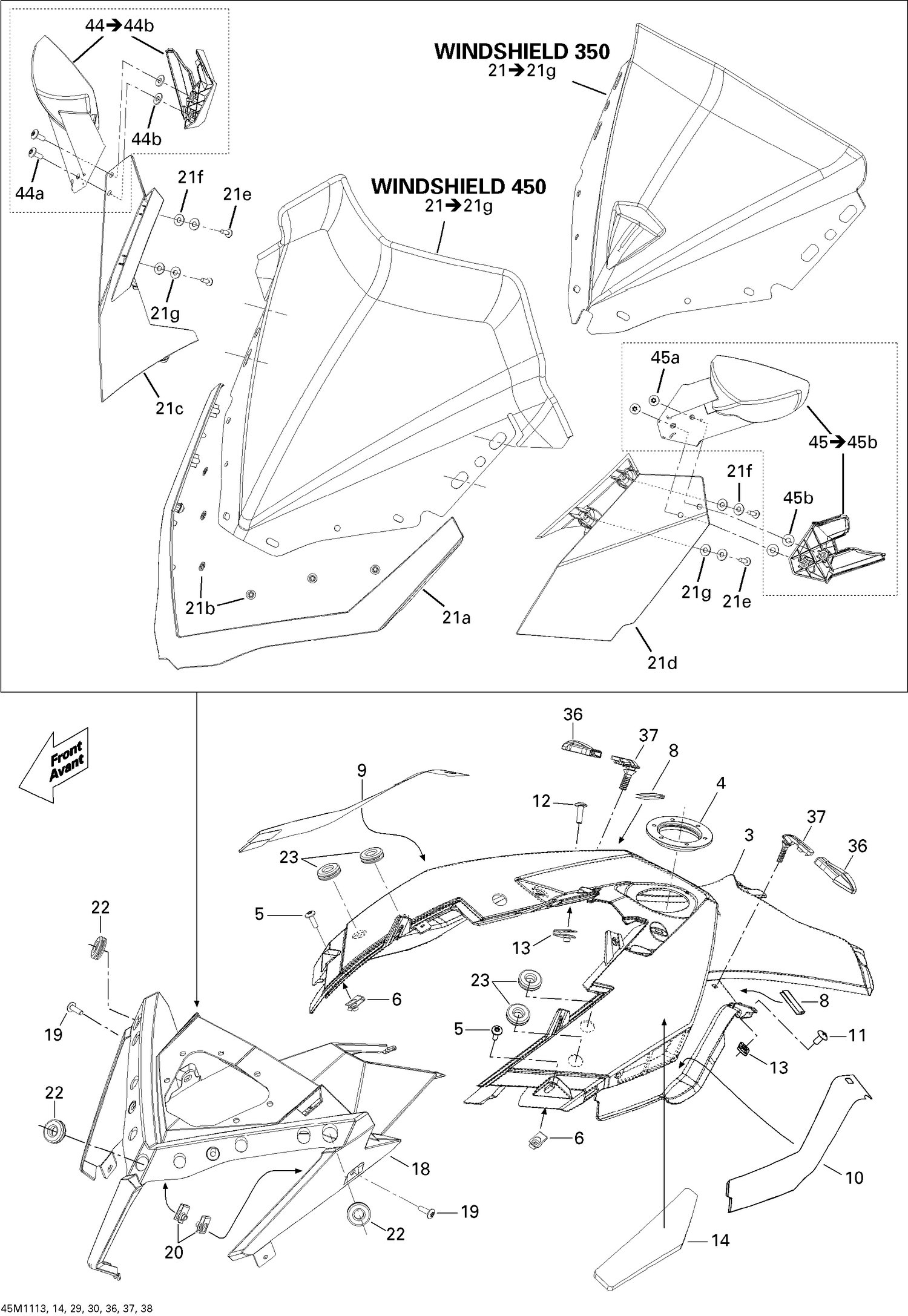

| Ref | Part Number | Description |
|---|
| 3 |
517304496 |
CONSOLE B-160 - Call your local BRP dealership |
| 4 |
517304518 |
Console Nut |
| 5 |
250000722 |
Torx Screw M6 X 20 This part replaces 250000128. |
| 6 |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250100113. |
| 8 |
XXX |
Not Available As Spare Parts |
| 9 |
XXX |
Not Available As Spare Parts |
| 10 |
XXX |
Not Available As Spare Parts |
| 11 |
250000721 |
Torx Truss Screw M6 X 16 This part replaces 250000129. |
| 12 |
250000722 |
Torx Screw M6 X 20 This part replaces 250000128. |
| 13 |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250100113. |
| 14 |
517304882 |
Foam |
| 18 |
517304578 |
Gauge Support |
| 19 |
250000722 |
Torx Screw M6 X 20 This part replaces 250000128. |
| 20 |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250100113. |
| 21 |
517304766 |
Windshield 450 |
| 21a |
517303607 |
Windshield Support |
| 21b |
732610072 |
Push Nut |
| 21c |
517303791 |
RH Air Deflector |
| 21d |
517303792 |
LH Air Deflector |
| 21e |
250000720 |
Torx Screw K50 X 16 This part replaces 250000146. |
| 21f |
250200025 |
Washer M5 |
| 21g |
250200024 |
Rubber Washer 5 mm |
| 22 |
517303756 |
Grommet |
| 23 |
517303756 |
Grommet |
| 36 |
860200239 |
Black Latch Kit |
| 37 |
517303981 |
Panel Latch |
| 44 |
517305101 |
LH Mirror Ass'y This part replaces 517304146. |
| 44a |
250000721 |
Torx Truss Screw M6 X 16 This part replaces 250000129. |
| 44b |
250200024 |
Rubber Washer 5 mm |
| 45 |
517305100 |
RH Mirror Ass'y This part replaces 517304145. |
| 45a |
250000721 |
Torx Truss Screw M6 X 16 This part replaces 250000129. |
