| Ref | Part Number | Description |
|---|
| 1 |
0306049 |
SCREW |
| 3 |
0387432 |
CRANKCASE HEAD BRG. ASSY. |
| 5 |
0317831 |
Circlip |
| 6 |
0305123 |
O RING |
| 8 |
0387820 |
CRANKSHAFT ASSY. |
| 9 |
0319244 |
JOINT ANNULAIRE |
| 10 |
0317762 |
PALTE,Lower bearing |
| 10 |
704909038 |
Emblem Logo BRP 20 MM UV |
| 11 |
0385503 |
BEARING , Ball |
| 12 |
0396610 |
CRANKCASE HEAD ASSY. This part replaces 0385502. |
| 14 |
0317763 |
SCREW & SEAL, Plate |
| 15 |
5007190 |
BEARING Assembly, Center main This part replaces 0387041. |
| 15 |
704909040 |
Emblem BRP Logo 48 MM UV |
| 16 |
0308213 |
RETAINING RING |
| 17 |
0395627 |
BEARING & RETAINER This part replaces 0385482. |
| 18 |
5006383 |
CONNECTING ROD This part replaces 0385911. |
| 20 |
0387139 |
BEARING SET,Conn.rod |
| 21 |
0352960 |
BEARING RACE, Center main This part replaces 0320499. |
| 22 |
0394930 |
RING SET, Standard This part replaces 0385661. |
| 22 |
0396504 |
RING SET, .030 O.S This part replaces 0385663. |
| 22 |
0439001 |
RING SET, 0.020 in. O.S. This part replaces 0385662. |
| 23 |
0387962 |
PISTON,.020 o.s. |
| 23 |
5006658 |
Pstn&Ring Kit This part replaces 0387959. |
| 23 |
5006669 |
Pstn&Ring Kit .030 This part replaces 0387963. |
| 24 |
0327861 |
Wrist Pin This part replaces 0317818. |

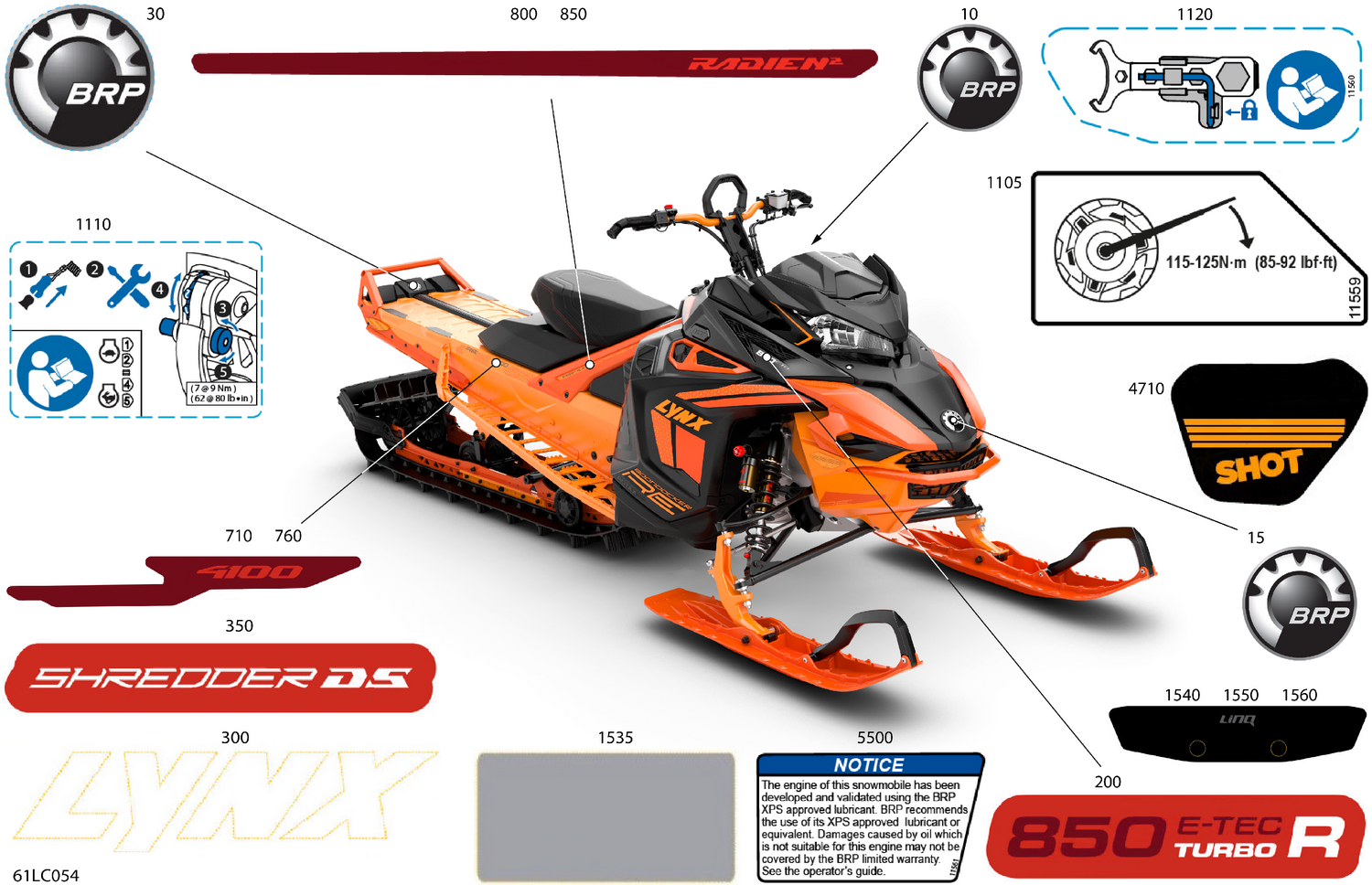

| 30 |
704909039 |
Emblem BRP Logo 35 MM UV |
| 200 |
516011081 |
Decal Moon Engine |
| 300 |
516011088 |
LH/RH Panel Decal |
| 350 |
516011090 |
LH/RH Panel Decal |
| 710 |
516011095 |
Decal |
| 760 |
516011096 |
Decal |
| 800 |
516011073 |
LH Cross Member Decal |
| 850 |
516011074 |
RH Cross Member Decal |
| 1105 |
516011559 |
Clutch Instruction Label |
| 1110 |
516011437 |
Ramp Instruction Label |
| 1120 |
516011560 |
Tool Instruction Label |
| 1535 |
516009954 |
Protective Decal |
| 1540 |
516011681 |
Decal Q-Link |
| 1550 |
516011681 |
Decal Q-Link |
| 1560 |
516011681 |
Decal Q-Link |
| 4710 |
516008187 |
Decal Shot |
