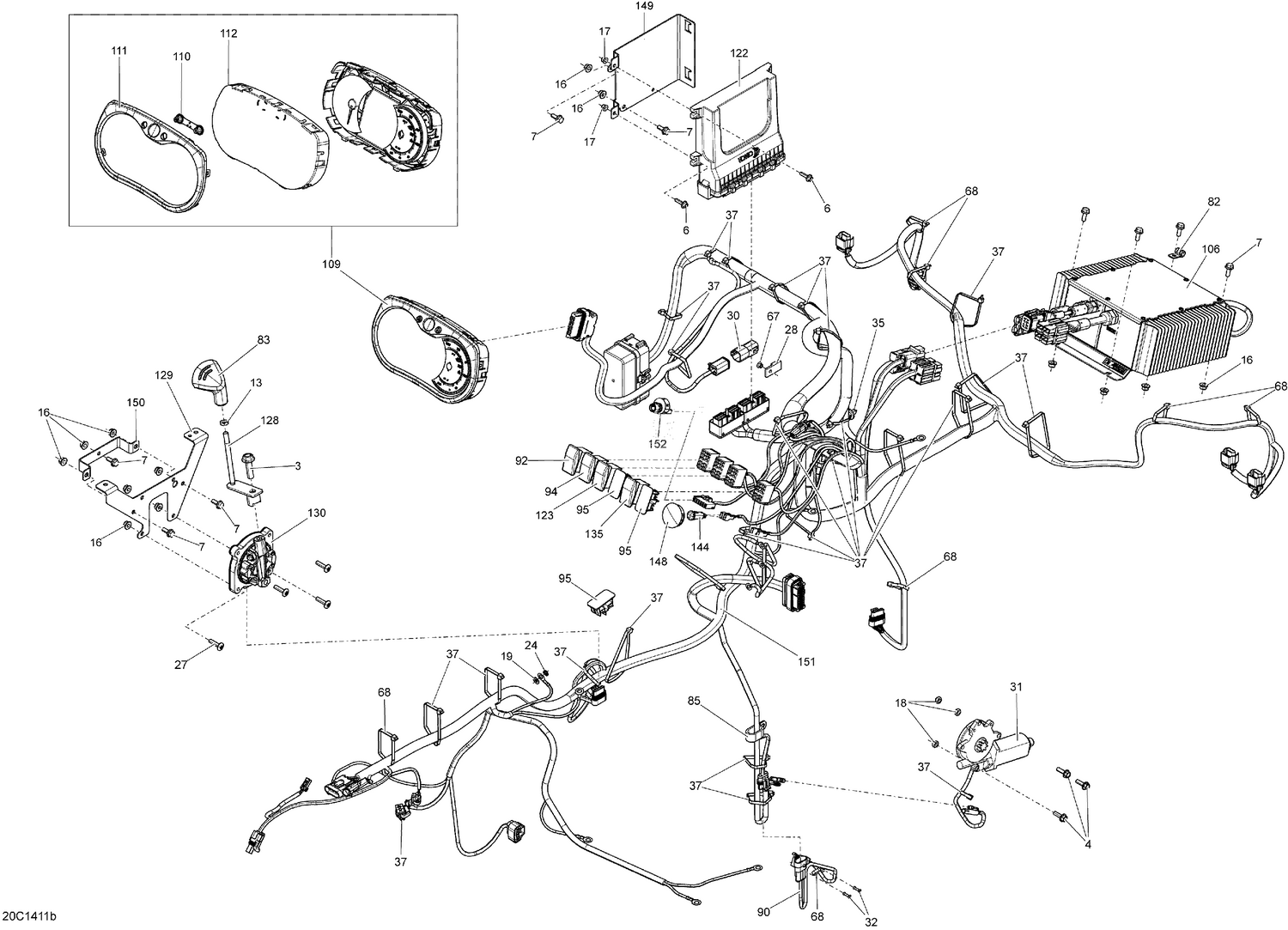

10- Electrical System Main Harness_20C1411b
Parts (39)
| Ref | Part Number | Description |
|---|---|---|
| 3 | 207503544 | Hex. Flange Screw M10 X 35 |
| 4 | 207562034 | Hex. Flange Screw M6 X 20, Scotch Grip |
| 6 | 207652044 | Hex.Flange Screw M5 X 20 |
| 7 | 207661644 | Hex. Flange Screw M6 X 16 |
| 13 | 232180491 | Hex. Jam Nut M8 |
| 16 | 233061414 | Hex. Flange Nut M6 |
| 17 | 233251434 | Flange Elastic Nut M5 |
| 18 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 19 | 234061410 | Flat Washer 6 mm |
| 24 | 234461608 | External Serrated Lock Washer 6 mm |
| 27 | 207563034 | Hex. Flange Screw M6 X 30, Scotch Grip This part replaces 207663034. |
| 28 | 270000141 | Clip |
| 30 | 278002704 | Diagnostic Connector |
| 31 | 278002579 | Windshield Motor |
| 32 | 293150150 | Pop Rivet |
| 35 | 293730040 | Mount Dart This part replaces 293730018. |
| 37 | 293750008 | Tie Wrap 368 mm |
| 67 | 390402400 | Pop Rivet 3/16" |
| 68 | 414115200 | Tie-Rap 180 mm |
| 82 | 293650256 | Clamp This part replaces 705600459. |
| 83 | 707000284 | Lever Handle |
| 85 | 709000057 | Open Clamp |
| 90 | 710001379 | Brake Pressure Switch Ass'y |
| 95 | 710007173 | Plug Carling This part replaces 710001999. |
| 106 | 710002805 | CHARGER, 48 VOLTS - Call your local BRP dealership |
| 110 | 415129355 | Speedometer Button |
| 111 | 415129348 | Gauge Ring |
| 112 | 415129349 | Lens |
| 122 | 710003777 | VCM MODULE - Call your local BRP dealership |
| 123 | 710002879 | SWITCH - Call your local BRP dealership |
| 128 | 710002929 | UPPER SHIFTER ARM - Call your local BRP dealership |
| 129 | 710002932 | Potentiometer Support |
| 130 | 710002933 | SHIFTER POTENTIOMETER - Call your local BRP dealership |
| 135 | 710002958 | DIFFERENTIAL SWITCH - Call your local BRP dealership |
| 144 | 710003222 | Pilot Lamp |
| 148 | 710003284 | Plug |
| 149 | 710003323 | Support |
| 150 | 710003451 | Potentiomete Stifner |
| 151 | 710003770 | WIRING HARNESS ASSY - Call your local BRP dealership |
