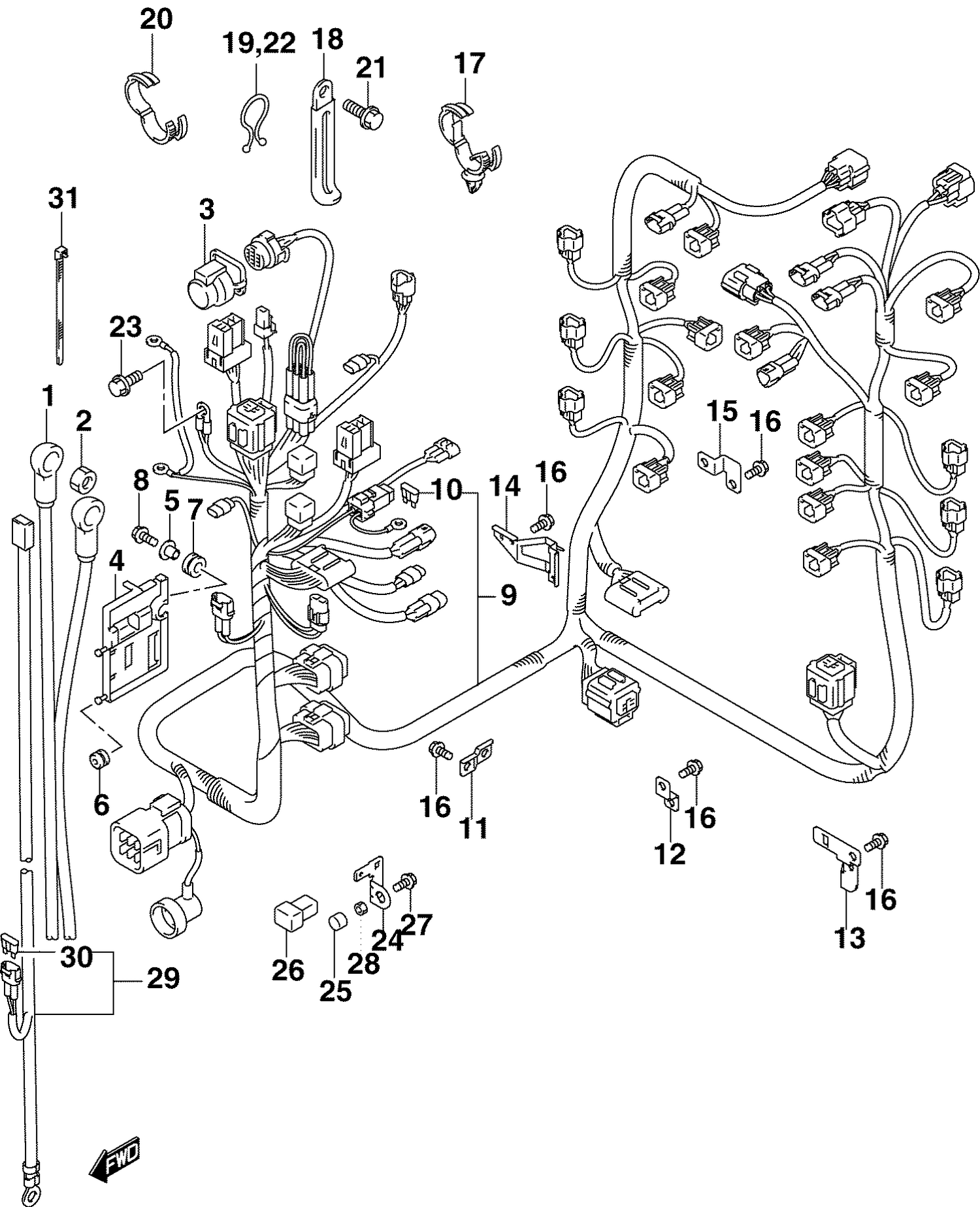

| Ref | Part Number | Description |
|---|
| 1 |
5035096 |
BATTERY CABLE |
| 3 |
5030800 |
CAP |
| 4 |
5035101 |
HOLDER, CONNECTOR |
| 5 |
5030471 |
SPACER |
| 6 |
5033020 |
BUSHING |
| 7 |
5035320 |
CUSHION, CONNECTOR HOLDER |
| 9 |
5035100 |
HARNESS ASSY, WIRING (200HP) |
| 9 |
5035521 |
HARNESS ASSY, WIRING (225HP) |
| 11 |
5035102 |
BRACKET, HARNESS |
| 12 |
5035103 |
BRACKET, HARNESS |
| 13 |
5035104 |
BRACKET, HARNESS |
| 14 |
5035105 |
BRACKET, HARNESS |
| 15 |
5035106 |
BRACKET, HARNESS |
| 17 |
5031279 |
CLAMP, HARNESS |
| 18 |
5030135 |
BRIDE |
| 19 |
5031076 |
CLAMP, FUEL PUMP LEAD |
| 20 |
5031905 |
CLAMP |
| 22 |
5031076 |
CLAMP, FUEL PUMP LEAD |
| 24 |
5033835 |
TERMINAL, MAIN FUSE |
| 25 |
5030529 |
CAP |
| 26 |
5033633 |
FUSE (60A) |
| 27 |
5035641 |
BOLT, FUSE TERMINAL |
| 28 |
5031020 |
NUT |
| 29 |
5035107 |
BATTERY SUB CABLE |
