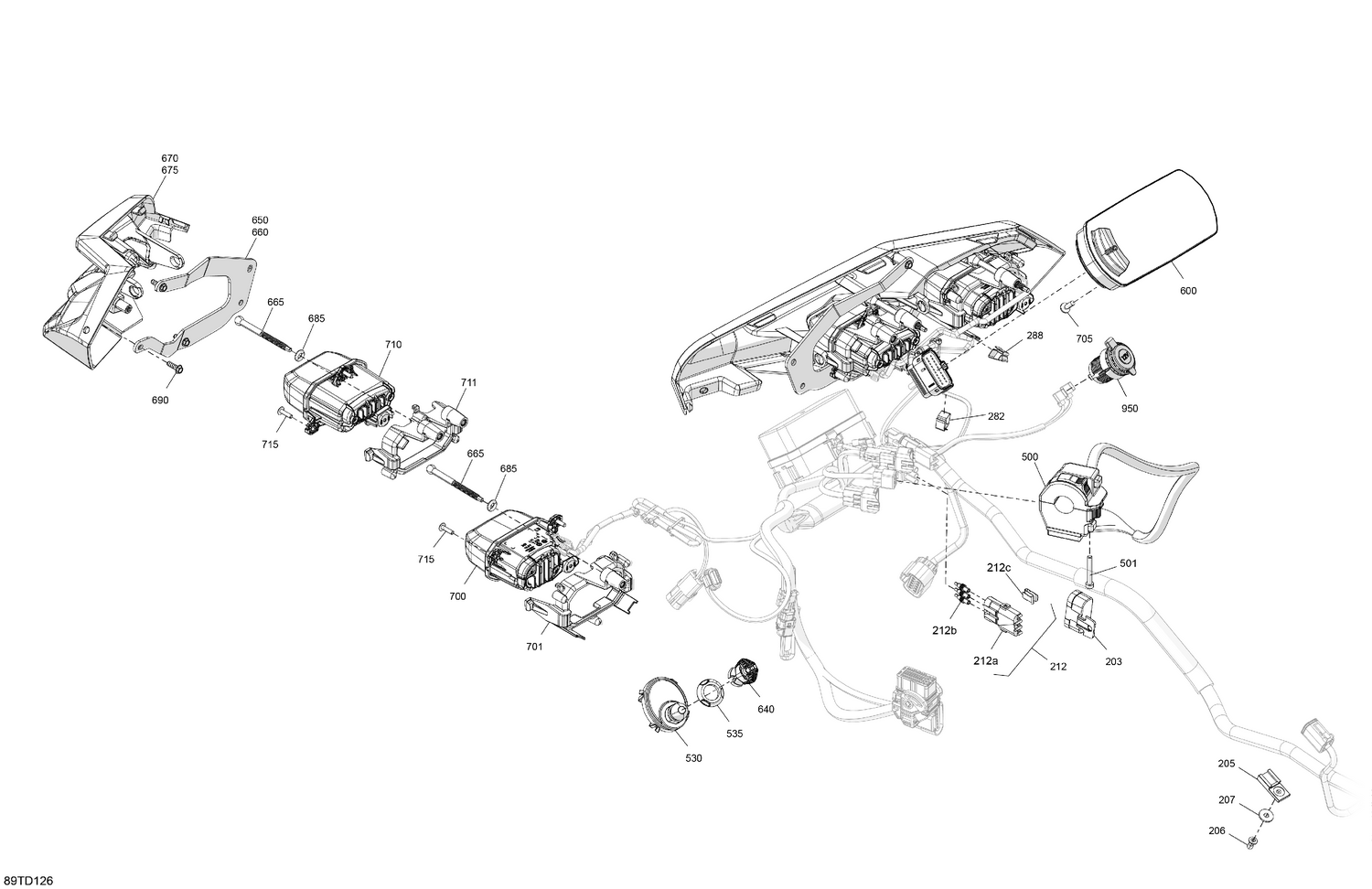

08- Electric - Front Section
Parts (28)
| Ref | Part Number | Description |
|---|---|---|
| 203 | 710005760 | DPS Connector Cap |
| 205 | 270000141 | Clip |
| 206 | 390402300 | Pop Rivet 3/16" |
| 207 | 391301600 | Washer |
| 212a | 278000281 | Female Terminal Housing, 3 Circuits |
| 212b | 278000216 | Wire Seal |
| 212c | 710000992 | Clip |
| 282 | 710010204 | Clip |
| 288 | 710010204 | Clip |
| 500 | 710006134 | Switch Handle |
| 501 | 205053588 | Socket Head Screw M5 X 35 |
| 530 | 515179305 | Terminal DESS One Wire |
| 535 | 278004274 | Specialized Nut |
| 600 | 710008298 | Multifunction Compact Gauge |
| 640 | 515179384 | Grey, Can-Am DESS Key |
| 650 | 710008461 | LH Front Headlight Support |
| 660 | 710008462 | RH Front Headlight Support |
| 665 | 710005837 | Ajustment Screw |
| 670 | 705016529 | Trim_Headlight Fl |
| 675 | 705016532 | RH Front Headlight Trim |
| 685 | 293300192 | O-Ring |
| 690 | 241151640 | Hex. Flange Screw K50 X 2.24 X 16 |
| 700 | 710008088 | Low Beam Light |
| 701 | 710008396 | Exterior Headlight Support |
| 705 | 250000720 | Torx Screw K50 X 16 |
| 710 | 710006910 | HIgh Beam Light |
| 711 | 710008394 | Interior Headlight Support |
| 715 | 250000759 | Torx Truss Pt K40 X 16 |
