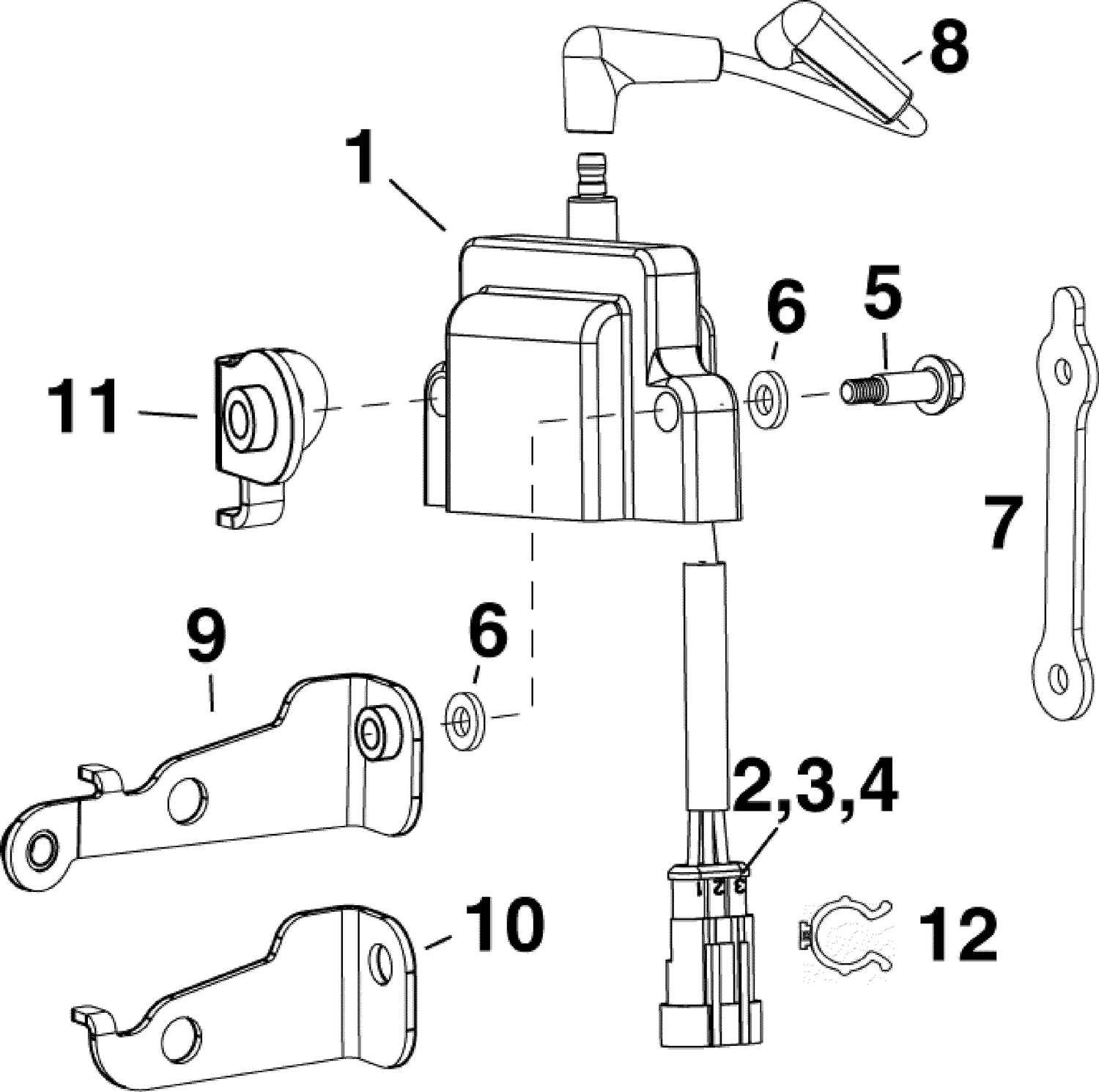

IGNITION COIL
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0587275 | IGNITION COIL This part replaces 0586980. |
| 5 | 0353545 | SCREW, Coil to bracket |
| 5 | 0354614 | SCREW, Ignition coil (Upper) |
| 6 | 0353540 | WASHER, Ign coil screw (rubber) |
| 7 | 0354615 | STRAP, Upper coil mounting |
| 8 | 5007408 | HIGH TENSION LEAD Assembly |
| 9 | 0353422 | BRACKET, Ign coil mounting, middle |
| 10 | 0353646 | BRACKET, Ign coil mounting, lower |
| 11 | 0353431 | BRACKET, Ign coil to cylinder head |
| 12 | 3011450 | ATTACHE, connecteur |
