| Ref | Part Number | Description |
|---|
| 3 |
0396031 |
RETAINER & LINK ASSEMBLY This part replaces 0390256. |
| 4 |
0511949 |
BORNIER |
| 5 |
0329182 |
VIS, borne This part replaces 0327785. |
| 6 |
0581778 |
REDRESSEUR |
| 10 |
516010651 |
BRP Logo 20 MM x 2 MM |
| 11 |
0583387 |
SENSOR ASSEMBLY This part replaces 0581655. |
| 14 |
0511482 |
SLEEVE |
| 15 |
0303212 |
VIS, collier & capot |
| 15 |
704909040 |
Emblem BRP Logo 48 MM UV |
| 16 |
0307190 |
SCR., Clamp, 10-24 x 1-1/4 |
| 17 |
0511460 |
VIS, dispositif de retenue |
| 18 |
0511458 |
COLLIER, fils |
| 19 |
0511459 |
CACHE, fils |
| 21 |
0581670 |
CHARGE COIL This part replaces 0581635. |
| 26 |
0581651 |
STATOR ASSEMBLY |
| 30 |
704909040 |
Emblem BRP Logo 48 MM UV |
| 31 |
0322549 |
DISPOSITIF DE RETENUE, bouchon |
| 32 |
0306407 |
LOCCKWASHER,Cover latch |
| 34 |
0326876 |
CAM, Throttle control |
| 35 |
0322435 |
ROULEMENT, plaque d'allumage vers support |
| 36 |
0322102 |
PLATE, Support |
| 37 |
0581927 |
POER PACK ASSY |
| 40 |
0511449 |
COMMECTOR, Coil to power pack |
| 42 |
0582106 |
COIL ASSY |
| 46 |
0319547 |
SCREW, Clamp & ground lead |
| 49 |
0314576 |
SCREW |
| 51 |
0331036 |
VIS, attache de palier This part replaces 0320468. |
| 52 |
0328726 |
SCREW (Use existing coil screw) This part replaces 0323796. |
| 57 |
0582365 |
H.T. LEAD ASSEMBLY, Spark plugs to ignition coil |

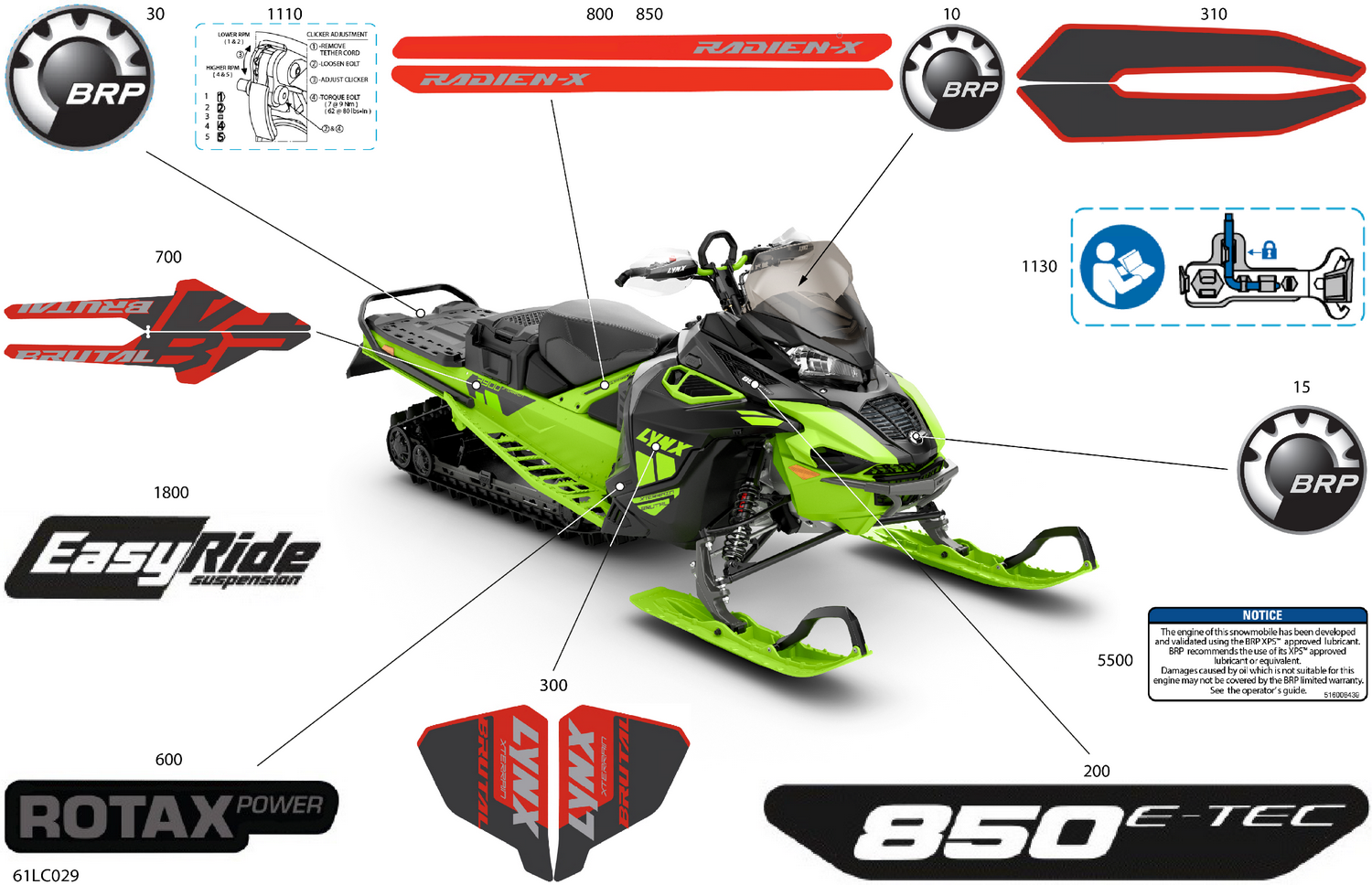

| 200 |
516009560 |
Upper Side Panel Decal 850 E-TEC |
| 300 |
516011104 |
LH/RH Panel Decal |
| 310 |
516011105 |
LH/RH Panel Decal |
| 600 |
516008760 |
Decal "Rotax Power" |
| 700 |
516011106 |
LH/RH Tunnel Decal |
| 800 |
516011107 |
LH Cross Member Decal |
| 850 |
516011108 |
RH Cross Member Decal |
| 1110 |
516009265 |
Ramp Clicker Decal |
| 1130 |
516011629 |
Tool Instruction Label |
| 1800 |
516008736 |
Black, WTS Decal |
| 0582021 |
0582021 |
PLATE ASSEMBLY COMPLETE |
| 0582029 |
0582029 |
CHARGE COIL & PLATE ASSY |
