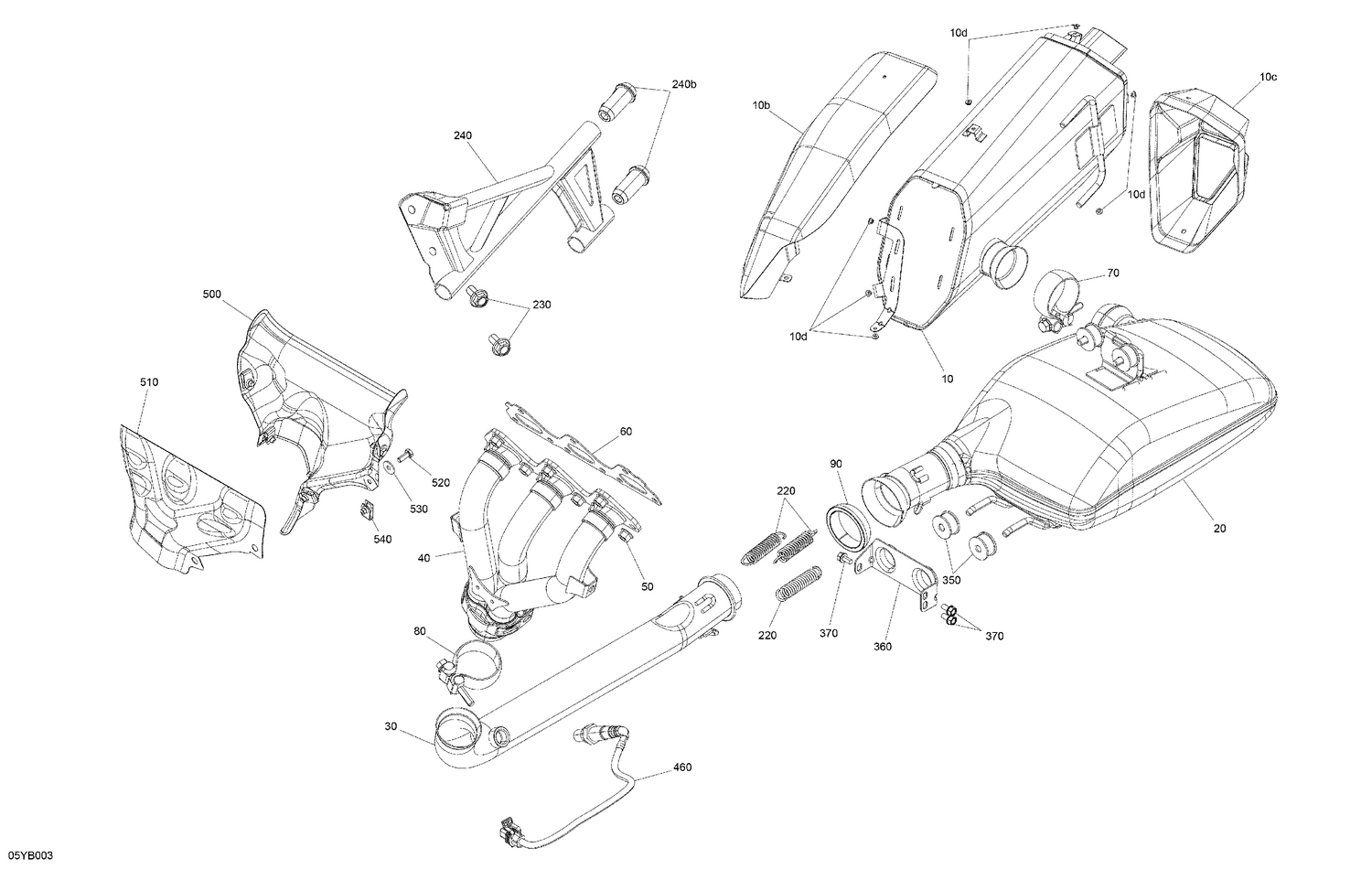

02- Engine - Exhaust
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 10d | 293150219 | Rivet-Pop 5/32 |
| 50 | 233081436 | Hex. Flange Nut |
| 60 | 707601985 | Exhaust Seal |
| 70 | 707600980 | Exhaust Clamp |
| 80 | 707600980 | Exhaust Clamp |
| 90 | 514054174 | Exhaust Gasket |
| 220 | 415107100 | Spring |
| 230 | 207502044 | Hex Flange Screw M10 X 20 |
| 240b | 293830167 | Rubber Bushing |
| 350 | 707600702 | Anti-Vibration Rubber |
| 370 | 210261250 | Hex. Flange Screw M6 X 12 |
| 460 | 707600872 | Oxygen Sensor |
| 500 | 707603641 | Heat Shield interior This part replaces 707601028. |
| 510 | 707603642 | Heat Shield Exterior This part replaces 707601504. |
| 520 | 207361660 | Hex. Screw M6 X 16, Scotch Grip |
| 530 | 234062600 | Flat Washer M6, Stainless |
