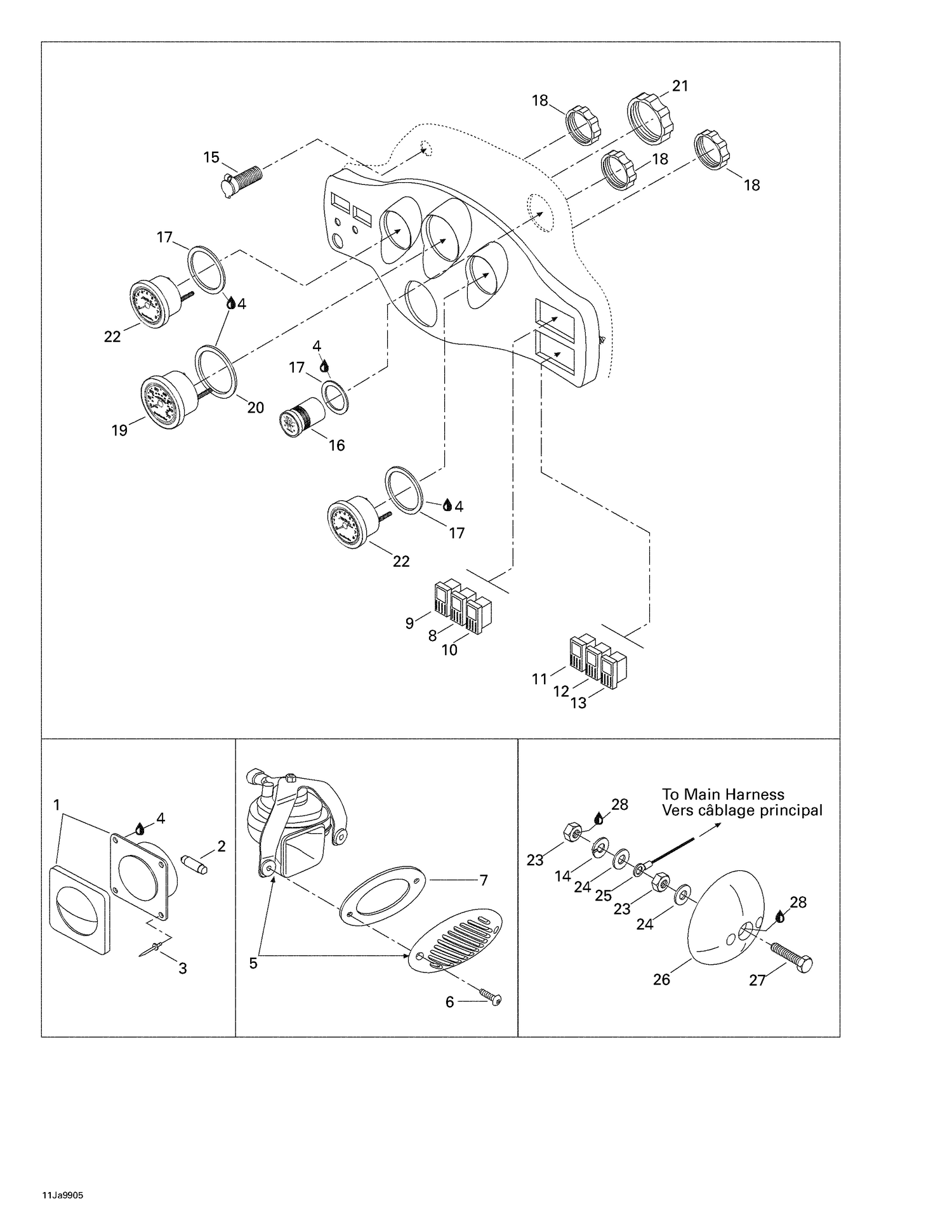

10- Electrical Accessories 1
Parts (25)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 204470081 | BULB - Call your local BRP dealership |
| 3 | 293150032 | RIVET_POP 1/8 X ,487 - Call your local BRP dealership |
| 4 | 219704453 | Was 293550004 Dielectric Grease, 150 g |
| 6 | 211000100 | SCREW-RD.HD.PH. - Call your local BRP dealership |
| 7 | 293250089 | Horn Gasket |
| 8 | 204470011 | VENTILATION SWITCH ASS'Y - Call your local BRP dealership |
| 9 | 204470099 | BILGE PUMP SWITCH ASS'Y - Call your local BRP dealership |
| 10 | 204470101 | HORN SWITCH ASS'Y - Call your local BRP dealership |
| 11 | 204470102 | COURTESY LIGHT SWITCH ASS'Y - Call your local BRP dealership |
| 12 | 204470100 | LIGHT SWITCH ASS'Y - Call your local BRP dealership |
| 13 | 204470103 | Fuel Tank Reserve Switch |
| 14 | 234161601 | Lock Washer Helical M6 |
| 15 | 710001248 | DC Outlet This part replaces 204470252. |
| 16 | 204470319 | Fuel/Oil Gauge |
| 17 | 204470308 | Gasket |
| 18 | 204470146 | Gauge Nut |
| 19 | 204470316 | Speedometer |
| 20 | 204470309 | Gasket |
| 21 | 204470171 | Gauge Nut |
| 22 | 204470321 | Tachometer Gauge |
| 23 | 211100026 | HEX. NUT 1/4 - Call your local BRP dealership |
| 24 | 234062600 | Flat Washer M6, Stainless |
| 25 | 204470334 | Anode Extension |
| 26 | 204470290 | Anode |
| 27 | 204100001 | Hex. Screw |
