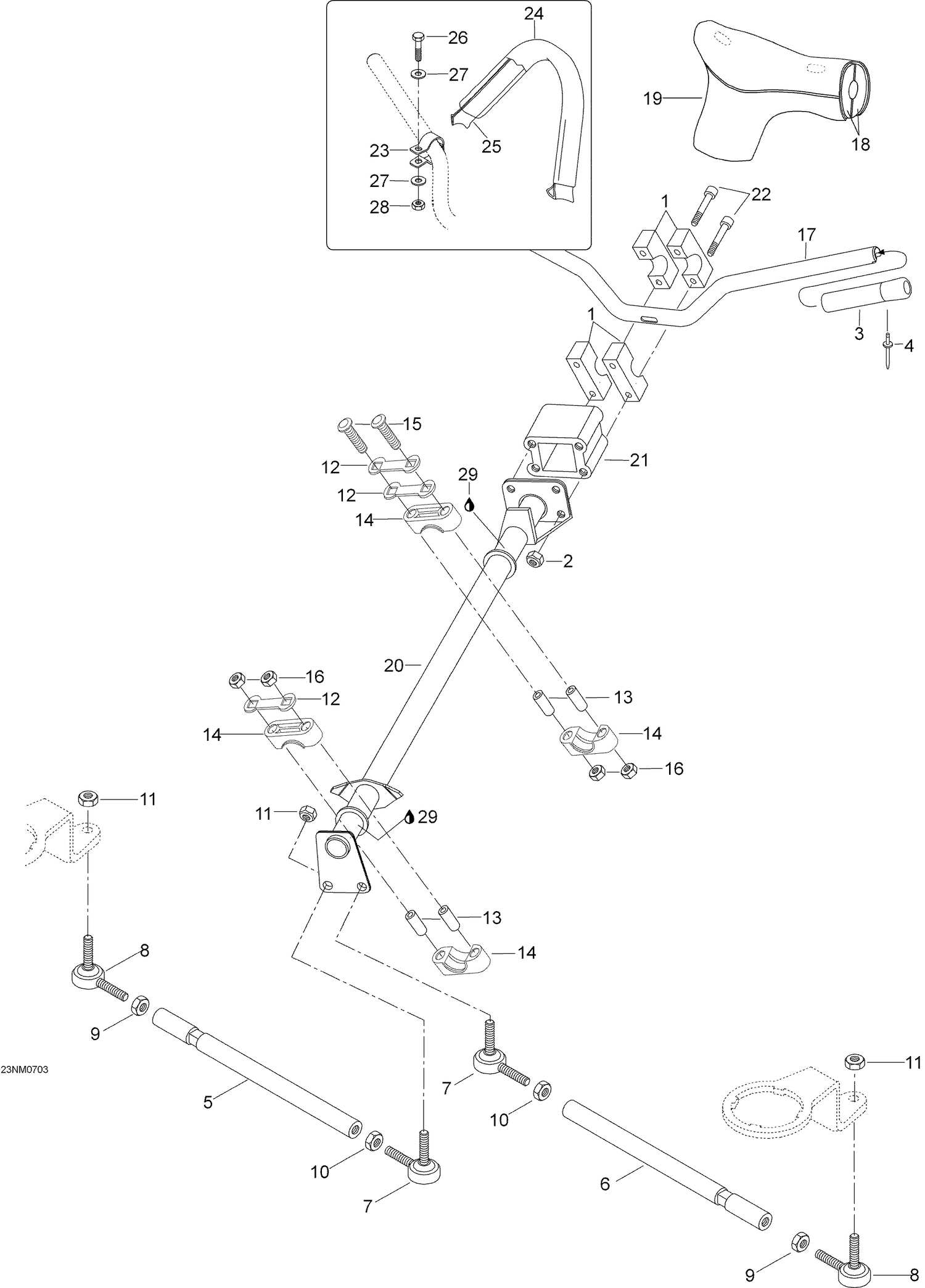

| Ref | Part Number | Description |
|---|
| 1 |
548448 |
Support of Bar - Call your local BRP dealership |
| 2 |
232581414 |
Hex. Elastic Stop Nut M8 This part replaces 33011. |
| 3 |
5340464 |
Grip |
| 4 |
36005 |
Rivet |
| 5 |
5441066 |
TIE ROD - Call your local BRP dealership |
| 6 |
548983 |
Tie Rod. - Call your local BRP dealership |
| 7 |
506151845 |
LH JOINT BALL - Call your local BRP dealership This part replaces 506151495. |
| 8 |
506151492 |
RH BALL JOINT - Call your local BRP dealership |
| 9 |
33019 |
Nut R.H. |
| 10 |
33017 |
Nut M10x1.25VASDIN934 m8 ZNe(1=10pcs) - Call your local BRP dealership |
| 11 |
33023 |
Elastic stop nut M10 |
| 12 |
506150600 |
Stopper plate |
| 13 |
506150500 |
Housing bushing |
| 14 |
506150400 |
Half bushing |
| 15 |
207787044 |
Carriage bolt M8 x 70 |
| 16 |
233281414 |
Hex. Flange Elastic Nut M8 This part replaces 33201. |
| 17 |
605249033 |
HANDLE BAR - Call your local BRP dealership |
| 18 |
605250305 |
Foam, front |
| 18 |
605250306 |
REAR PADDING STEERING - Call your local BRP dealership |
| 19 |
605250279 |
Cover |
| 23 |
506152536 |
Black Support Plate This part replaces 506151792. |
| 24 |
506152115 |
Strap Ass'y This part replaces 415090200. |
| 25 |
506152115 |
Strap Ass'y This part replaces 415095500. |
| 26 |
40031 |
Hex. screw M6 x 25 |
| 27 |
20003 |
Washer |
| 28 |
33010 |
Lock Nut M6 (1=10Pcs) |
