Home / BRP / STERN DRIVE / 1990 / 3 / 302BMRPWR 1990 / TRANSOM MOUNT

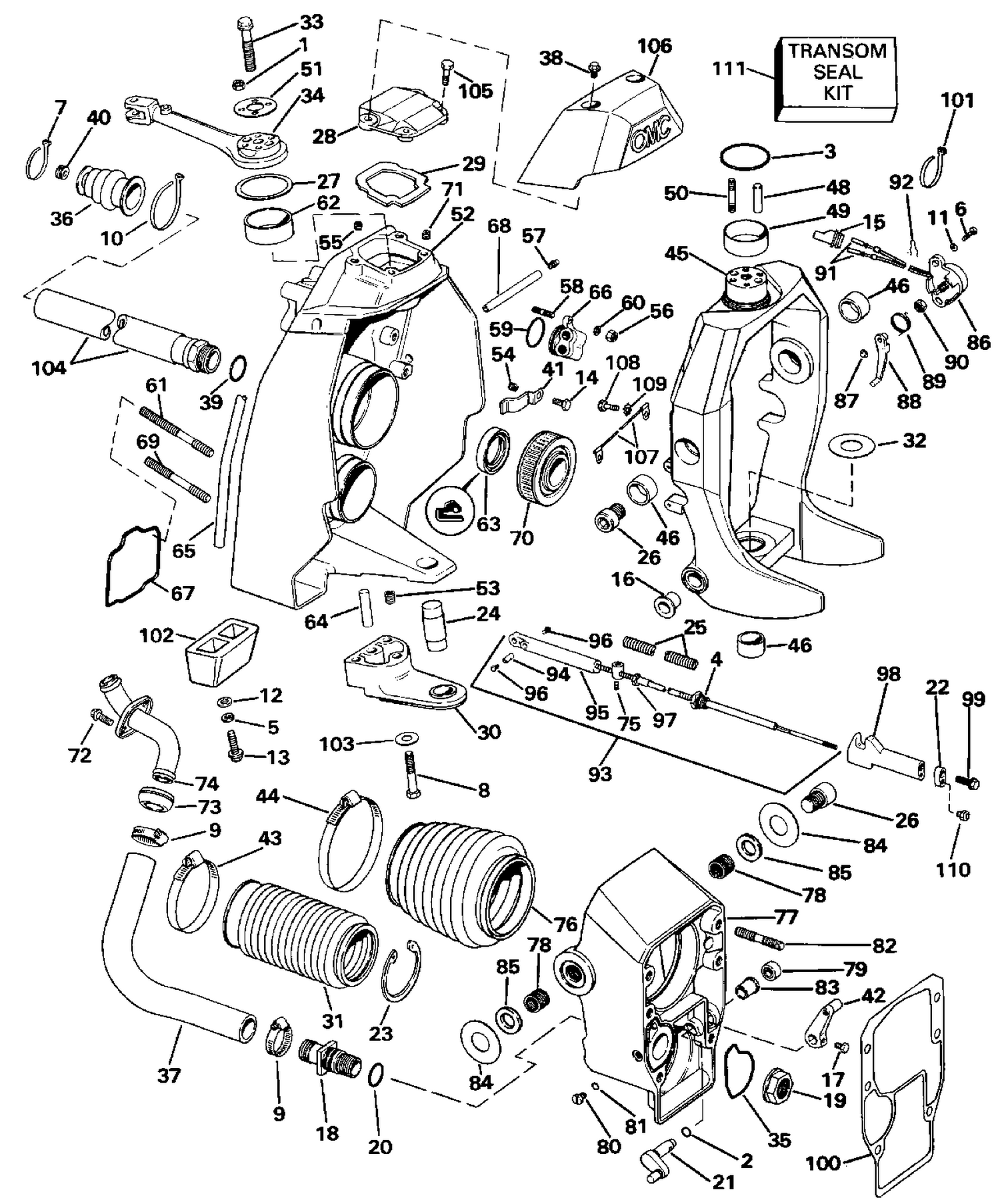

TRANSOM MOUNT

TRANSOM MOUNT

Parts (136)

RefPart NumberDescription
9 0912627 CLAMP
10 0320107 ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet
10b 503193199 Slider 154
10c 208562531 Phillips Screw M6 X 25
10d 232561434 Elastic Stop Nut M6
10f 503196874 Rail Protector This part replaces 503194249.
10g 250200140 Washer
10h 207652544 Hex. Flange Screw M5 X 25
10j 233251434 Flanged Elastic Nut M5
10k 503190576 Rubber Stopper
10m 503191273 Washer
10n 293150256 Rivet Ornit 4.8 X 27.5
13 0329055 SCREW, Anode
16 0910855 BUSHING, Pivot pin
18 3852533 NIPPLE, Water inlet This part replaces 0911716.
19 3852534 NUT, Nipple This part replaces 0911717.
20 0911718 O-RING, Nipple
21 0915796 BELLCRANK, Shift This part replaces 0911722.
22 0913664 RETAINER, Shift cable
23 3852665 RETAINER, Exhaust boot This part replaces 0912992.
24 3852728 SHAFT, Steering pivot This part replaces 0913542.
25 3852553 Tubing This part replaces 0911803.
26 3852854 PIVOT SCREW This part replaces 0911806.
27 3852554 THRUST WASHER, Steering arm This part replaces 0911807.
28 3854577 CAP & GASKET This part replaces 0985438.
29 3852677 GASKET, Cap This part replaces 0913212.
30 3858192 BRACKET, Steering support This part replaces 0912391.
31 0914036 BELLOWS, Exhaust
32 3852557 THRUST WASHER This part replaces 0911818.
33 3852591 SCREW, Steering arm This part replaces 0912306.
34 3852379 STEERING ARM This part replaces 0913816.
35 3852560 SEAL, Water passage This part replaces 0911823.
36 0911826 SEAL, Shift cable
37 0911830 HOSE, Water inlet
38 3852682 SCREW, Cover This part replaces 0913255.
39 0911871 O-RING, Oil line
40 0911876 GROMMET, Shift cable
41 0911900 CLAMP, Oil line
42 0983898 SHIFT LEVER & ROLLER
43 0912628 CLAMP, Exhaust
44 3852604 CLAMP, Exhaust This part replaces 0912667.
45 0986463 GIMBAL ASSY
46 3852544 BEARING, Steering & tilt This part replaces 0911787.
48 3852545 DOWEL, Steering arm This part replaces 0911789.
49 3852571 SLEEVE, Gimbal This part replaces 0911901.
50 3852588 STUD This part replaces 0912240.
51 3852585 PLATE, Steering arm This part replaces 0912155.
52 0986718 GIMBAL HOUSING ASSY
53 0910935 INSERT, 3/8-16
54 0910901 INSERT
55 3852567 INSERT This part replaces 0911858.
59 0322501 O-RING, Manifold block
60 0329241 RONDELLE
61 3852546 STUD, Transom, long This part replaces 0911792.
62 3852547 BEARING, Steering This part replaces 0911794.
63 3852548 SEAL, Driveshaft This part replaces 0911795.
64 3852549 PIN, Steering support This part replaces 0911796.
65 3852550 SEAL, Transom This part replaces 0911797.
66 3852559 MANIFOLD BLOCK This part replaces 0911822.
67 3852846 SEAL, Exhaust pipe This part replaces 0913810.
68 3852564 TUBE, Grease This part replaces 0911843.
69 3852576 STUD, Transom, short This part replaces 0911920.
70 3853807 BEARING ASSY., U-joint This part replaces 0983937.
71 3852526 INSERT This part replaces 0911510.
72 0341013 SCREW, Cover This part replaces 0908668.
73 3852556 BUSHING, Water tube This part replaces 0911815.
74 3853880 WATER TUBE & RETAINER This part replaces 0985879.
75 0311944 SET SCREW
76 3854127 BELLOWS, U-joint This part replaces 0983973.
77 0986462 PIVOT HOUSING ASSY
78 3852698 INSERT, Pivot screw This part replaces 0913412.
79 0984186 PLUG, Bellcrank
80 3852536 PLUG, Water drain This part replaces 0911719.
81 0911311 O-RING, Plug
82 3852551 STUD, Pivot to gear housing This part replaces 0911798.
83 0911732 BUSHING, Bellcrank
84 3852558 WASHER, Gimbal to pivot hsg. This part replaces 0911820.
85 3852697 THRUST WASHER, Pivot screw This part replaces 0913411.
86 0984748 TRIM SENDER ASSY
88 0911800 ARM
89 3852577 SPRING This part replaces 0911928.
92 3852555 RETAINER, Plug This part replaces 0911809.
93 0987661 SHIFT CABLE ASSY. This part replaces 0986654.
94 0915918 CABLE CLAMP This part replaces 0914740.
95 0914742 CASING GUIDE
96 0912304 SET SCREW
97 0914741 NUT, Rod to guide tube
98 0984016 GUIDE, Shift cable
99 0341013 SCREW, Cover This part replaces 0908668.
100 0915840 GASKET, Gear housing to pivot This part replaces 0911836.
102 3853930 ANODE & INSERT ASSY. This part replaces 0986158.
104 0984199 SLEEVE & CONNECTOR ASSY
105 3852473 SCREW, Cap to gimbal This part replaces 0909636.
106 0985403 COVER & INSERT
107 3853929 GROUND STRAP, Bracket to arm This part replaces 0986156.
109 0329241 RONDELLE
110 0914771 NUT, Retainer
610 503196716 Rear Axle
630 503196949 Socket
660 503196971 Rear Wheel Support
670a 503190396 Ball Bearing
670b 415129371 Retaining Ring
710 503196357 Washer
730 503195748 Bolt M10
735 233201466 Flanged Elastic Nut M10
900 503194266 Tensioner
920 503194267 Hex. Cap Screw M8 X 95
930 232581414 Hex. Elastic Stop Nut M8
1000 503192842 Front Wheel Shaft
1001a 503190396 Ball Bearing
1001b 415129371 Retaining Ring
1020 503192496 Washer
1030 205505054 Socket Screw
1090 503195775 Shock Lower Shaft
1095a 503190396 Ball Bearing
1095b 415129371 Retaining Ring
1100 503194576 Spacer
1110 503192491 Washer
1112 605449294 Support Plate
1115 503194575 Spacer
1120 205525554 Socket Screw
1140 503191260 Axle Strap
1150 503192496 Washer
1155 503195837 Limiter Bussing
1160 205503554 Socket Head Screw M10 X 35
1165 205506044 Screw Socket S,Grip M10 X 60
1400 503194900 LH Spring
1410 503194901 RH Spring
1420 503194294 LH Support
1430 503194295 RH Support
1440 207683054 Hex. Flange Screw M8 X 30
1445 503192494 Washer
1450 233281466 Elastic Flang Nut M8
1470 503196336 Hook Ass'y
1480 207167054 Hex. Cap Screw M6 X 70
1485 250200039 Flat Washer
