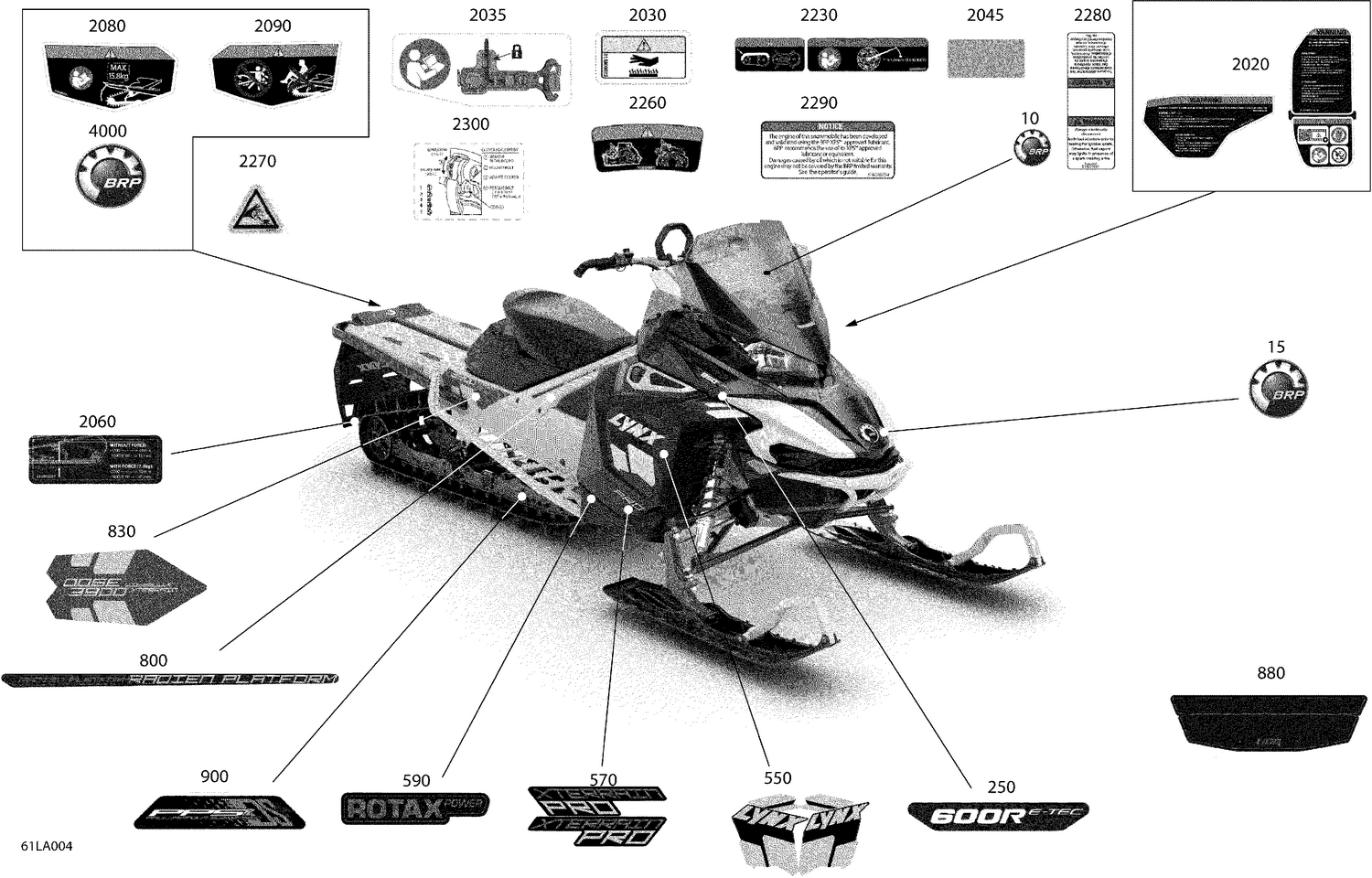

07- Body - Decals
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 704904615 | BRP Logo, 13 mm |
| 15 | 516008739 | Logo 68mm "BRP" |
| 250 | 516009560 | Upper Side Panel Decal 850 E-TEC |
| 550 | 516010371 | LH/RH Side Pannel Decal "LYNX" |
| 570 | 516010377 | LH/RH Sidepanel Decal "XTerrain Pro" |
| 590 | 516008760 | Decal "Rotax Power" |
| 800 | 516008762 | LH/RH Decal "Radien Platform" |
| 830 | 516010390 | LH/RH Tunnel Decal "3900 XTerrain" |
| 880 | 516010612 | Decal "Linq" |
| 900 | 516010523 | Decal "PPS2 DS+" |
| 2020 | 516009921 | Decal - Label En/Fi/Swe |
| 2030 | 516009922 | Warning Decal |
| 2035 | 516009955 | Warning Decal |
| 2045 | 516009954 | Protective Decal |
| 2060 | 516009268 | Decal Track Tension |
| 2080 | 516009924 | Safety Label |
| 2090 | 516009925 | Warning Decal Rotating Track |
| 2230 | 516009933 | Pulley Warning Decal |
| 2260 | 516009932 | Warning Decal |
| 2270 | 516009935 | Warning Decal, Hot liquid |
| 2280 | 516007661 | Warning Decal, Injectors |
| 2290 | 516009264 | Oil Warning Decal |
| 2300 | 516009540 | Decal Ramp Clicker |
