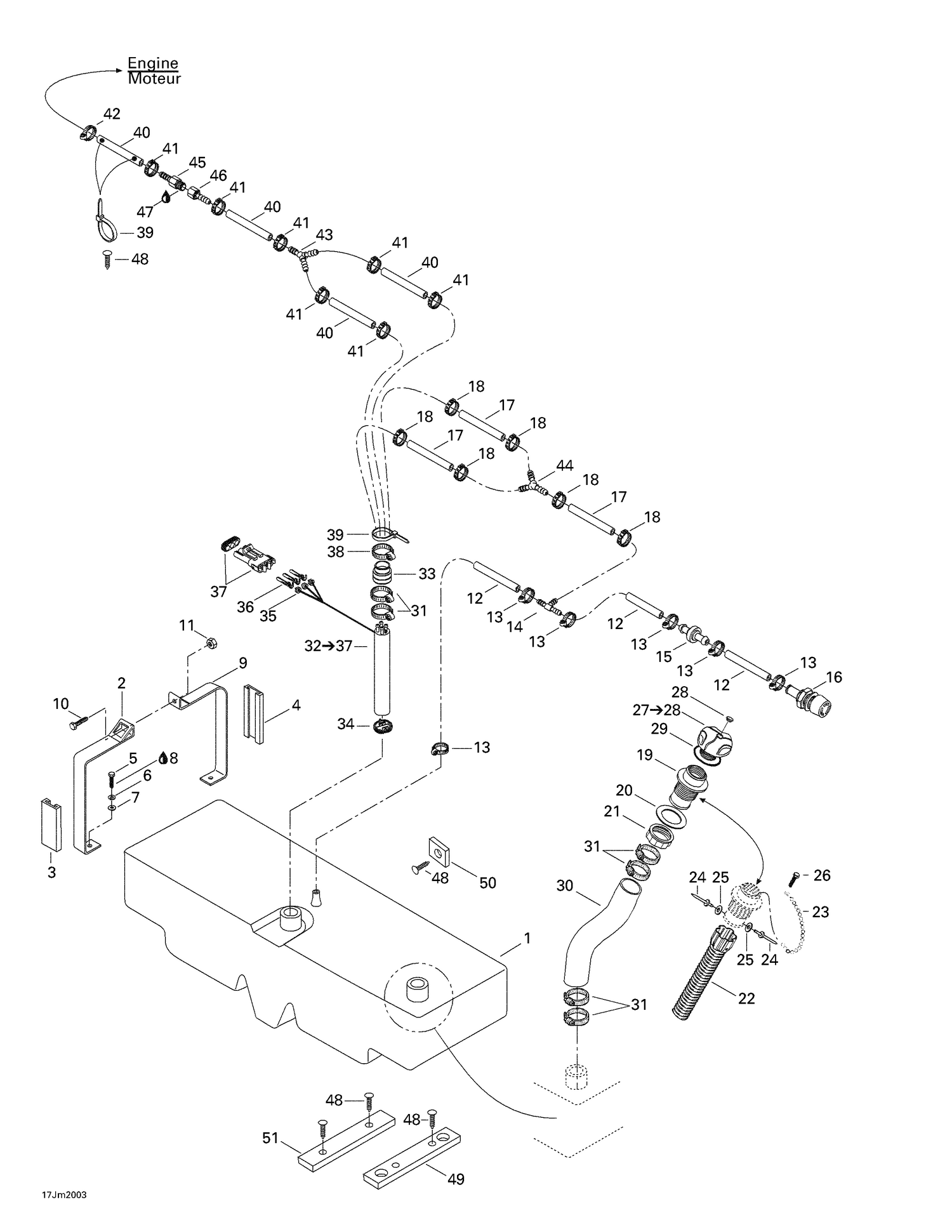

02- Fuel System
Parts (48)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 204560053 | Plastic Fuel Tank |
| 2 | 204560065 | Tank Bracket |
| 3 | 204560075 | Protector Strip |
| 4 | 204560076 | Protector Strip |
| 5 | 207183060 | Hex. Screw M8 X 30 |
| 6 | 234181601 | Lock Washer 8 mm, Stainless |
| 7 | 234082600 | Flat Washer 8 mm, Stainless |
| 8 | 293800005 | Loctite 271, 10 ml |
| 9 | 204560072 | Tank Bracket |
| 10 | 207185560 | HEX. SCREW M8 X 55 - Call your local BRP dealership |
| 11 | 232581600 | Hex. Elastic Nut M8 |
| 12 | 204560358 | HOSE 16 MM - Call your local BRP dealership This part replaces 275500205. |
| 13 | 293650069 | NORMA CLAMP - Call your local BRP dealership |
| 14 | 204560038 | T-Fitting |
| 15 | 204560101 | VENT FUEL SURGE PROTECTOR - Call your local BRP dealership |
| 16 | 275500206 | VENT BOAT - Call your local BRP dealership |
| 17 | 204560099 | Hose 6 mm (Meter) |
| 18 | 293650088 | Norma Clamp |
| 19 | 275500247 | Filler Neck |
| 20 | 293250029 | Gasket |
| 21 | 211100012 | Filler Neck Nut, Fuel |
| 22 | 275500757 | FILLER NECK, INTERIOR - Call your local BRP dealership This part replaces 275500067. |
| 23 | 275500015 | Oil Cap Chain |
| 24 | 293150057 | Rivet 1/8” |
| 25 | 234032600 | Flat Washer M3, Stainless |
| 26 | 241140060 | Screw K40 X 10 |
| 28 | 293000034 | Black, Snap Cap |
| 29 | 293250017 | Gasket |
| 30 | 204560079 | Exterior Hose Filler Neck |
| 31 | 293650081 | Norma Clamp |
| 33 | 204560066 | Fuel Tube Adaptor |
| 34 | 275500397 | FUEL FILTER - Call your local BRP dealership |
| 35 | 278000218 | Wire Seal |
| 36 | 278000223 | Female Terminal |
| 37 | 278000273 | Male Housing, 3 Circuits |
| 38 | 293650077 | Norma Clamp This part replaces 293650078. |
| 39 | 414115200 | Tie-Rap 180 mm |
| 40 | 204560070 | Hose 5/16" |
| 41 | 293650087 | NORMA CLAMP - Call your local BRP dealership |
| 42 | 293650172 | Tridon Gear Clamp This part replaces 293650037. |
| 43 | 204550001 | Y-Fitting |
| 44 | 293710059 | Y-Fitting |
| 45 | 204560122 | Anti-Siphon Valve |
| 46 | 293700038 | HOSE FITTING - Call your local BRP dealership |
| 47 | 219704454 | Was 293800013 Loctite 56765 |
| 48 | 293730006 | Black, Dart |
| 49 | 204060185 | Rubber Pad |
| 50 | 274000354 | Rubber Pad |
