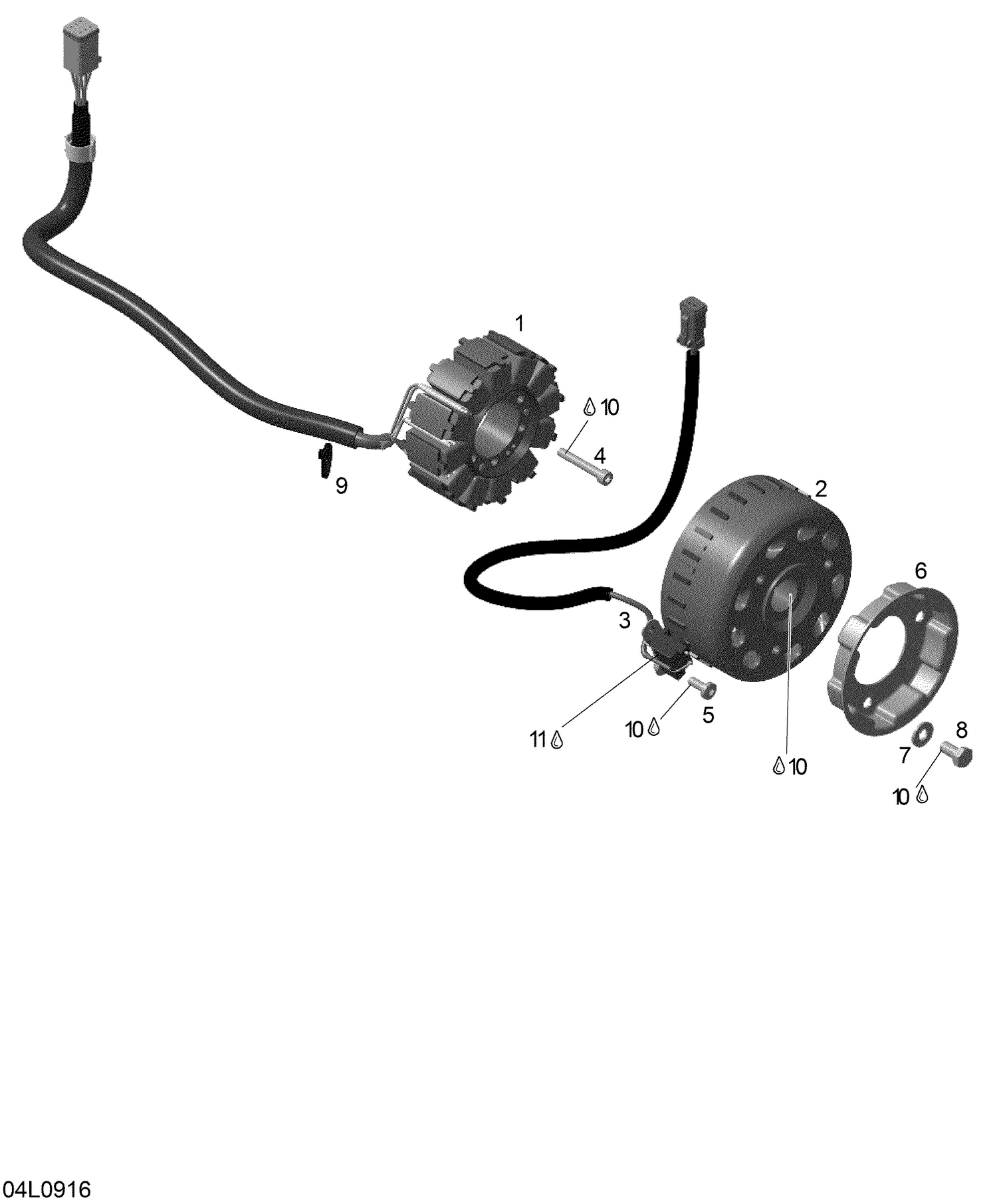

01- Ignition
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420665435 | Stator Ass´y, 55V 1300W This part replaces 420665432. |
| 2 | 420665442 | Flywheel This part replaces 420665441. |
| 3 | 420996839 | Pick up ass'y |
| 4 | 420241816 | SOCKET HEAD SCREW M6 X 40 - Call your local BRP dealership |
| 5 | 420640324 | Torx Screw M6 X 16 This part replaces 420640321. |
| 6 | 420852533 | Starting Pulley This part replaces 420852532. |
| 7 | 420827405 | Washer |
| 8 | 207181644 | Screw M8 x 16 |
| 9 | 420866714 | Tie Rap 142x3,2 MM |
| 10 | 293800060 | Loctite 243, 10ml |
