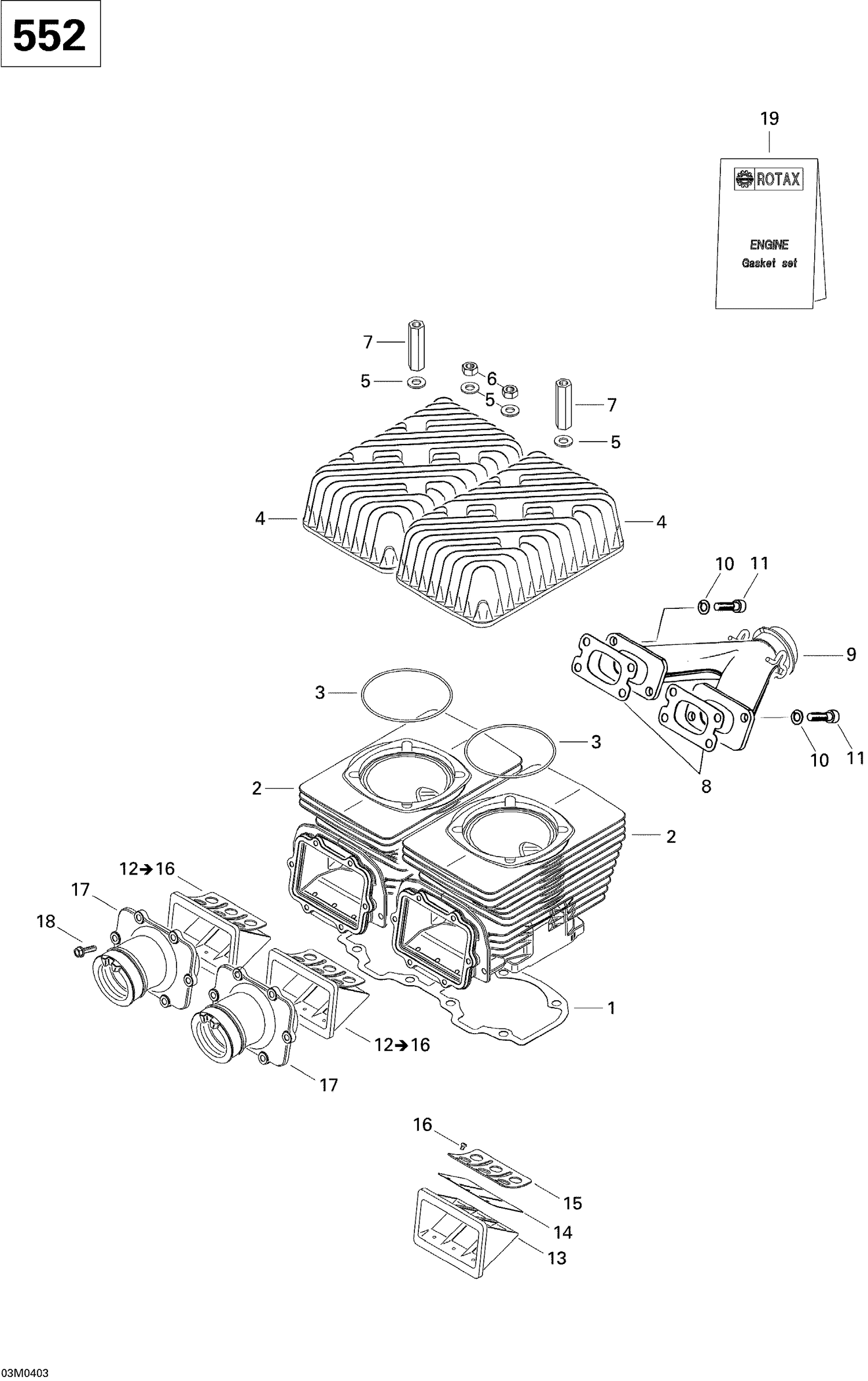

01- Cylinder, Exhaust Manifold, SUMMIT 550F
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420950910 | Gasket 0.3 |
| 1 | 420950911 | Gasket 0.4 |
| 1 | 420950912 | Gasket 0.6 |
| 2 | 420923974 | Cylinder This part replaces 420923975. |
| 2 | 421000600 | REBUILD-CYLINDER 552 - Call your local BRP dealership |
| 3 | 293300026 | O-Ring |
| 4 | 420923595 | HEAD CYLINDER - Call your local BRP dealership |
| 5 | 420250315 | Flat Washer 8.4 mm This part replaces 420250311. |
| 6 | 232081414 | Hex. Nut M8 |
| 7 | 420842204 | Distance Nut M8 X 47 This part replaces 420842203. |
| 8 | 420831849 | Gasket 1.0 mm |
| 9 | 420673065 | Exhaust Manifold |
| 10 | 420945832 | Washer-Lock Din.128 This part replaces 420945752. |
| 11 | 205083044 | Socket Head Screw M8 X 30 |
| 13 | Not | Available As Spare Part - Reed Vlave Housing |
| 14 | 420924532 | Reed Pedal |
| 15 | 420924539 | Reed Pedal Stop |
| 16 | 420941215 | Phillips Screw M3 X 5 |
| 17 | 420867100 | Carburetor Socket |
| 18 | 420941928 | Taptite Screw M5 X 16 This part replaces 420941925. |
