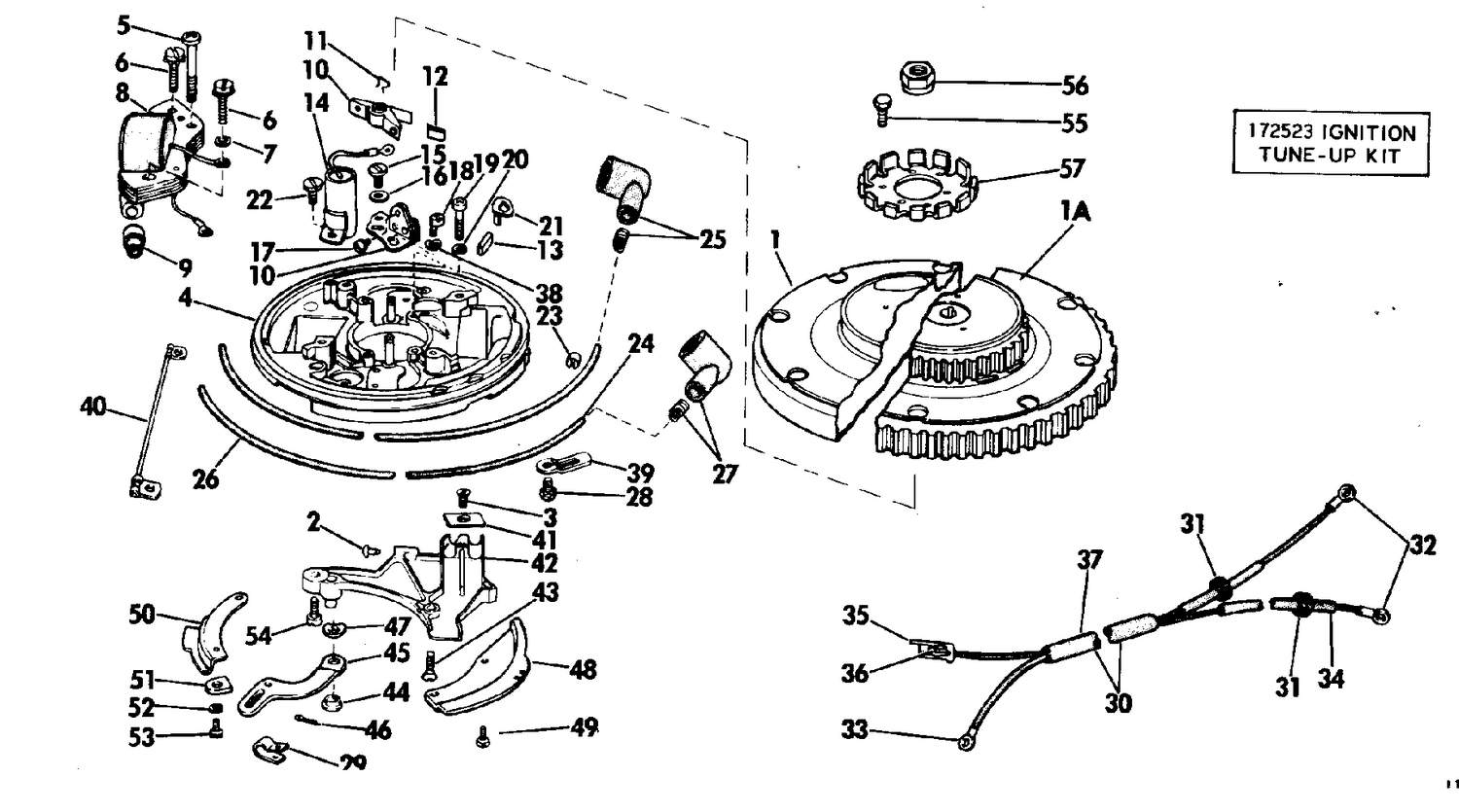

| Ref | Part Number | Description |
|---|
| 1 |
0580897 |
FLYWHEEL ASSY |
| 1A |
0580901 |
FLYWHEEL ASSY |
| 2 |
0203290 |
BUMPBER, Anchor and pin assy. |
| 3 |
0306490 |
SCREW |
| 4 |
0580867 |
ARMATUR PLATE, Sleeve and post |
| 5 |
0510191 |
SCREW |
| 6 |
0510397 |
SCREW |
| 8 |
0580971 |
COIL & LAMINATION |
| 10 |
0580148 |
BEAKER,Assy |
| 14 |
0581419 |
CONDENSER This part replaces 0580422. |
| 15 |
0510278 |
SCREW |
| 16 |
0510208 |
BOW WASHER |
| 17 |
0510194 |
SCREW |
| 18 |
0510185 |
ECCENTRIC SCREW |
| 19 |
0310350 |
SCREW, Armature plate |
| 20 |
0360252 |
WASHER This part replaces 0306311. |
| 21 |
0510188 |
CLIP, Oiler |
| 23 |
0120783 |
BAND, Identification |
| 24 |
. |
LEAD, Upper |
| 26 |
LEAD, |
Lower |
| 29 |
0510371 |
CABLE CLAMP |
| 30 |
0580499 |
LEAD ASSEMBLY UPPER & LOWER SHORTING |
| 32 |
0510132 |
TERMINAL, Breaker |
| 34 |
0511723 |
TERMINAL This part replaces 0309861. |
| 38 |
0510391 |
BOW WAHSER,Eccentric scr. |
| 39 |
0510190 |
CLAMP |
| 40 |
0580733 |
FIL, masse solénoïde |
| 41 |
0312565 |
CLAMP, Hi tension ld to armature plate anchor |
| 42 |
0380859 |
ANCHOR & PIN |
| 44 |
0307841 |
BUSHING, Control lever |
| 45 |
0316366 |
LINK, Control lever to breaker |
| 47 |
0510412 |
BOW WASHER |
| 48 |
0318302 |
CAM, Throttle |
| 49 |
0329594 |
SCREW, Cam follower This part replaces 0303737. |
| 50 |
0310802 |
STOP, Shifter lock |
| 51 |
0200932 |
CLAMP, Cut out lead |
| 54 |
0306532 |
SCREW |
| 55 |
0308072 |
SCREW |
| 56 |
0326111 |
NUT This part replaces 0308457. |
| 0510660 |
0510660 |
SLEEVE |
| 0580539 |
0580539 |
H. T. LEAD ASSY., Upper |
| 0580737 |
0580737 |
H.T. LEAD ASSY., Lower |
| 0580870 |
0580870 |
ARMATURE PALTE ASSY., Complete |
