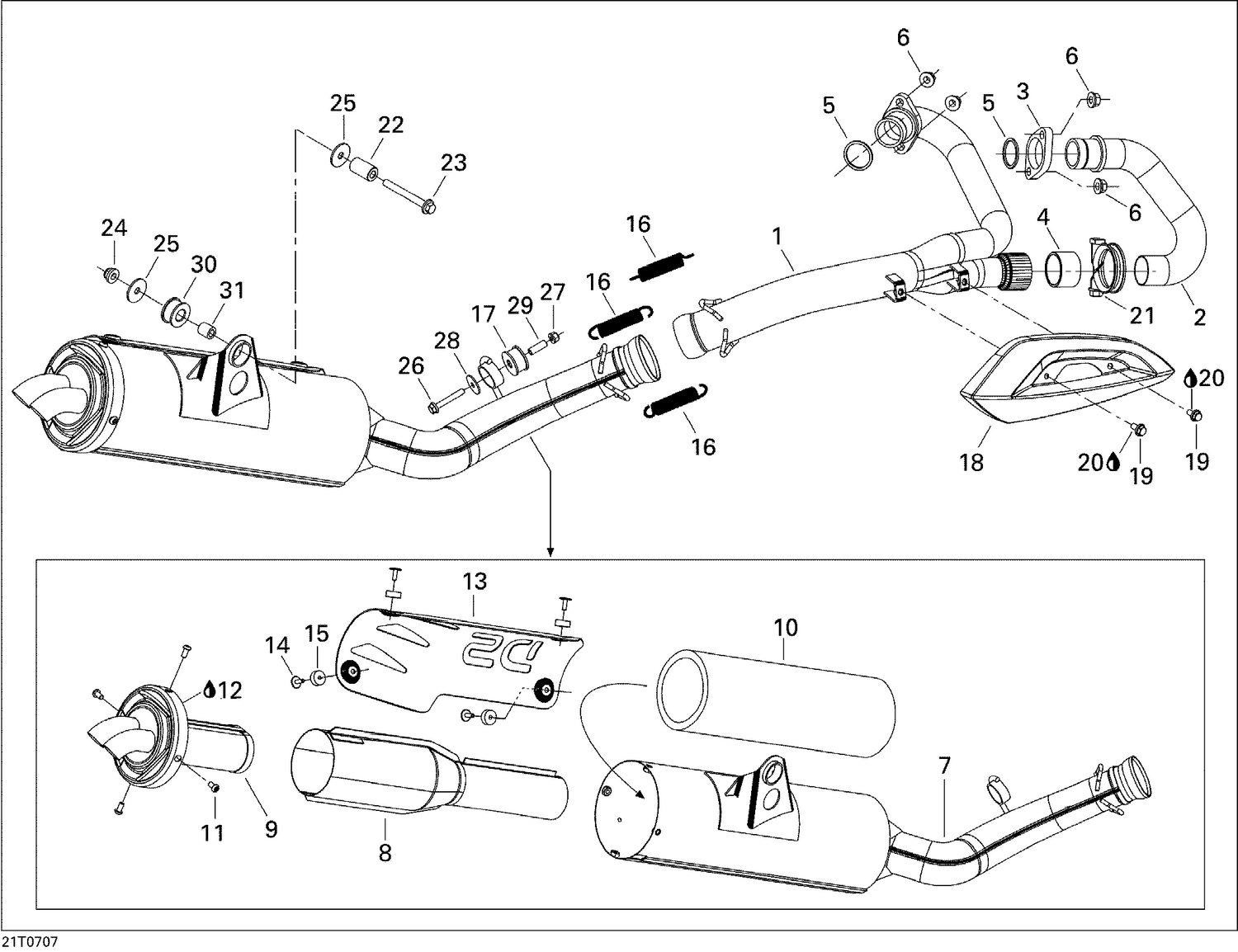

| Ref | Part Number | Description |
|---|
| 1 |
707600019 |
LH TUNED PIPE - Call your local BRP dealership |
| 2 |
707600196 |
RH TUNED PIPE - Call your local BRP dealership |
| 3 |
707600024 |
EXHAUST CLAMP - Call your local BRP dealership |
| 4 |
707600020 |
PIPE GASKET - Call your local BRP dealership |
| 5 |
707600069 |
PIPE GASKET - Call your local BRP dealership |
| 6 |
233081416 |
Hex. Flange Nut M8 |
| 7 |
707600188 |
TUNED PIPE - Call your local BRP dealership |
| 8 |
707600053 |
Perforated Tube |
| 9 |
707600066 |
END PIECE - Call your local BRP dealership |
| 10 |
707600089 |
Insulator |
| 11 |
250000436 |
Socket Screw Button Head M6 X 10 This part replaces 205461060. |
| 12 |
293800090 |
Sealant, Loctite, 80 ml |
| 13 |
707600179 |
Heat Shield |
| 14 |
293150104 |
Pop Rivet 3/16" This part replaces 390409600. |
| 15 |
250200034 |
Rubber Washer |
| 16 |
415107100 |
Spring |
| 17 |
707600702 |
Anti-Vibration Rubber This part replaces 707600012. |
| 18 |
707600241 |
HEAT SHIELD, SLATE GRAY - Call your local BRP dealership |
| 19 |
207661244 |
Hex. Flange Screw M6 X 12 |
| 20 |
293800005 |
Loctite 271, 10 ml |
| 21 |
293650093 |
GEAR CLAMP - Call your local BRP dealership |
| 22 |
707600049 |
SPACER - Call your local BRP dealership |
| 23 |
207687044 |
Hex. Flange Screw M8 X 70 |
| 24 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 25 |
224081301 |
Flat Washer |
| 26 |
207664044 |
Hex. Flange Screw M6 X 40 |
| 27 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 28 |
224060251 |
Washer |
| 29 |
707600070 |
Spacer |
| 30 |
707603323 |
Vibration Damper This part replaces 707600077. |
