Home / BRP / 2009 / GSX / GSX Limited 600 H.O. E-TEC, 2009 000DD9A00 / 01- 3D Rave

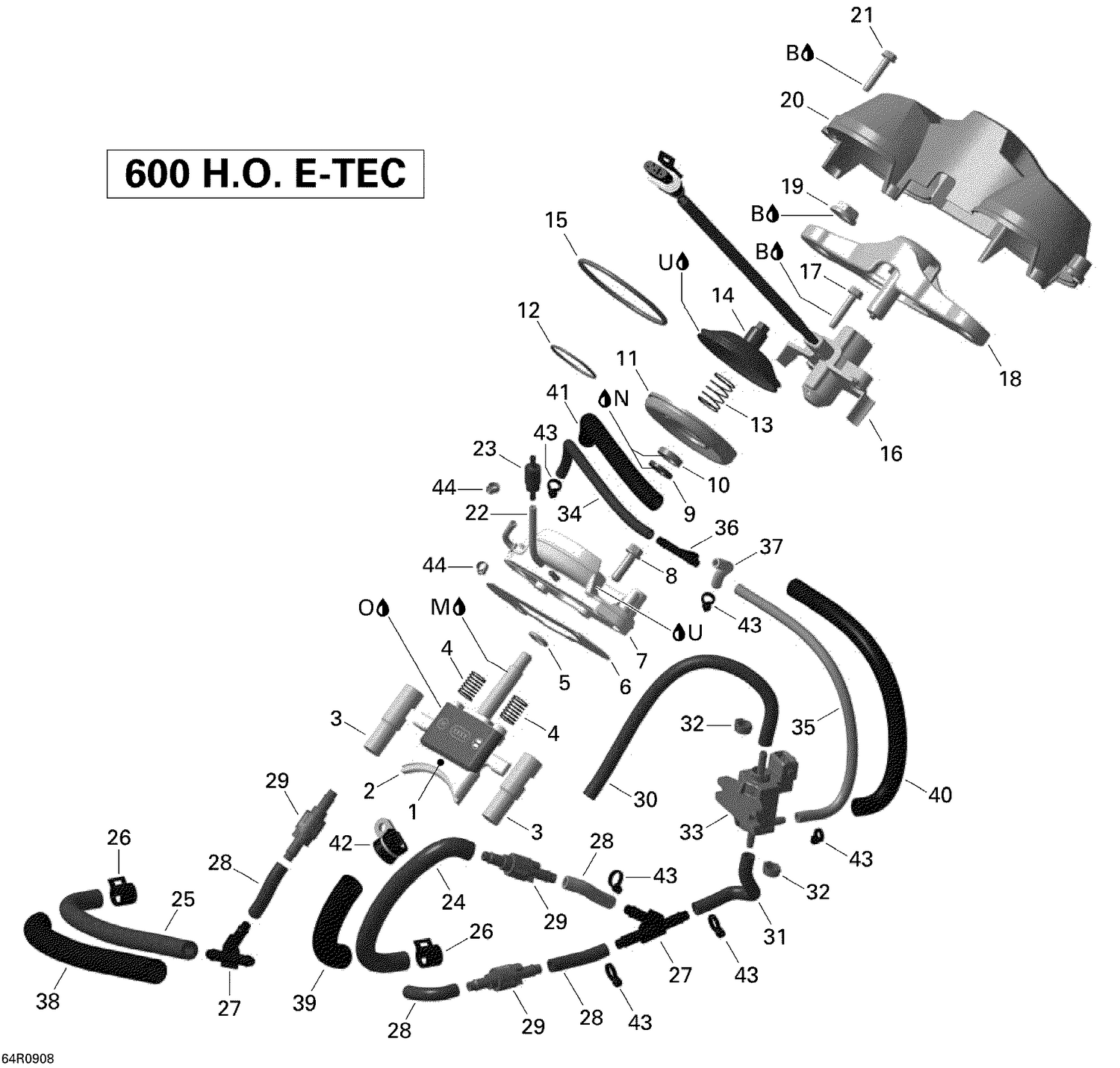

01- 3D Rave

01- 3D Rave

Parts (48)

RefPart NumberDescription
B 293800060 Loctite 243, 10 ml
M 420297433 Molykote G-N, 50 g
N 413707000 Dow Corning 111, 150 g
O Not Available As Spare Part - Engine Oil
1 420854980 Exhaust Valve, Upper
2 420854972 EXHAUST VALVE, LOWER - Call your local BRP dealership
3 420854990 Exhaust Valve
4 420238558 Spring This part replaces 420238556.
5 420931765 O-Ring
6 420430030 Gasket
7 420854889 VALVE HOUSING - Call your local BRP dealership
8 420440207 Torx Flange Screw M6 X 20 This part replaces 420440202.
9 420431380 Gasket Ring
10 420950732 Oil Seal This part replaces 420950730.
11 420260725 Bellows This part replaces 420260724.
12 420838255 Hose Spring
13 420238557 Spring
14 420854442 Valve Cover
15 420939286 Hose Spring This part replaces 420939285.
16 420854089 Position Sensor This part replaces 420665971.
17 420241271 Hex. Taptite Screw M5 X 25 This part replaces 420241270.
18 420854089 Position Sensor This part replaces 420854086.
19 420942190 Nut M12 X 1.5
20 420910821 Cover This part replaces 420910820.
21 420241271 Hex. Taptite Screw M5 X 25 This part replaces 420241270.
22 219704404 Oil Hose 1500Mm Long
23 420956515 Check Valve Ass’y
24 420460782 MOLDED HOSE - Call your local BRP dealership
25 420460782 MOLDED HOSE - Call your local BRP dealership
26 293650214 Norma Spring Clamp This part replaces 420853510.
27 293710059 Y-Fitting This part replaces 420460635.
28 420460851 HIGH PRESSURE AIR HOSE, 40 MM - Call your local BRP dealership
29 420660543 Check Valve
30 219704410 Polyurethane Hose 10000Mm Long
31 420460852 HIGH PRESSURE AIR HOSE, 80 MM - Call your local BRP dealership
32 420853658 Gear Clamp This part replaces 420853643.
33 270600005 Solenoid Valve
34 420660571 High Pressure Air Hose, 180 mm
35 420660575 HIGH PRESSURE AIR HOSE, 220 MM - Call your local BRP dealership
36 293710068 T-Fitting
37 420660572 HIGH PRESSURE AIR HOSE, 50 MM - Call your local BRP dealership
38 219704400 Was 409901800 Tubing (13 mm)
39 219704400 Was 409901800 Tubing (13 mm)
40 219704407 Tubing 10 MM 1000MM Long
41 219704407 Tubing 10 MM 1000MM Long
42 420851250 Clamp
43 293750001 Tie Wrap 94 mm
44 420851508 Clamp
