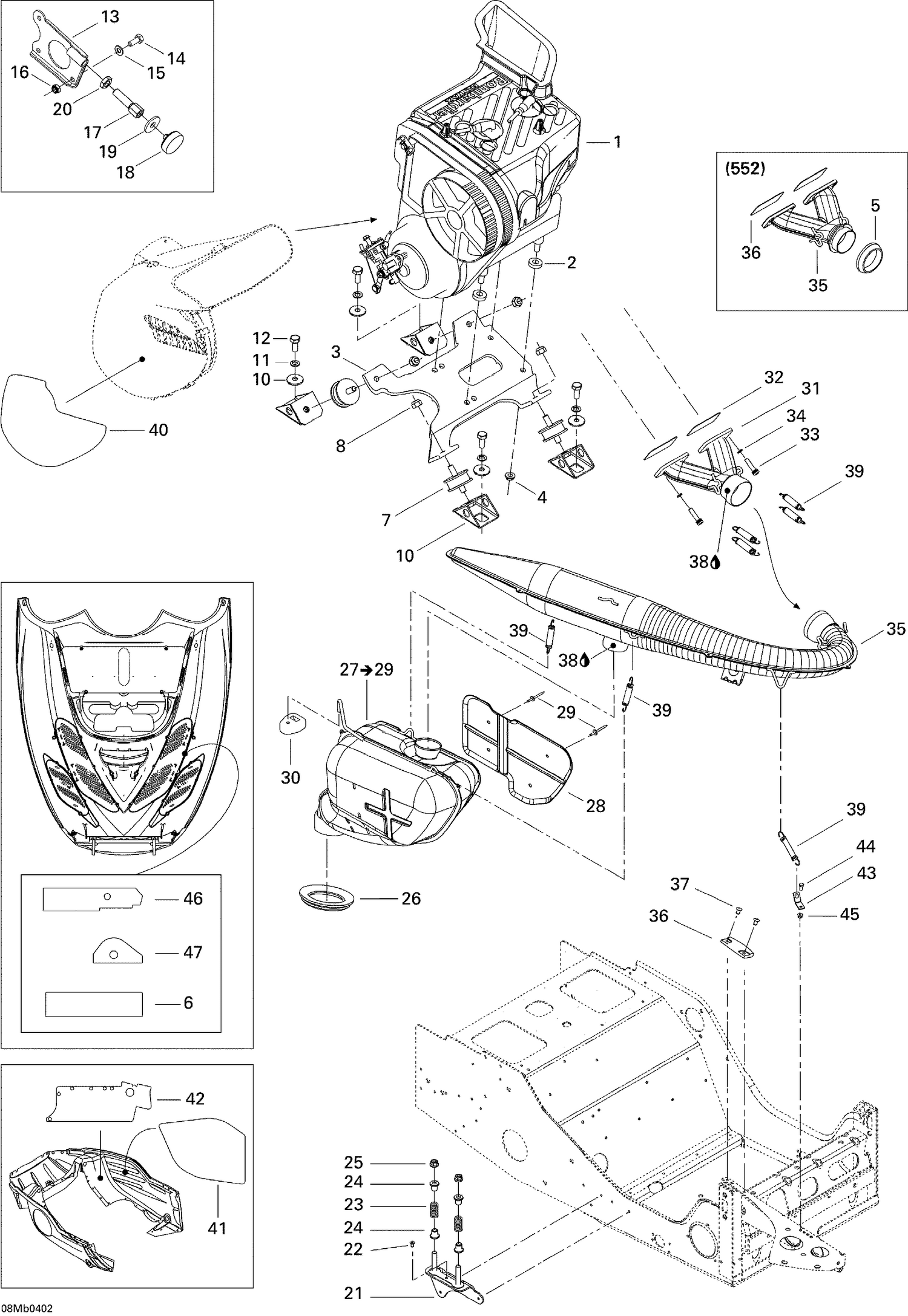

01- Engine Support And Muffler (380F)
Parts (40)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 400308912 | Moteur «377» |
| 3 | 512059397 | Engine Support |
| 4 | 233201414 | Hex. Flange Elastic Nut M10 |
| 6 | 514053392 | Reflective Sheet |
| 7 | 570128700 | RUBBER MOUNT - Call your local BRP dealership |
| 8 | 233201414 | Hex. Flange Elastic Nut M10 |
| 9 | 512050900 | Engine Support |
| 10 | 512056700 | Lock Washer |
| 11 | 234100602 | WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership |
| 12 | 207102544 | Hex. Screw M10 X 25 |
| 13 | 512059446 | Welded Plate |
| 14 | 207182044 | Hex. Screw M8 X 20 |
| 15 | 234081410 | Flat Washer 8 mm |
| 16 | 232581414 | Hex. Elastic Stop Nut M8 |
| 17 | 512058800 | STOPPER SCREW - Call your local BRP dealership |
| 18 | 512059056 | Stopper |
| 19 | 512059057 | WASHER - Call your local BRP dealership |
| 20 | 232026414 | RH Hex. Nut This part replaces 732610019. |
| 21 | 514053263 | Muffler Bracket |
| 22 | 390402200 | Pop Rivet 3/16" |
| 23 | 414913700 | SPRING - Call your local BRP dealership |
| 24 | 514053343 | GUIDE - Call your local BRP dealership |
| 25 | 233481413 | Lock Spring Nut M8 |
| 26 | 570039000 | EXHAUST GROMMET - Call your local BRP dealership |
| 28 | 514053389 | Heat Shield |
| 29 | 390910000 | Pop Rivet 3/16” |
| 30 | 514052704 | RUBBER BUMPER - Call your local BRP dealership |
| 33 | 205083044 | Socket Head Screw M8 X 30 |
| 34 | 234181401 | Lock Washer 8 mm |
| 36 | 570044100 | Rubber Pad |
| 37 | 293150103 | Pop Rivet 3/16" |
| 38 | 293800090 | Sealant, Loctite, 80 ml |
| 39 | 415107100 | Spring |
| 40 | 514053363 | Reflective Sheet |
| 41 | 514052718 | Reflective Sheet |
| 42 | 514053390 | REFLECTIVE SHEET - Call your local BRP dealership |
| 43 | 514054522 | Spring Bracket This part replaces 514034000. |
| 44 | 207151244 | Hex. Screw M5 X 12 |
| 45 | 233251434 | Flange Elastic Nut M5 This part replaces 233251414. |
| 46 | 514053435 | Reflective Sheet, Black Cab |
