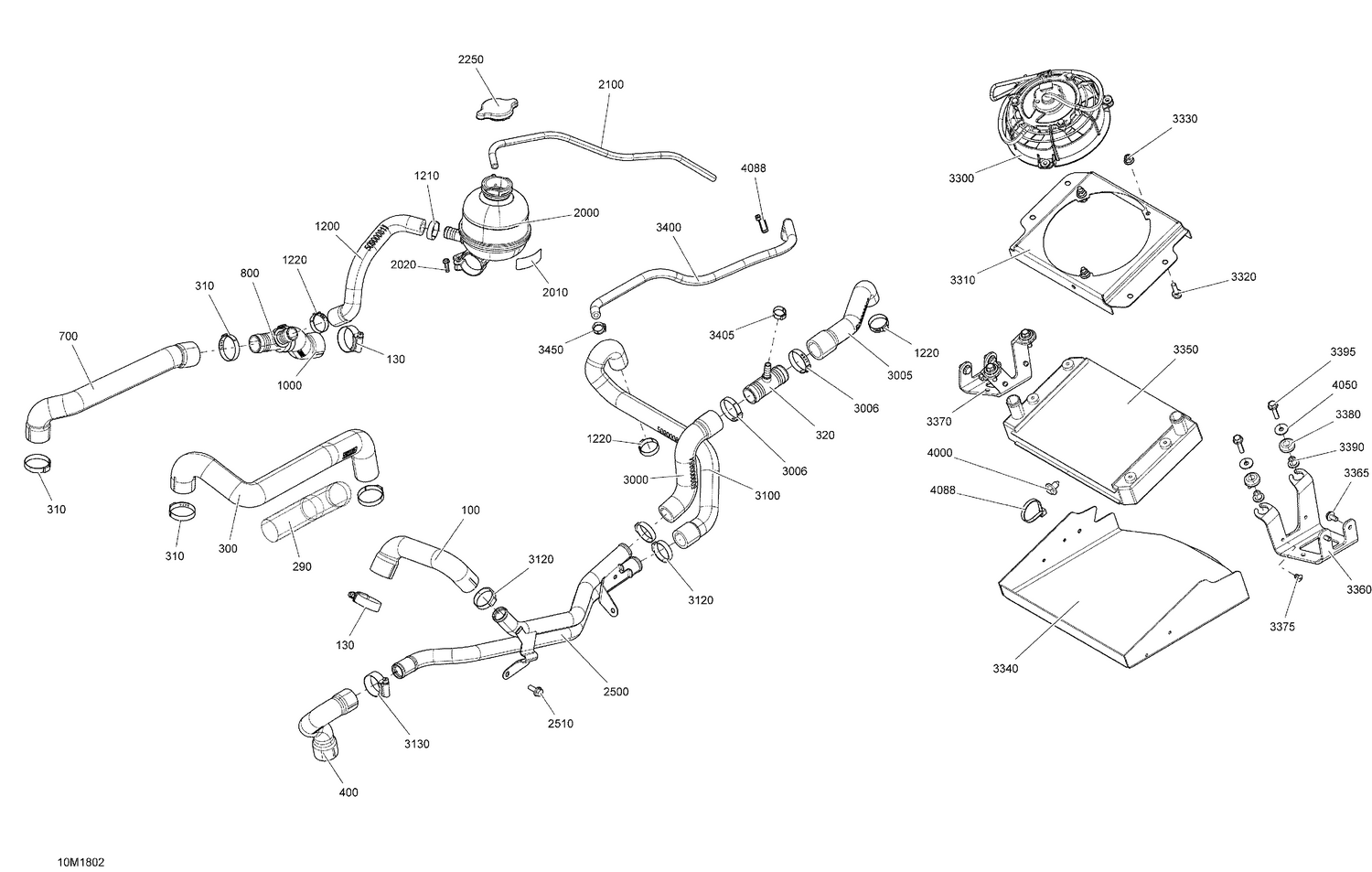

01- Cooling Expedition GTX - 600 ACE
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 130 | 509000443 | Aba Gear Clamp, 26-38 MM |
| 290 | 219704421 | Protector Tube 32 Mm 1000Mm Long |
| 300 | 509000859 | Radiator Hose |
| 310 | 509000529 | Oetiker Gear Clamp, 36.5-706R |
| 320 | 509000510 | T-Fitting |
| 700 | 509001062 | Radiator Return Hose This part replaces 509000697. |
| 710 | 509000529 | Oetiker Gear Clamp, 36.5-706R |
| 800 | 509000372 | T-Fitting |
| 1000 | 509000921 | Radiator Hose |
| 1010 | 509000529 | Oetiker Gear Clamp, 36.5-706R |
| 1020 | 509000443 | Aba Gear Clamp, 26-38 MM |
| 1200 | 509001063 | Filling Hose This part replaces 509000811. |
| 1210 | 509000442 | Oeticker Gear Clamp, 25.6-706R |
| 1220 | 293650099 | Crimp Clamp |
| 2010 | 516005904 | Warning Decal |
| 2020 | 241151640 | Hex. Flange Screw K50 X 2.24 X 16 |
| 2100 | 509000775 | Hose |
| 2250 | 509000180 | Radiator Pressure Cap |
| 2510 | 207561634 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 3375 | 390909100 | Avex Rivet |
| 3395 | 207562544 | Hex. Flange Screw M6 X 25 |
| 3400 | 509000860 | Breather Hose |
| 3405 | 293650047 | Crimp Clamp, 15.3-706R |
| 3450 | 293650025 | Oetiker Gear Clamp |
