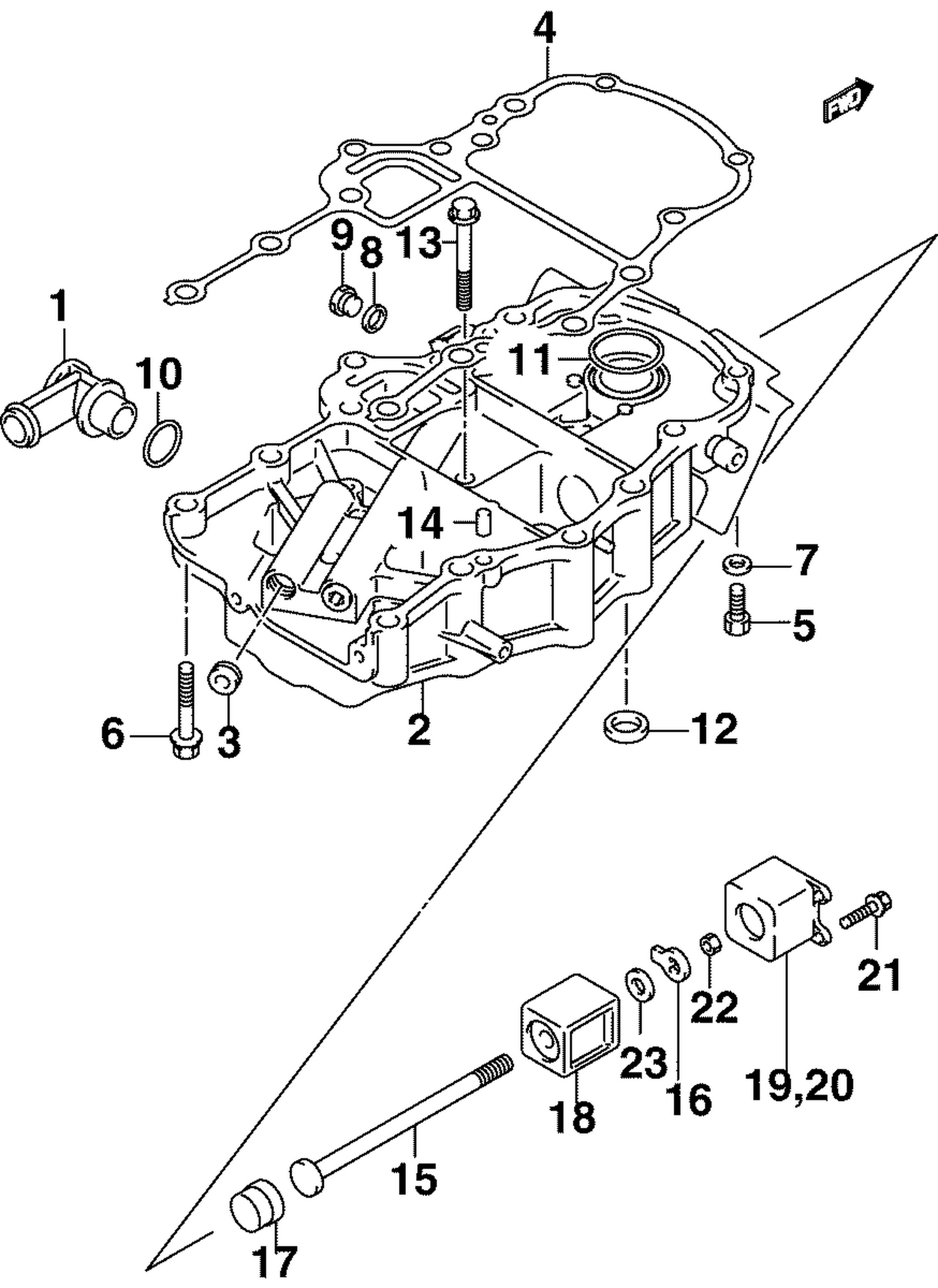

EXHAUST ADAPTER
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5032910 | PIPE, Water return hose |
| 2 | 5034705 | HOLDER, ENGINE (WHITE) |
| 4 | 5032078 | GASKET, Engine holder |
| 5 | 5031816 | BOLT |
| 6 | 5031822 | BOLT |
| 8 | 5031863 | GASKET |
| 9 | 5030525 | PLUG |
| 10 | 5030539 | O RING |
| 11 | 5031887 | O RING (D:2.4 ID:41.7) |
| 12 | 5031266 | OIL SEAL |
| 13 | 5032293 | BOLT |
| 14 | 5031673 | KNOCK PIN |
| 15 | 5032081 | BOLT, Upper mount |
| 16 | 5032082 | WASHER, Upper mount bolt |
| 17 | 5032083 | MOUNT, Upper thrust |
| 18 | 5032084 | MOUNT, Upper |
| 19 | 5034706 | COVER, UPPER MOUNT STBD (WHITE |
| 20 | 5034707 | COVER, UPPER MOUNT PORT (WHITE |
| 22 | *5030054 | NUT |
