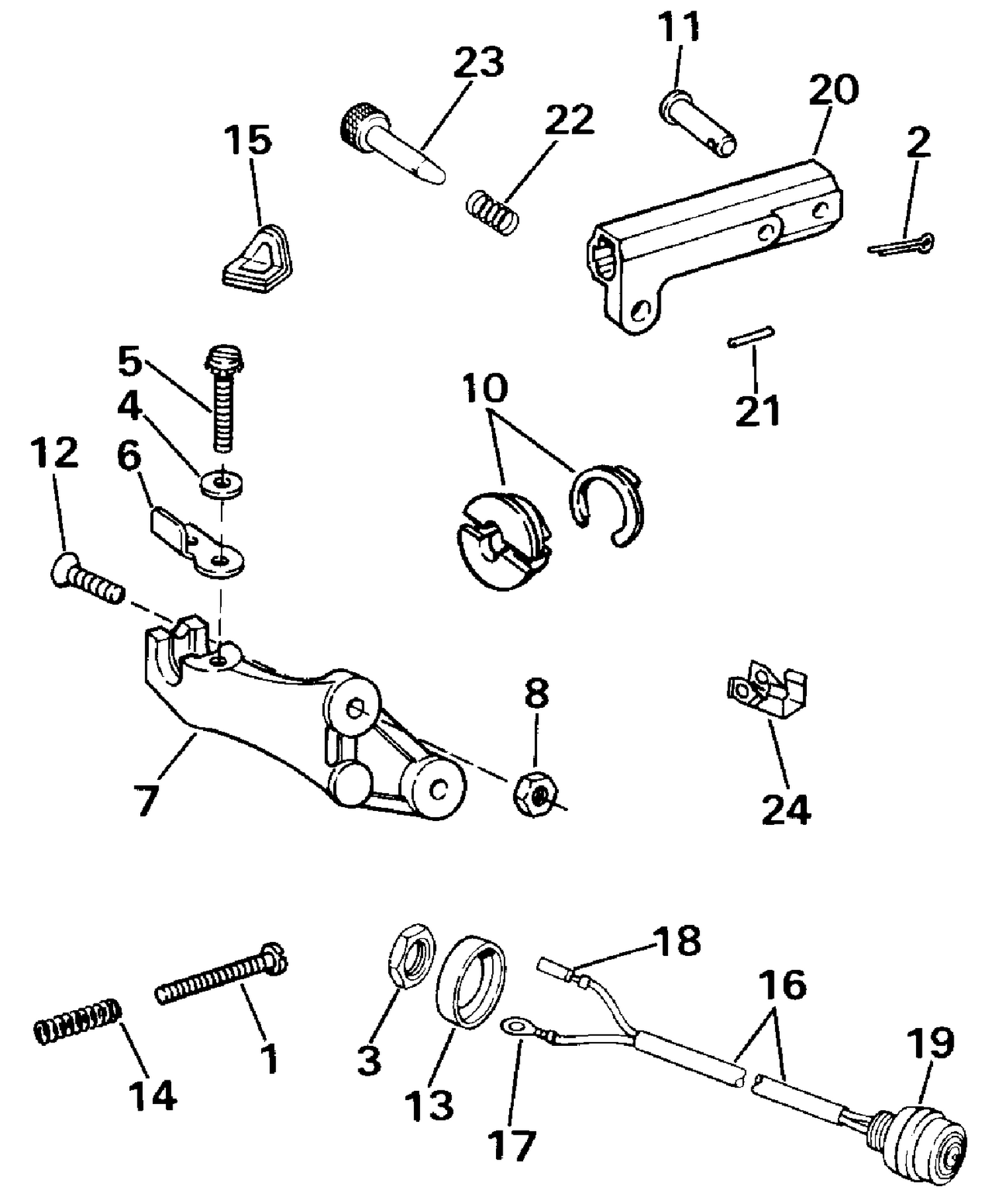

REMOTE CONTROL ADAPTER KIT - 9.9, 15
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0330184 | VIS, montage pompe This part replaces 0306259. |
| 4 | 0310688 | SAPCER, Anchor block |
| 5 | 0320014 | SCREW, Detent clip |
| 6 | 0319951 | CLIP, Detent |
| 10 | 0435448 | CONNECTOR, Throttle This part replaces 0334860. |
| 14 | 0331592 | SPRING, Idle stop |
| 0398032 | 0398032 | ADAPTER KIT, Remote control |
| 0398105 | 0398105 | CONNECTOR ASSEMBLY, Shift |
| 0431875 | 0431875 | BRACKET ASSY., Shift |
