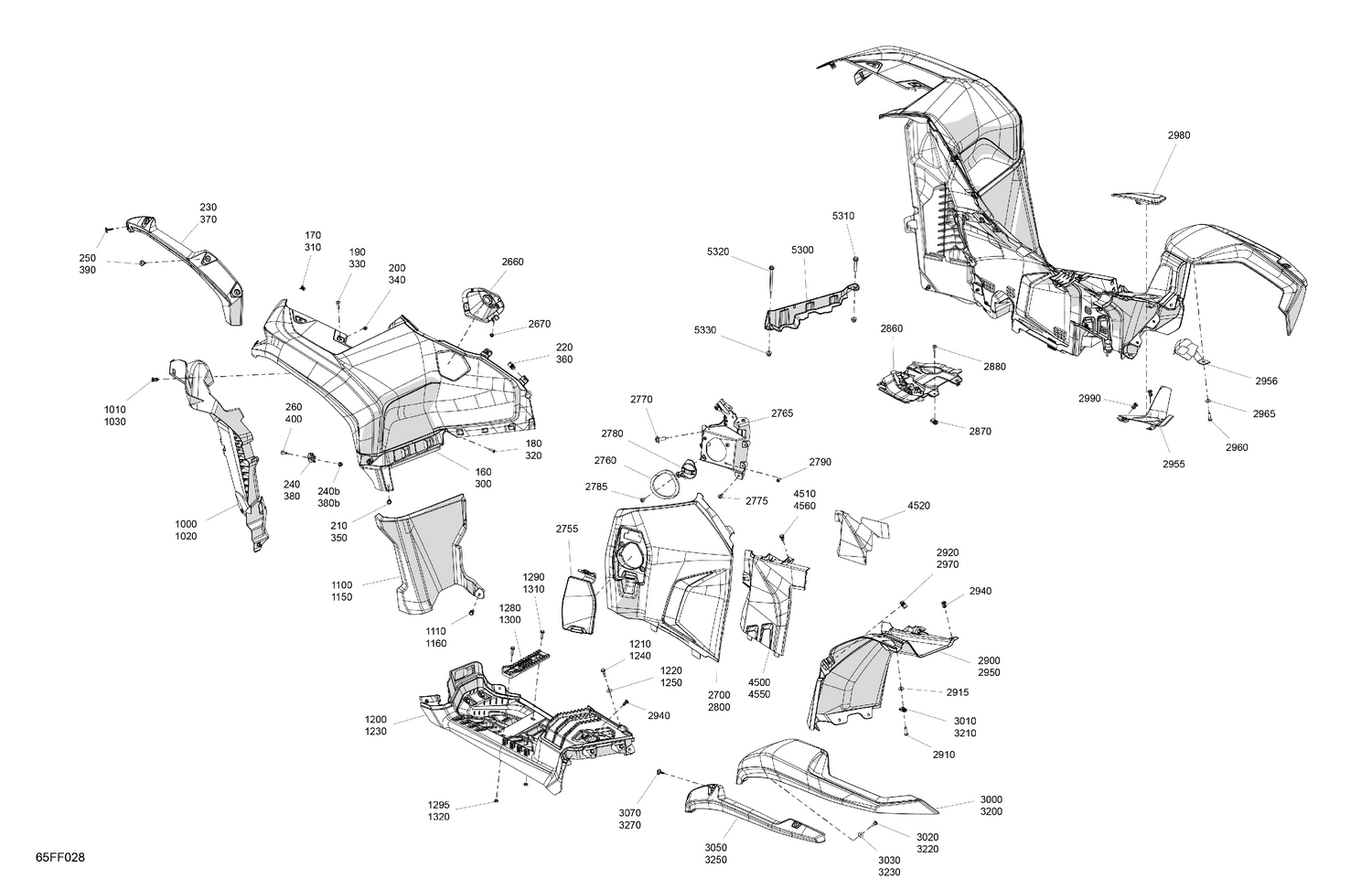

07- Body - Fender Kit
Parts (90)
| Ref | Part Number | Description |
|---|---|---|
| 160 | 705019267 | Bright White, LH Front Fender |
| 170 | 517302785 | Edge Clip |
| 180 | 250000720 | Torx Screw K50 X 16 |
| 190 | 250001000 | Torx-Truss M/S M6 X 25 |
| 200 | 233161414 | Hex. Flange Nut M6 |
| 210 | 293150230 | Tuflok Plastic Rivet |
| 220 | 250100198 | Panel Nut M6 X 1.0 |
| 230 | 705014662 | Deep Black, LH Front Fender Trim |
| 240b | 250100199 | Insert Half Hex Body M6 x 1.0 |
| 250 | 250000907 | Torx Screw Truss Head PT.K50 X 25 |
| 260 | 250000722 | Torx Screw M6 X 20 |
| 300 | 705019266 | Bright White, RH Front Fender |
| 310 | 517302785 | Edge Clip |
| 320 | 250000720 | Torx Screw K50 X 16 |
| 330 | 250001000 | Torx-Truss M/S M6 X 25 |
| 340 | 233161414 | Hex. Flange Nut M6 |
| 350 | 293150230 | Tuflok Plastic Rivet |
| 360 | 250100198 | Panel Nut M6 X 1.0 |
| 370 | 705014663 | Deep Black, RH Front Fender Trim |
| 380b | 250100199 | Insert Half Hex Body M6 x 1.0 |
| 390 | 250000907 | Torx Screw Truss Head PT.K50 X 25 |
| 400 | 250000722 | Torx Screw M6 X 20 |
| 1000 | 705018011 | LH Front Wheel Arch Protector |
| 1010 | 293150230 | Tuflok Plastic Rivet |
| 1020 | 705013312 | RH Inner Fender |
| 1030 | 293150230 | Tuflok Plastic Rivet |
| 1100 | 705018487 | LH Upper Footstep |
| 1110 | 293150230 | Tuflok Plastic Rivet |
| 1150 | 705018488 | RH Upper Footstep |
| 1160 | 293150230 | Tuflok Plastic Rivet |
| 1200 | 705014262 | LH Footboard |
| 1210 | 250000841 | Hex Flange Screw M6 X 25 |
| 1220 | 234062670 | Stainless Steel Flat Washer |
| 1230 | 705014263 | RH Footboard |
| 1240 | 250000841 | Hex Flange Screw M6 X 25 |
| 1250 | 234062670 | Stainless Steel Flat Washer |
| 1280 | 705013651 | Footrest |
| 1290 | 250000841 | Hex Flange Screw M6 X 25 |
| 1295 | 233161414 | Hex. Flange Nut M6 |
| 1300 | 705013651 | Footrest |
| 1310 | 250000841 | Hex Flange Screw M6 X 25 |
| 1320 | 233161414 | Hex. Flange Nut M6 |
| 2660 | 705014661 | Switch Support |
| 2670 | 250100163 | Pressure Nut |
| 2700 | 705018302 | LH Panel |
| 2755 | 705018573 | Charging Door Port |
| 2760 | 293830260 | Gasket |
| 2765 | 705018685 | Charging Port Support |
| 2770 | 250001344 | Hex. Sems Screw M10 X 28 |
| 2775 | 250000717 | Torx Head Screw M6 X 16 |
| 2780 | 705018574 | Charging Port Cap |
| 2785 | 250000717 | Torx Head Screw M6 X 16 |
| 2790 | 250000717 | Torx Head Screw M6 X 16 |
| 2800 | 705018303 | RH Panel |
| 2860 | 709001696 | Panel |
| 2870 | 250100198 | Panel Nut M6 X 1.0 |
| 2880 | 250001257 | Screw Torx M6 X 20 |
| 2900 | 705014733 | LH Rear Fender Support |
| 2910 | 250001000 | Torx-Truss M/S M6 X 25 |
| 2915 | 234062410 | Flat Washer 6 mm |
| 2920 | 250100198 | Panel Nut M6 X 1.0 |
| 2940 | 293150230 | Tuflok Plastic Rivet |
| 2950 | 705014734 | RH Rear Fender Support |
| 2955 | 705018605 | Heat Shield |
| 2956 | 705018563 | Heat Shield |
| 2960 | 250001000 | Torx-Truss M/S M6 X 25 |
| 2965 | 234062410 | Flat Washer 6 mm |
| 2970 | 250100198 | Panel Nut M6 X 1.0 |
| 2980 | 705018567 | Trim Fairing |
| 2990 | 293150230 | Tuflok Plastic Rivet |
| 3000 | 705019264 | Bright White, LH Rear Fender |
| 3010 | 250100198 | Panel Nut M6 X 1.0 |
| 3020 | 250001257 | Screw Torx M6 X 20 |
| 3030 | 234062410 | Flat Washer 6 mm |
| 3050 | 705014664 | Deep Black, LH Rear Fender Trim |
| 3070 | 250000907 | Torx Screw Truss Head PT.K50 X 25 |
| 3200 | 705019265 | Bright White, RH Rear Fender |
| 3210 | 250100198 | Panel Nut M6 X 1.0 |
| 3220 | 250001257 | Screw Torx M6 X 20 |
| 3230 | 234062410 | Flat Washer 6 mm |
| 3250 | 705014665 | Deep Black, RH Rear Fender Trim |
| 3270 | 250000907 | Torx Screw Truss Head PT.K50 X 25 |
| 4500 | 705013653 | LH Extension Panel |
| 4510 | 293150230 | Tuflok Plastic Rivet |
| 4520 | 705019157 | LH Ext Heat Shield |
| 4550 | 705013654 | RH Extension Panel |
| 4560 | 293150230 | Tuflok Plastic Rivet |
| 5300 | 705019532 | Central Harness Protector |
| 5310 | 207685044 | Hex. Flange Screw M8 X 50 |
| 5320 | 250001290 | Hex. Flange Screw M8 X 100 |
