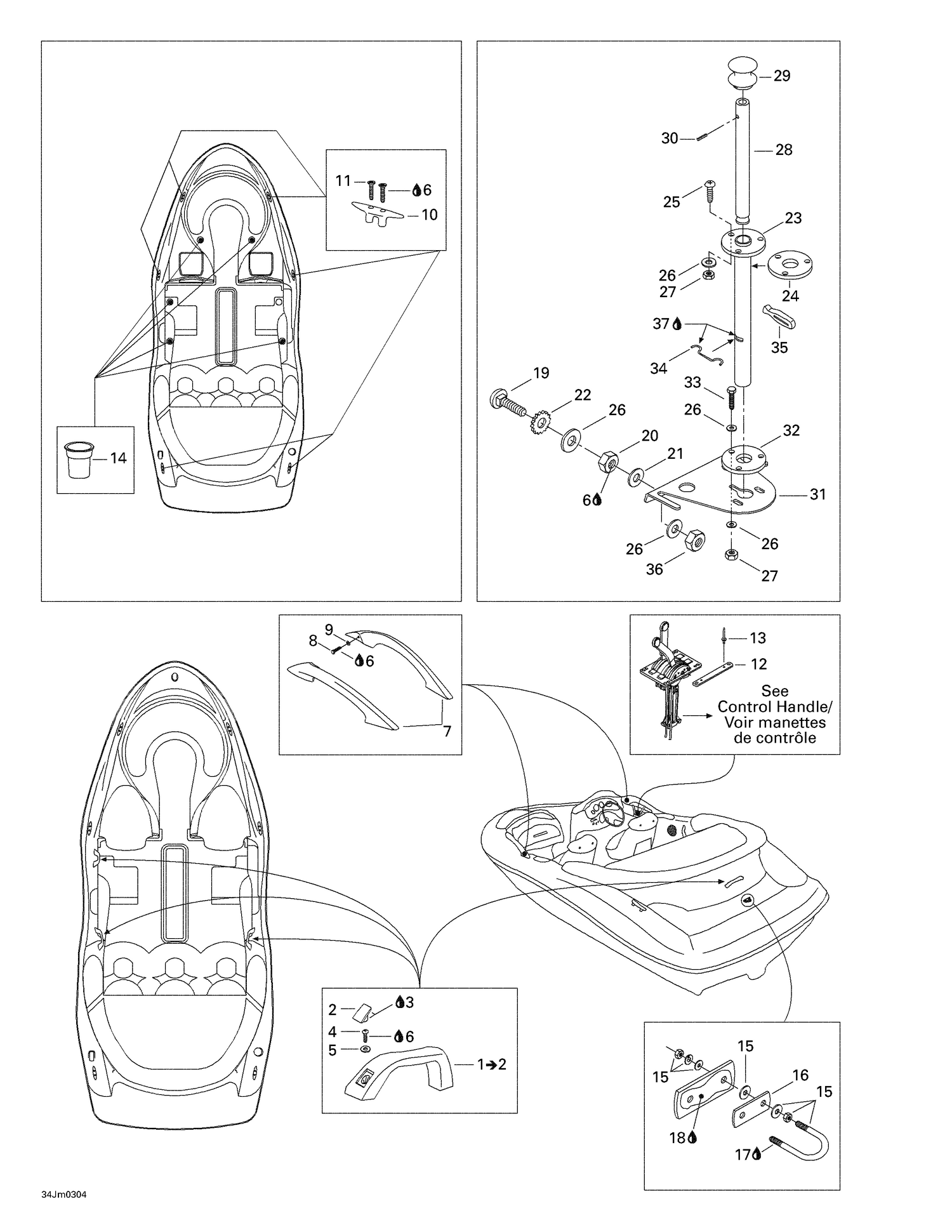

| Ref | Part Number | Description |
|---|
| 2 |
204073190 |
GRIP HANDLE, BLACK - Call your local BRP dealership This part replaces 204070207. |
| 4 |
205462560 |
SOCKET SCREW M6 X 25 - Call your local BRP dealership |
| 5 |
234061600 |
Stainless Flat Washer M6 |
| 6 |
293800060 |
Loctite 243, 10 ml |
| 7 |
204070590 |
RH Lateral Grip Handle |
| 8 |
207182560 |
HEX. SCREW M8 X 25 - Call your local BRP dealership |
| 9 |
234082600 |
Flat Washer 8 mm, Stainless |
| 10 |
204070592 |
CLEAT - Call your local BRP dealership |
| 11 |
205367060 |
Socket Head Screw M6 X 70 |
| 12 |
293450061 |
SHIFTER INSERT - Call your local BRP dealership |
| 13 |
293150013 |
Pop Rivet 3/16" |
| 14 |
291000619 |
CUP HOLDER - Call your local BRP dealership |
| 15 |
204070418 |
U-Bolt |
| 16 |
204070219 |
Finition Plate |
| 17 |
293800005 |
Loctite 271, 10 ml |
| 18 |
296000309 |
Silicone Sealant 51388, 300 ml |
| 19 |
211000193 |
Screw 1/4”-20 X 1-3/4” |
| 20 |
211100026 |
HEX. NUT 1/4 - Call your local BRP dealership |
| 21 |
234081600 |
Stainless, Flat Washer 8 mm |
| 22 |
234381608 |
TOOTHED LOCK WASHER - Call your local BRP dealership |
| 23 |
291001057 |
FIXED TUBE - Call your local BRP dealership |
| 24 |
293830045 |
RUBBER WASHER - Call your local BRP dealership |
| 25 |
208564060 |
PHILLIPS SCREW M6 X 40 - Call your local BRP dealership |
| 26 |
234062600 |
Flat Washer M6, Stainless |
| 27 |
232561600 |
Hex. Elastic Stop Nut M6 |
| 28 |
204072616 |
SKI SHAFT - Call your local BRP dealership This part replaces 291001058. |
| 29 |
293000004 |
SKI SHAFT CAP - Call your local BRP dealership |
| 30 |
211400004 |
ROLLED PIN M3 X 30 - Call your local BRP dealership |
| 31 |
291001059 |
Fixation Plate |
| 32 |
291001060 |
RETAINER WASHER - Call your local BRP dealership |
| 33 |
207162060 |
Hex. Forming Screw M6 X 20 |
| 34 |
291001205 |
SPRING - Call your local BRP dealership |
| 35 |
570023800 |
Windshield Latch |
| 36 |
212000005 |
NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership |
| 204070591 |
LH |
Lateral Grip Handle 204070591 |
