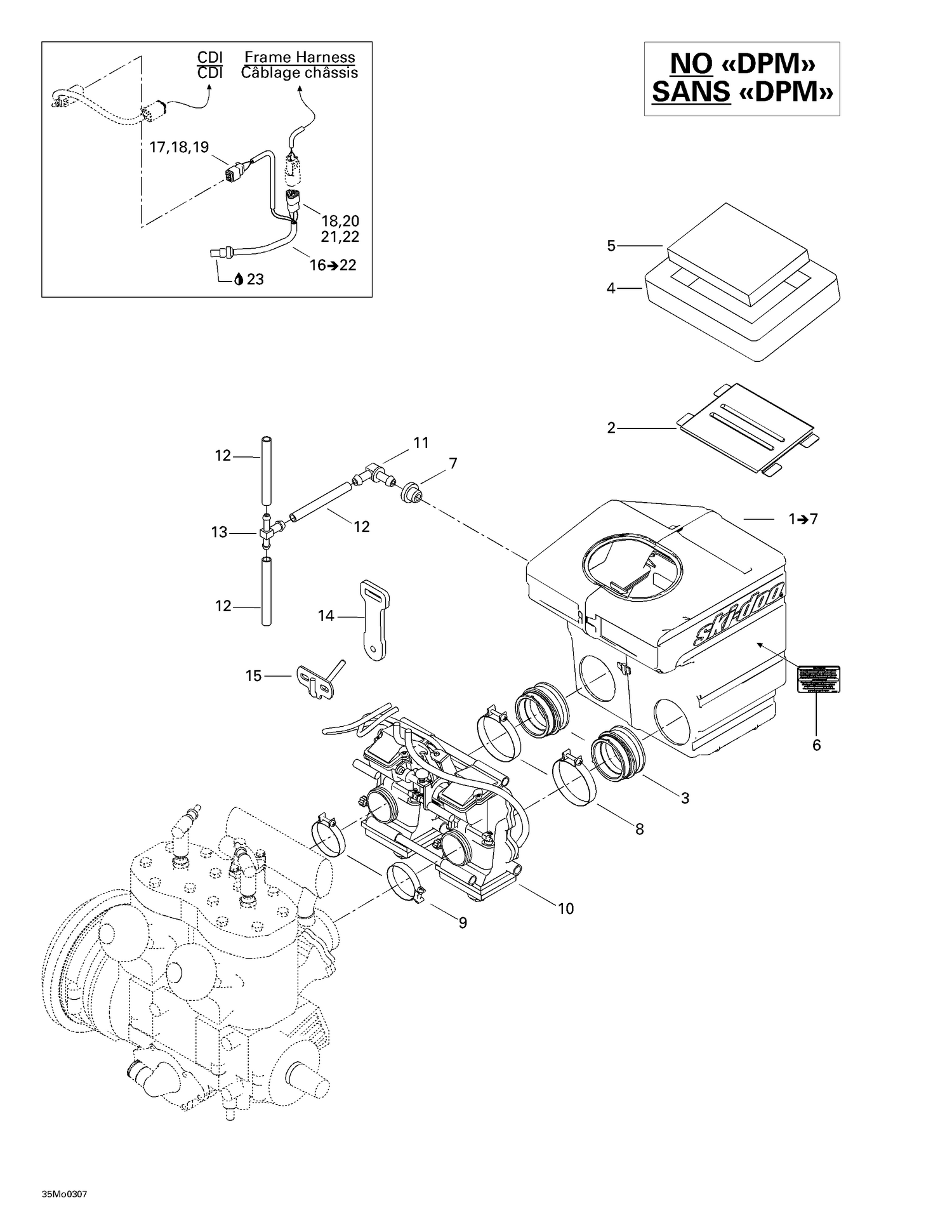

02- Air Intake System
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 508000004 | INTAKE GRILL - Call your local BRP dealership |
| 3 | 508000092 | Air Intake Adaptor, 40 mm |
| 4 | 508000099 | Lower Foam |
| 5 | 508000154 | Air Filter |
| 6 | 516002715 | CAUTION DECAL, AIR INTAKE - Call your local BRP dealership This part replaces 516001191. |
| 7 | 513032908 | Grommet |
| 8 | 508000346 | Gemi Clamp This part replaces 508000162. |
| 9 | 512059835 | Gemi Clamp This part replaces 512059305. |
| 11 | 414580600 | Elbow Male Connector |
| 12 | 219704410 | Polyurethane Hose 10000Mm Long |
| 13 | 572045500 | T-Fitting |
| 14 | 512059372 | CARBURETOR LATCH - Call your local BRP dealership |
| 15 | 512059504 | Carburetor Bracket |
| 17 | 515175670 | Female Terminal Housing, 2 Circuits |
| 18 | 278000632 | Female Terminal |
| 19 | 515175675 | Female Lock, 2 Circuits |
| 20 | 515175671 | FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership |
| 21 | 515175676 | Female Lock, 3 Circuits |
| 22 | 293000052 | Sealing Cap |
