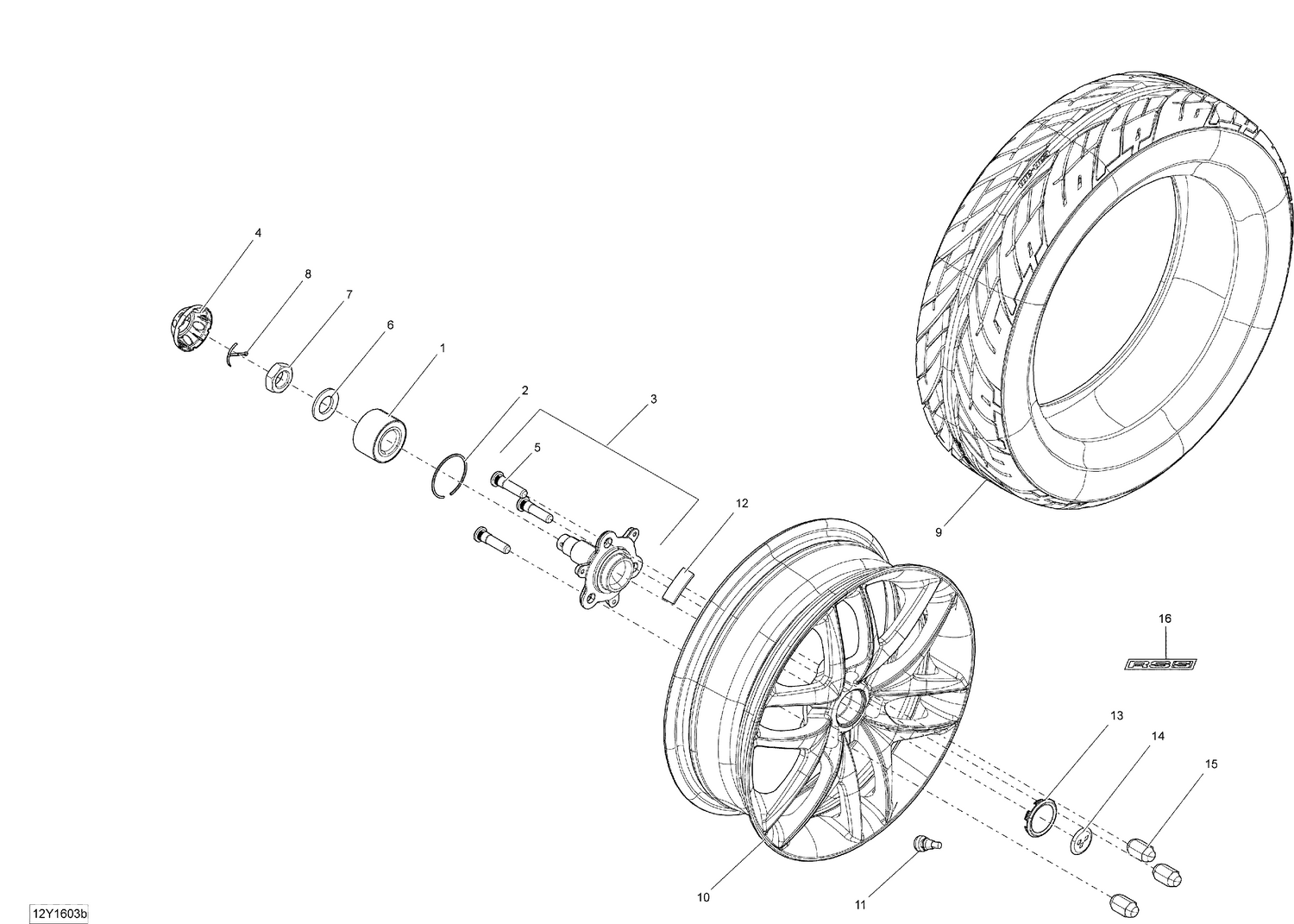

07- Drive System, Front - RS-S
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 293350150 | Ball Bearing This part replaces 293350040. |
| 2 | 293370019 | Circlip |
| 3 | 706202435 | Hub |
| 4 | 705401883 | Wheel Cap This part replaces 705401100. |
| 5 | 250300058 | Wheel Stud |
| 6 | 250200163 | Flat Washer This part replaces 250200156. |
| 7 | 250100170 | Hex. Jam Nut M24 |
| 8 | 250400047 | Cotter Pin |
| 9 | 706204795 | Front Tire 165/55R15 This part replaces 706202317. |
| 10 | 706201431 | RIM_15 INCH M-519 X 5 - Call your local BRP dealership This part replaces 706201786. |
| 11 | 705400193 | Rim Valve With Cap |
| 12 | 705502106 | Self Adhesive Weight, 5G 20mm |
| 13 | 705400388 | Black, Wheel Cap |
| 14 | 704905260 | Spyder Logo, 38mm |
| 15 | 250100154 | Chrome, Wheel Nut M12 X 1.5 |
