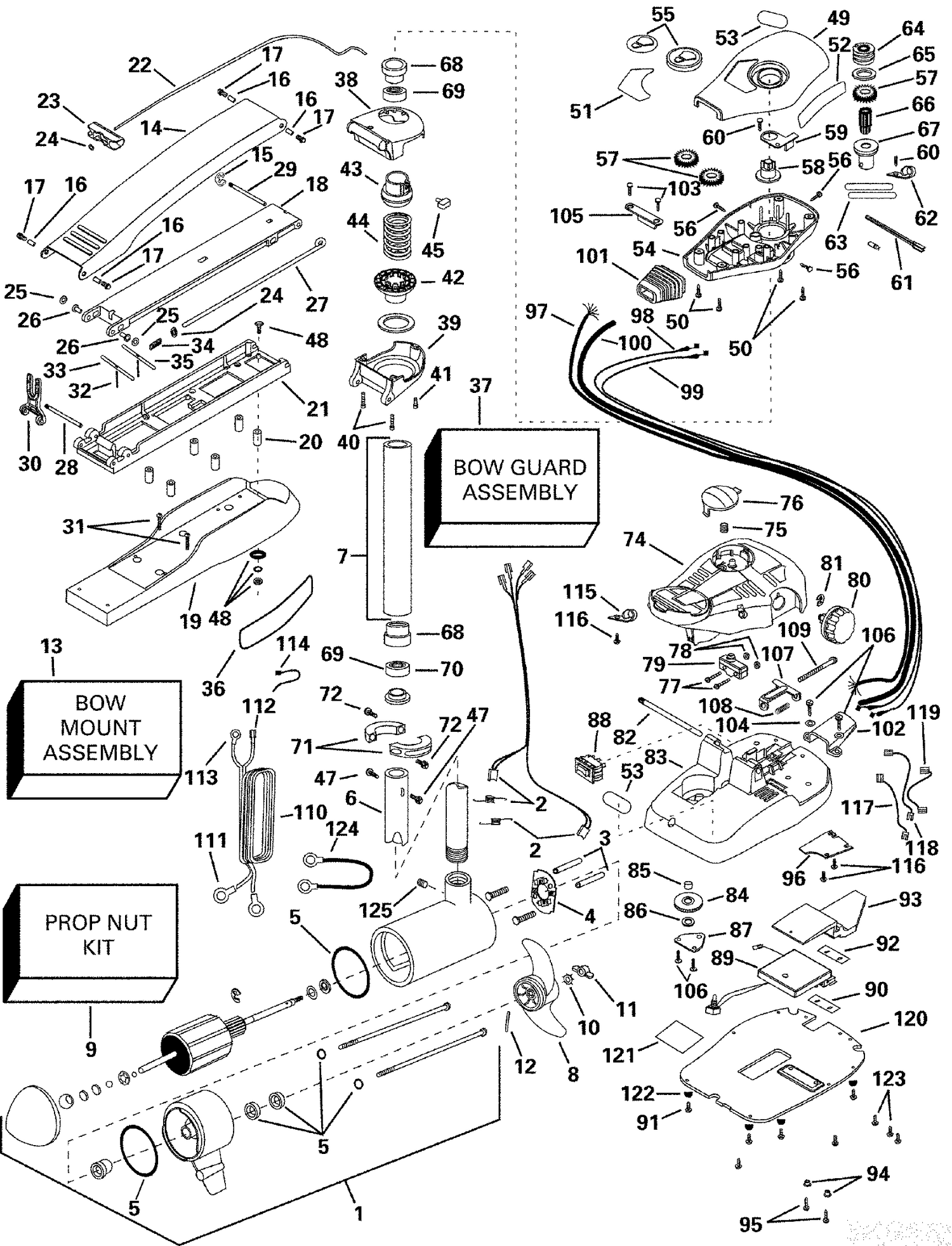

INTRUDER 74 FP
Parts (78)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0128235 | MOTOR ASSEMBLY |
| 6 | 0128241 | TUBE, 42 in. |
| 7 | 0128058 | TUBE & BEARING RACE |
| 8 | 0772776 | PROPELLER |
| 9 | 0772778 | PROP NUT KIT |
| 13 | 0128052 | BOW MOUNT ASSY |
| 36 | 0127995 | DECAL, Motor rest This part replaces 0127910. |
| 37 | 0128264 | BOW GUARD ASSY. |
| 47 | 0128065 | SCREW |
| 48 | 0128039 | MOUNTING HARDWARE |
| 49 | 5012069 | Cntrl Bx Ay2772514 This part replaces 0128112. |
| 51 | 0128282 | DECAL, Cover |
| 52 | 0128114 | DECAL, Side |
| 53 | 0127973 | DECAL, Cover |
| 54 | 5012069 | Cntrl Bx Ay2772514 This part replaces 0128056. |
| 55 | 0128017 | POINTER & DRIVER ASSY. |
| 56 | 0128348 | POINTER ASSY. |
| 57 | 0127977 | GEAR |
| 58 | 0128194 | INDICATOR, Drive |
| 59 | 0128116 | BRACKET, Indicator |
| 60 | 0128156 | SCREW |
| 61 | 0128118 | LIGHT, Indicator |
| 62 | 0128119 | CLAMP |
| 63 | 0128003 | SHRINK TUBE |
| 64 | 0128120 | PULLEY, Cable |
| 65 | 0128121 | WASHER |
| 66 | 0128122 | PINION, DRIVE |
| 67 | 0128310 | BEARING, RACE, Top |
| 68 | 0128062 | RACE, Bearing |
| 69 | 0128061 | BEARING |
| 70 | 0128088 | BEARING CONE |
| 71 | 0128124 | COLLAR, Tube |
| 72 | 0128125 | SCREW |
| 74 | 0128127 | FOOT PEDAL |
| 75 | 0128128 | PUSH BUTTON |
| 76 | 0128129 | SPRING, Lower pedal |
| 77 | 0128130 | SCREW |
| 78 | 0128131 | NUT |
| 79 | 0127970 | SWITCH |
| 80 | 0128315 | KNOB, Speed control |
| 81 | 0128137 | E-RING |
| 82 | 0128141 | PIN, Pivot |
| 83 | 0128142 | FOOT PEDAL BASE |
| 84 | 0128143 | PULLEY |
| 85 | 0128144 | BEARING |
| 86 | 0128145 | WASHER |
| 87 | 0128146 | COVER, Pully |
| 88 | 0127960 | SWITCH |
| 89 | 0127969 | CONTROL BOARD |
| 90 | 0128005 | INSULATING PAD |
| 91 | 0127968 | SCREW |
| 92 | 0127971 | INSULATING PAD |
| 93 | 0128318 | HEAT SINK |
| 94 | 0128319 | WASHER |
| 95 | 0128320 | SCREW |
| 96 | 0128147 | SWITCH PLATE |
| 97 | 0128321 | WIRE HARNESS |
| 98 | 0127975 | CABLE ASSY, Right |
| 99 | 0127976 | CABLE ASSY, Left |
| 100 | 0128151 | CABLE JACKET |
| 101 | 0128152 | BOOT, Control box |
| 102 | 0128153 | BOOT, Foot pedal |
| 104 | 0128154 | WASHER |
| 105 | 0128155 | BRACKET |
| 106 | 0128156 | SCREW |
| 107 | 0128157 | BRACKET |
| 108 | 0128158 | SPRING |
| 109 | 0128159 | SCREW |
| 110 | 0128018 | BATTERY CABLE ASSY. |
| 115 | 0128165 | CLAMP |
| 116 | 0128166 | SCREW |
| 117 | 0128168 | WIRE, White stripe |
| 118 | 0128323 | CONNECTING WIRE |
| 119 | 0128324 | WIRE, Green stripe |
| 120 | 0128325 | BOTTOM PLATE |
| 122 | 0127972 | BUMPER |
| 123 | 0128171 | SCREW |
| 124 | 0128234 | CONNECTOR CABLE |
