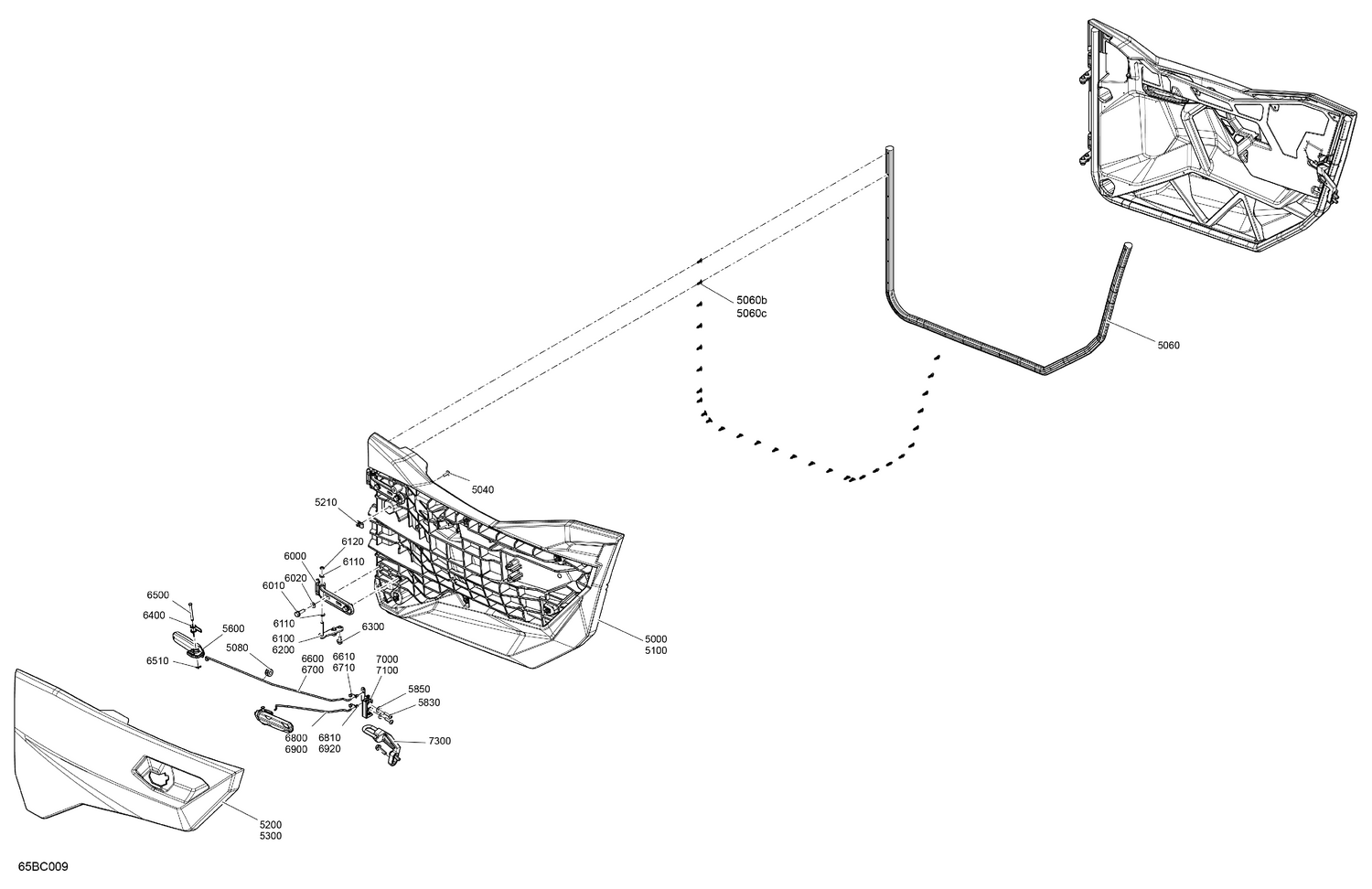

07- Enclosure Cab - Doors
Parts (36)
| Ref | Part Number | Description |
|---|---|---|
| 5000 | 705012982 | LH Front Door Panel |
| 5000 | 715009731 | LH Front Door Ass'y This part replaces 715007883. |
| 5040 | 250000722 | Torx Screw M6 X 20 |
| 5060 | 293250501 | LH Front Door Gasket Ass'y |
| 5060b | 293730081 | Natural Color, Dart |
| 5060c | 293730082 | Red, Dart |
| 5080 | 293720104 | Grommet |
| 5100 | 705012983 | RH Front Door Panel |
| 5100 | 715009732 | RH Front Door Trim Ass'y This part replaces 715008539. |
| 5200 | 705015610 | Carbon Black, LH Front Door Panel |
| 5210 | 250100198 | Panel Nut M6 X 1.0 |
| 5300 | 705015617 | Carbon Black, RH Front Door Panel |
| 5600 | 705017152 | Door Handle This part replaces 705012986. |
| 5830 | 250000807 | Torx Truss Screw M6 X 25 |
| 5850 | 234062670 | Stainless Steel Flat Washer |
| 6000 | 705013228 | Hinge |
| 6010 | 250001016 | Hex Flange Screw M8 X 25 S.Grip |
| 6020 | 503192494 | Washer |
| 6100 | 705011629 | Lower Hinge Ajustement |
| 6110 | 234081100 | Flat Washer 8 mm, Nylon |
| 6120 | 705601030 | Circlip |
| 6200 | 705012506 | Upper Hinge Ajustement |
| 6300 | 250001033 | Hex. Flange Screw DIN.6921 S.Grip |
| 6400 | 705013062 | Handle Spring |
| 6500 | 705207440 | Handle Axle |
| 6510 | 705601875 | External Retaining Ring |
| 6600 | 705207146 | LH Upper Locking Rod |
| 6610 | 708300202 | RH Tie Rod Clip |
| 6700 | 705207147 | RH Upper Locking Rod |
| 6710 | 708300182 | LH Tie Rod Clip |
| 6800 | 705207150 | LH Lower Locking Rod |
| 6810 | 708300202 | RH Tie Rod Clip |
| 6900 | 705207151 | RH Lower Locking Rod |
| 6920 | 708300182 | LH Tie Rod Clip |
| 7000 | 705013095 | LH Latch |
| 7100 | 705013096 | RH Latch |
