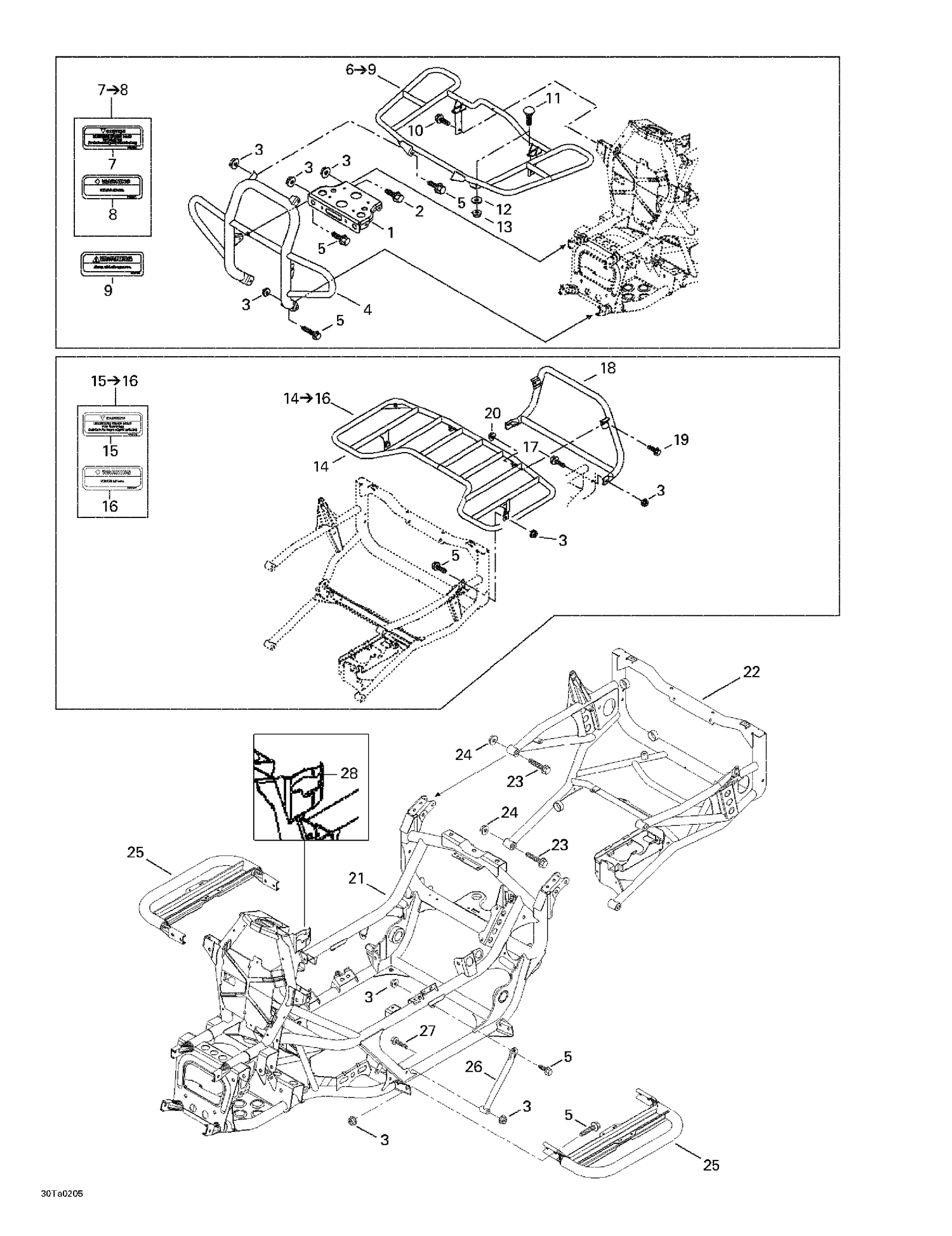

| Ref | Part Number | Description |
|---|
| 1 |
705200196 |
WINCH LATCH, BLACK - Call your local BRP dealership |
| 2 |
207682044 |
Hex. Flange Screw M8 X 20 |
| 3 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 4 |
705000001 |
Front bumper |
| 5 |
207682044 |
Hex. Flange Screw M8 X 20 |
| 7 |
Not |
Available As Spare Part - Warning Label (Max Front Load) |
| 8 |
Not |
Available As Spare Part - Warning Label (Do Not Sit Here) |
| 9 |
704900038 |
Warning Label, Tray Cover |
| 10 |
207582044 |
Hex. Flange Screw M8 X 20, Scotch Grip |
| 11 |
250000035 |
TRUSS PHILLIPS SCREW M6 X 25 - Call your local BRP dealership |
| 12 |
224060201 |
Flat Washer |
| 13 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 15 |
Not |
Available As Spare Part - Warning Label (Max Rear Load) |
| 16 |
Not |
Available As Spare Part - Warning Label (Do Not Sit Here) |
| 17 |
207685044 |
Hex. Flange Screw M8 X 50 |
| 18 |
705000210 |
Rear bumper (silver) |
| 19 |
207682046 |
Hex. Flange Screw M8 X 20 |
| 20 |
233281416 |
Hex. Elastic Flange Nut M8 |
| 21 |
705200411 |
Frame |
| 22 |
705200254 |
Frame Extention |
| 23 |
207605544 |
Hex. Flange Screw M10 X 55 |
| 24 |
233201414 |
Hex. Flange Elastic Nut M10 |
| 25 |
705000008 |
Footrest (silver) |
| 26 |
705200143 |
Removable Brace, Black |
| 27 |
207685044 |
Hex. Flange Screw M8 X 50 |
