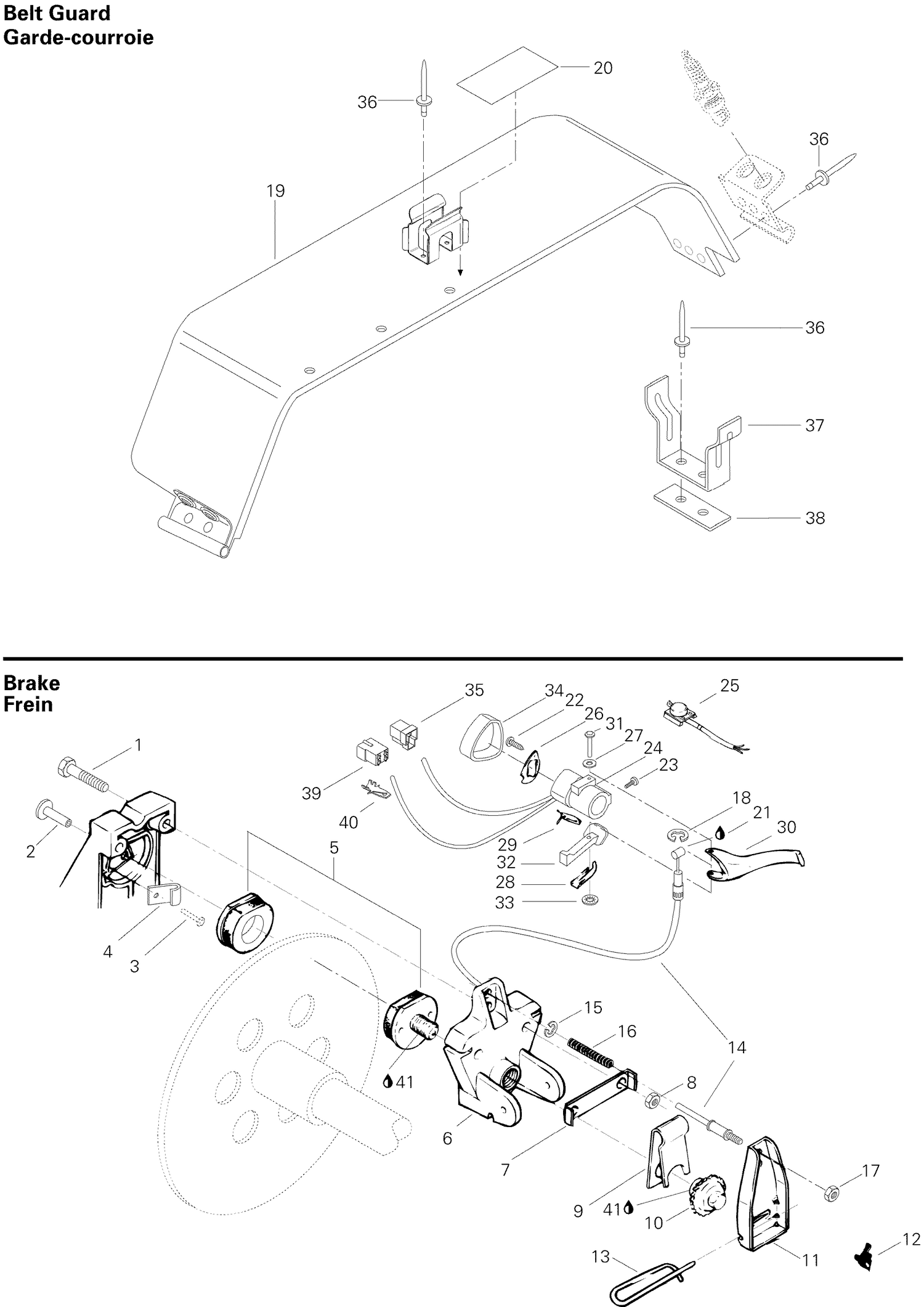

| Ref | Part Number | Description |
|---|
| 1 |
207085544 |
Hex. Screw M8 X 55 This part replaces 222085565. |
| 2 |
293150104 |
Pop Rivet 3/16" This part replaces 390409600. |
| 3 |
Not |
Available As Spare Part - Rivet |
| 4 |
507022600 |
WEAR INDICATOR - Call your local BRP dealership |
| 5 |
860701700 |
Pad_Brake Kit - Call your local BRP dealership |
| 6 |
507027600 |
Machined Caliper |
| 7 |
507020400 |
LOCK-TAB - Call your local BRP dealership |
| 8 |
232581414 |
Hex. Elastic Stop Nut M8 This part replaces 228581045. |
| 9 |
507020200 |
RELEASE SPRING - Call your local BRP dealership |
| 10 |
507019600 |
Wheel Ratchet |
| 11 |
507021500 |
LEVER - Call your local BRP dealership |
| 12 |
507009400 |
RATCHET SPRING - Call your local BRP dealership |
| 13 |
507027500 |
Hair Pin |
| 14 |
414922500 |
BRAKE CABLE - Call your local BRP dealership |
| 15 |
371901300 |
Circlip |
| 16 |
414460600 |
SPRING - Call your local BRP dealership |
| 17 |
232561434 |
Elastic Stop Nut M6 This part replaces 228561045. |
| 18 |
414274500 |
Circlip |
| 20 |
414108700 |
Warning Decal |
| 21 |
293550004 |
Dielectric Grease, 150 g This part replaces 413701700. |
| 22 |
414473200 |
Screw |
| 23 |
414440800 |
Socket Set Screw M8 X 10 |
| 24 |
414441600 |
Brake Handle Housing |
| 25 |
414612600 |
Dimmer Switch |
| 26 |
414473100 |
Cover |
| 27 |
414729400 |
WAVE SPRING WASHER METALCRAFT - Call your local BRP dealership |
| 28 |
517229300 |
Spring |
| 29 |
414612500 |
Brake Light Switch |
| 30 |
572025700 |
BRAKE HANDLE - Call your local BRP dealership |
| 31 |
517229400 |
PIN - Call your local BRP dealership |
| 32 |
572025200 |
Brake Lever |
| 33 |
389804300 |
Push Nut |
| 34 |
572073800 |
BRAKE COVER - Call your local BRP dealership |
| 35 |
409204200 |
FEMALE HOUSING - Call your local BRP dealership |
| 36 |
390402200 |
Pop Rivet 3/16" |
| 37 |
518202100 |
Belt Guard Bracket |
| 38 |
518207500 |
REINFORCEMENT - Call your local BRP dealership |
| 39 |
409209300 |
MALE HOUSING - Call your local BRP dealership |
| 40 |
409210000 |
MALE TERMINAL - Call your local BRP dealership This part replaces 409206100. |
