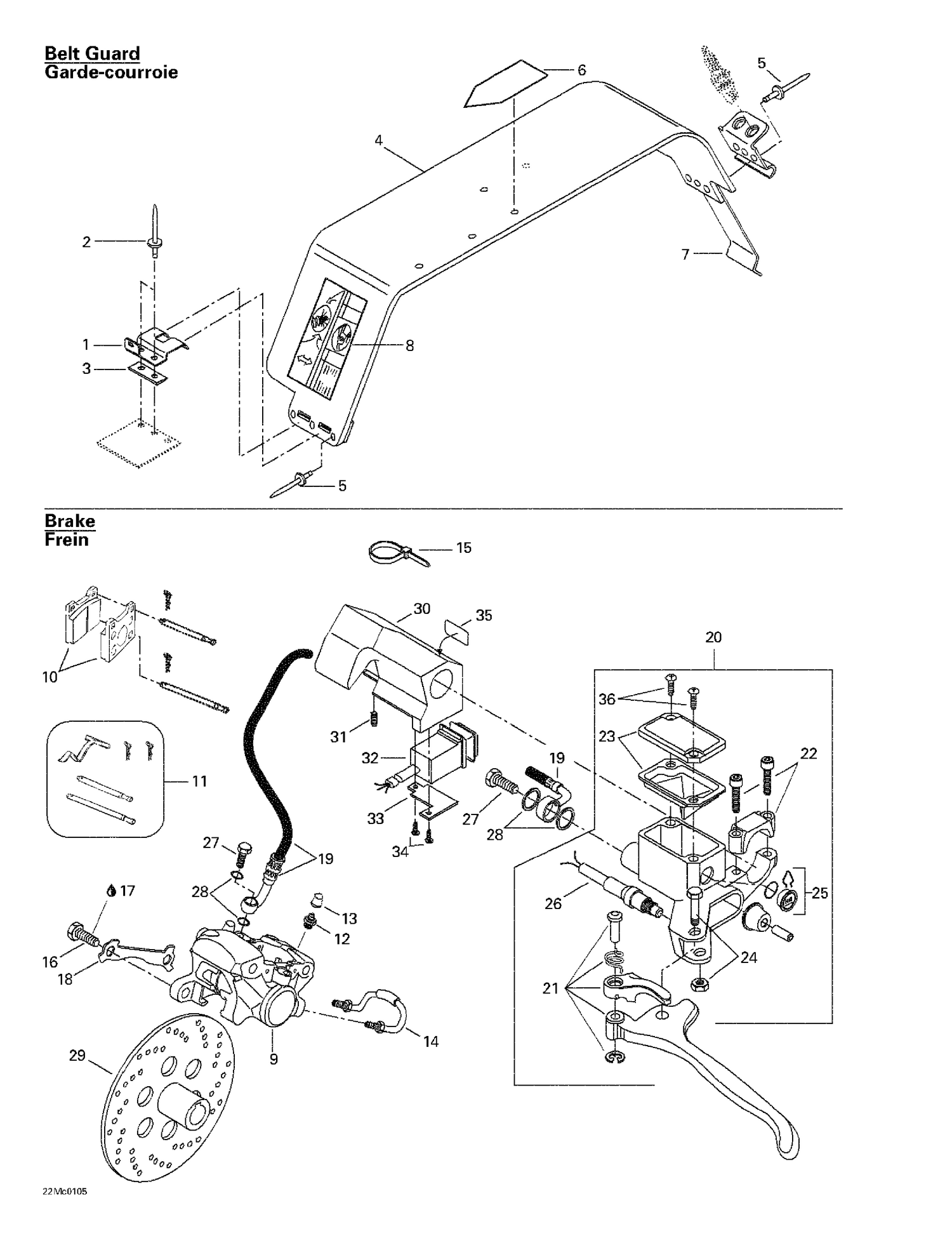

06- Hydraulic Brake And Belt Guard
Parts (32)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 518314200 | Pulley Guard Bracket |
| 2 | 390402200 | Pop Rivet 3/16" |
| 3 | 518207500 | REINFORCEMENT - Call your local BRP dealership |
| 5 | 380402200 | Pop Rivet 3/16" |
| 6 | 516002670 | WARNING DECAL, SECURITY BELT GUARD - Call your local BRP dealership This part replaces 516000132. |
| 7 | 414941800 | Tool Box Spring |
| 8 | 418001701 | Suspension Adjustment Decal |
| 10 | 415129172 | Brake Pad Kit This part replaces 415053600. |
| 11 | 414990700 | KIT, PINS, RETAINERS, SPRING - Call your local BRP dealership |
| 12 | 414989800 | BLEEDER SCREW - Call your local BRP dealership |
| 13 | 414989700 | BOOT-QTS 20 - Call your local BRP dealership |
| 14 | 414989900 | RIGID TUBING - Call your local BRP dealership |
| 15 | 414115200 | Tie-Rap 180 mm |
| 16 | 207103544 | Hex. Screw M10 X 35 |
| 17 | 293800060 | Loctite 243, 10 ml |
| 18 | 507029900 | Locking Tab |
| 19 | 507032568 | HOSE - Call your local BRP dealership This part replaces 507032212. |
| 21 | 507032428 | LEVER - Call your local BRP dealership This part replaces 415075300. |
| 22 | 507032477 | Clamp And Screw Kit This part replaces 415029800. |
| 23 | 415029900 | Cap |
| 24 | 415030000 | Pin Ass'y |
| 25 | 414990600 | WINDOW - Call your local BRP dealership |
| 26 | 507032366 | Microswitch This part replaces 507032284. |
| 27 | 414920500 | Banjo Bolt |
| 28 | 414920600 | Washer |
| 29 | 507032203 | Brake Disk |
| 30 | 572079500 | DIMMER SWITCH HOUSING - Call your local BRP dealership |
| 31 | 414440800 | Socket Set Screw M8 X 10 |
| 32 | 515175371 | Dimmer Switch |
| 33 | 517283800 | Plate |
| 34 | 414473200 | Screw |
| 35 | 415025500 | Switch Decal |
