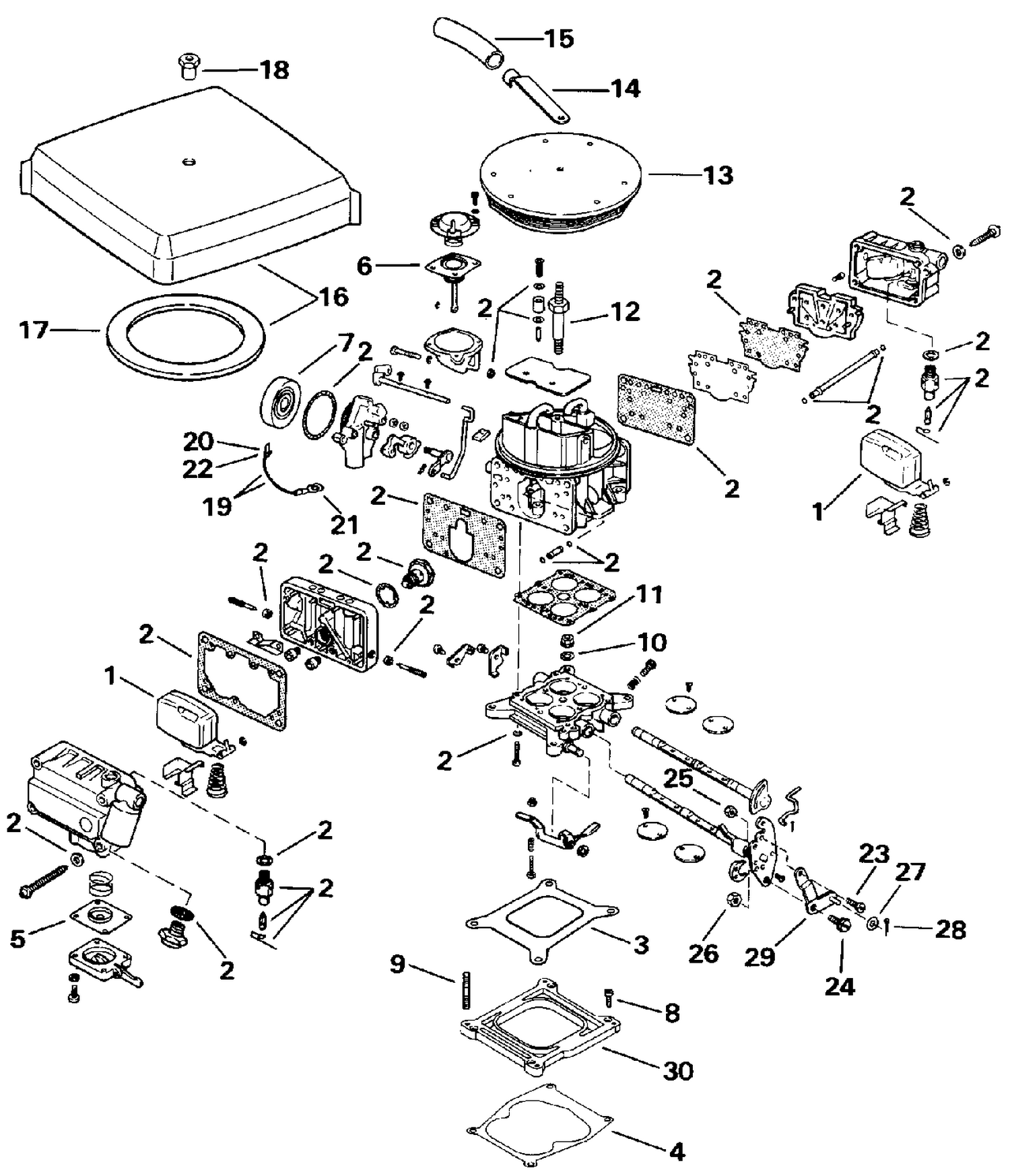

| Ref | Part Number | Description |
|---|
| 1 |
3853575 |
FLOAT This part replaces 0986787. |
| 2 |
0986799 |
REPAIR KIT |
| 3 |
3853497 |
GASKET, Spacer This part replaces 0915297. |
| 4 |
3852437 |
GASKET, Adapter to manifold This part replaces 0908238. |
| 5 |
3854257 |
DIAPHRAGM, Accelerator pump This part replaces 0987277. |
| 6 |
3853991 |
SECONDARY DIAPHRAGM This part replaces 0986577. |
| 7 |
3853992 |
ELECTRIC CHOKE This part replaces 0986579. |
| 8 |
3852864 |
SCREW, Adapter to intake manifold This part replaces 0913848. |
| 9 |
3853276 |
STUD, Carburetor mounting This part replaces 0914579. |
| 11 |
0316355 |
BUT, Carburetor mounting This part replaces 0315204. |
| 12 |
3852708 |
STUD, Flame arrestor This part replaces 0913479. |
| 13 |
3854026 |
FLAME ARRESTOR This part replaces 0986865. |
| 14 |
3852695 |
CONNECTOR, Crankcase vent hose This part replaces 0913404. |
| 15 |
HOSE, |
Crankcase vent, 9" (229mm) |
| 16 |
0987225 |
COVER, Flame arrestor |
| 17 |
3850458 |
PAD, Flame arrestor This part replaces 0914769. |
| 18 |
3852749 |
NUT, Cover This part replaces 0913631. |
| 19 |
3853845 |
Lead Ay This part replaces 0985128. |
| 22 |
0914970 |
COVER, Terminal |
| 23 |
0307466 |
SCRES, Bowl to body |
| 24 |
0319292 |
SCREW, Clamp |
| 26 |
3852420 |
LOCKNUT, Throttle lever This part replaces 0900402. |
| 29 |
3853861 |
THROTTLE LEVER & PIN This part replaces 0985720. |
| 0987305 |
3850288 |
BRACKET, Throttle cable This part replaces 0987305. |
