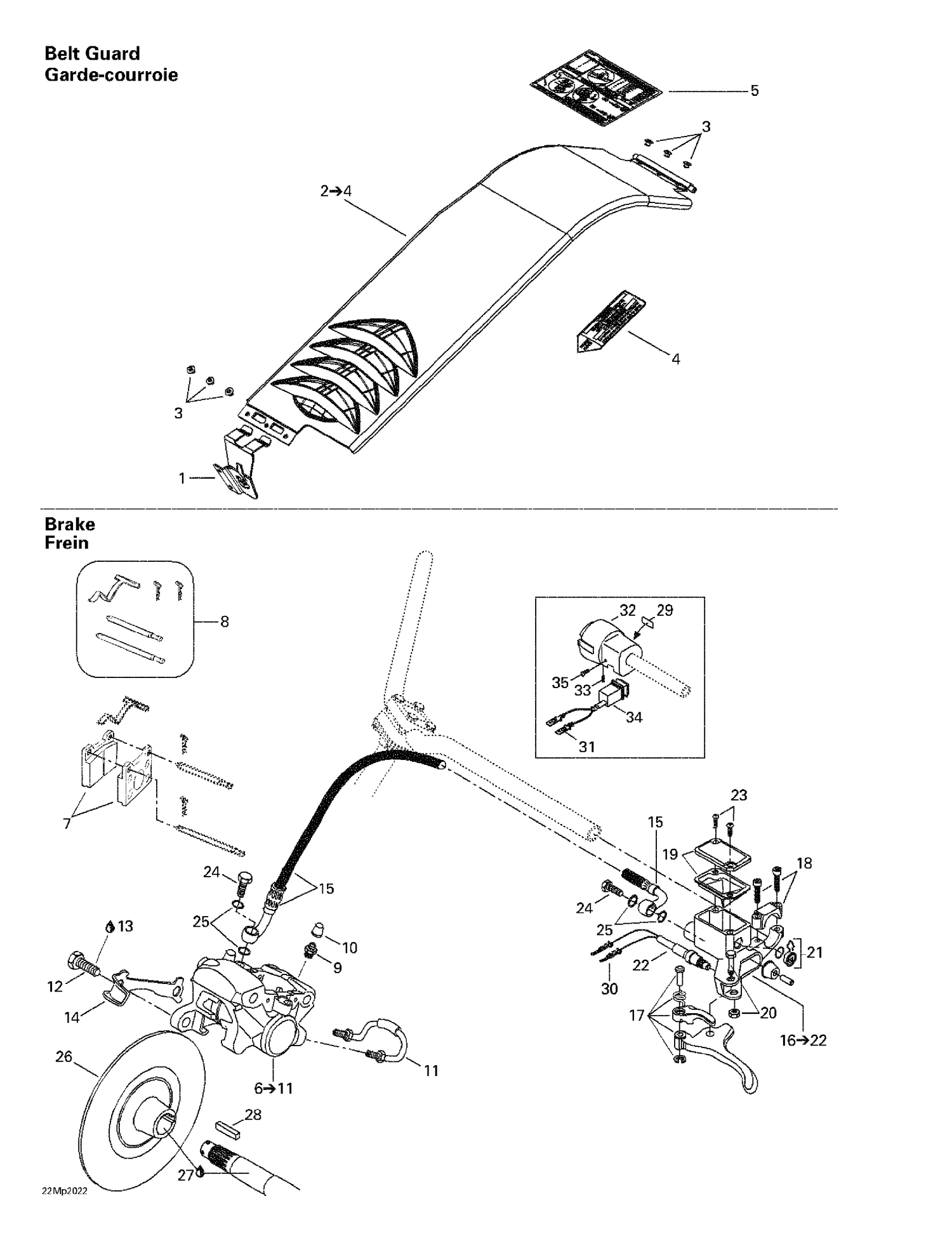

06- Hydraulic Brake And Belt Guard
Parts (33)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 417300001 | Bracket |
| 2 | 417300002 | Belt Guard Ass'y |
| 3 | 390402200 | Pop Rivet 3/16" |
| 4 | 516002670 | WARNING DECAL, SECURITY BELT GUARD - Call your local BRP dealership This part replaces 516000132. |
| 5 | 516000708 | Ajustement Decal |
| 6 | 414920000 | Caliper |
| 7 | 415084600 | Brake Pad Kit This part replaces 414990000. |
| 8 | 414990700 | KIT, PINS, RETAINERS, SPRING - Call your local BRP dealership |
| 9 | 414989800 | BLEEDER SCREW - Call your local BRP dealership |
| 10 | 414989700 | BOOT-QTS 20 - Call your local BRP dealership |
| 11 | 414989900 | RIGID TUBING - Call your local BRP dealership |
| 12 | 207103544 | Hex. Screw M10 X 35 |
| 13 | 293800060 | Loctite 243, 10 ml |
| 14 | 507029900 | Locking Tab |
| 15 | 507032237 | HOSE - Call your local BRP dealership |
| 17 | 507032268 | BRAKE SHORT LEVER ASSY - Call your local BRP dealership |
| 18 | 507032477 | Clamp And Screw Kit This part replaces 415029800. |
| 19 | 415029900 | Cap |
| 20 | 415030000 | Pin Ass'y |
| 21 | 414990600 | WINDOW - Call your local BRP dealership |
| 22 | 507032366 | Microswitch This part replaces 507032284. |
| 23 | 216141260 | SCREW M4 X 12 - Call your local BRP dealership |
| 24 | 414920500 | Banjo Bolt |
| 25 | 414920600 | Washer |
| 26 | 507031300 | BRAKE DISK - Call your local BRP dealership |
| 27 | 293800023 | LUBRICANT LOCTITE LB 8150 - Call your local BRP dealership |
| 28 | 507021300 | KEY - Call your local BRP dealership |
| 29 | 415025500 | Switch Decal |
| 30 | 515175232 | Male Terminal |
| 31 | 515175273 | MALE TERMINAL - Call your local BRP dealership |
| 32 | 515175307 | Brake Housing |
| 33 | 414440800 | Socket Set Screw M8 X 10 |
| 34 | 515175390 | Light Switch |
