Parts Catalog

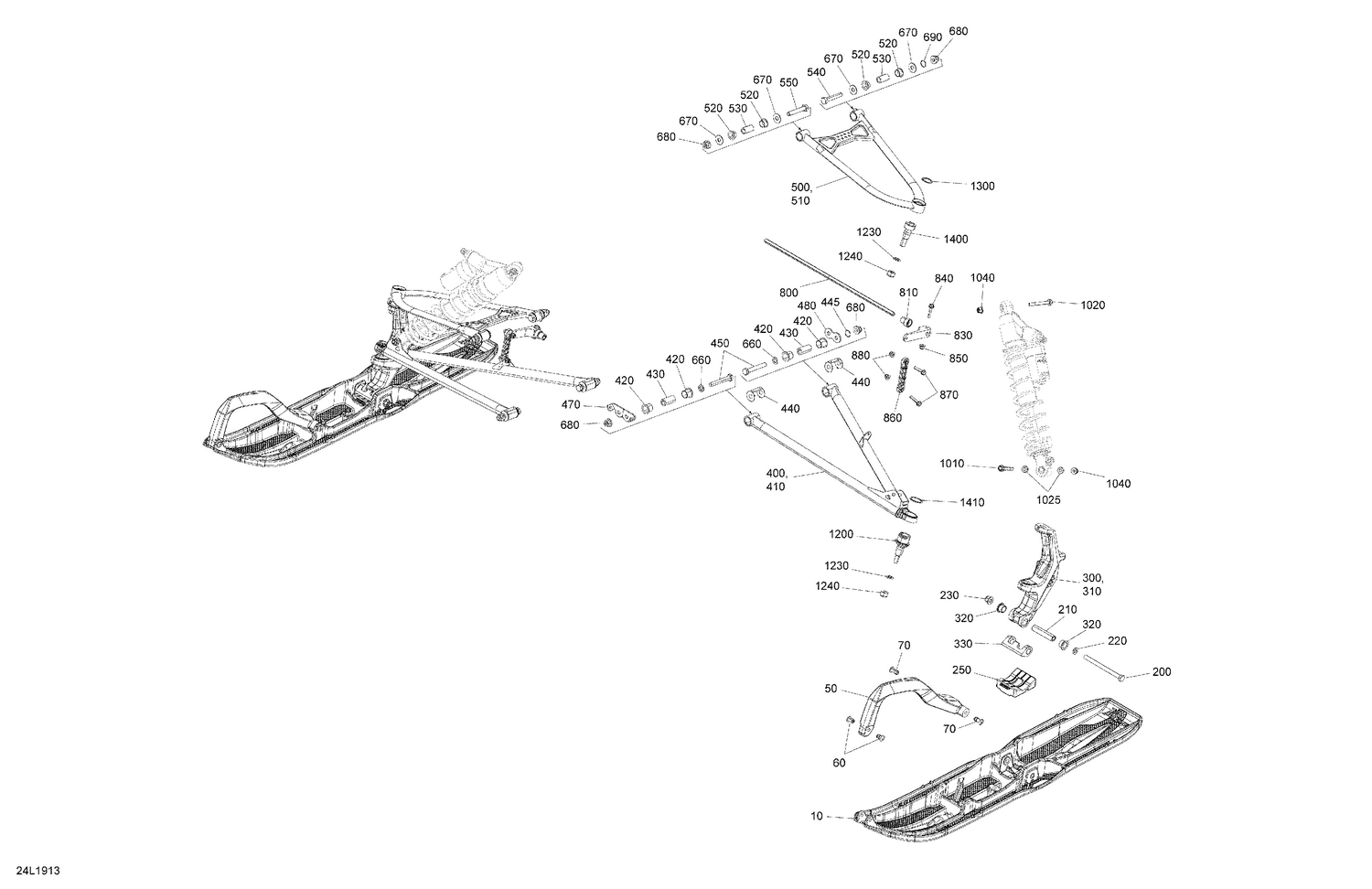

07- Front Suspension And Ski - XTRIM - (SKU LEKA - LEKB)

Parts (51)

Ref	Part Number	Description
10	505073834	Black, Ski Blade DS
40	860201044	Carbide Runner Kit (Square Runner)
45	233281414	Hex. Flange Elastic Nut M8
50	505073651	Orange, Handle
60	505071812	Retainer 17mm long
70	505072133	Retainer 23mm Long
200	250000703	Hex. Screw M10 X 130
210	505073691	Ski Axle
220	503192496	Washer
230	233201464	Hex. Elast. Flanged Nut M10 x 1.5
250	505072594	Ski Stopper
300	505074527	Deep Black, LH Ski Leg
310	505074528	Deep Black, RH Ski Leg
320	505072690	Leg Bushing
330	505074325	Spacer
400	505074085	Lower Arm RH
410	505074504	LH Lower Arm This part replaces 505074084.
420	505073330	Bushing
430	505072209	Bushing
440	505072634	Wear Plate
445	505072448	O-Ring
450	250001024	Screw Hex. M10 X 70
470	505073723	Wear Plate
480	505073844	Plate
500	505074611	LH Upper Arm 39
510	505074612	RH Upper Arm 39
520	505073329	Bushing
530	505072143	Bushing
540	250001023	Screw Hex. M10 X 60 This part replaces 250000290.
550	250001023	Screw Hex. M10 X 60 This part replaces 250000290.
660	503189564	Washer
670	505072392	Washer
680	250100165	Hex. Flanged Elastic Nut M10
690	505072448	O-Ring
800	505074719	Stabiliser This part replaces 505073819.
810	505072064	Bushing
830	505073731	Stabilisator Lever
840	207663056	Hex Flange Screw M6 X 1.0 X 30
850	233261466	Hex. Flanged Elastic Nut M6
860	505072204	Sway Bar Double Joint Link
870	207663056	Hex Flange Screw M6 X 1.0 X 30
880	233261466	Hex. Flanged Elastic Nut M6
1010	250000824	Hexagonal Flange Screw M8 X 58
1020	250000824	Hexagonal Flange Screw M8 X 58
1025	505073892	Spacer
1040	233281466	Elastic Flang Nut M8
1200	505074009	Ball Joint
1230	503192491	Washer
1240	232521464	Hex Elastic Nut M12 X 1.25
1300	293370070	Circlip
1400	505072913	Upper Ball Joint
