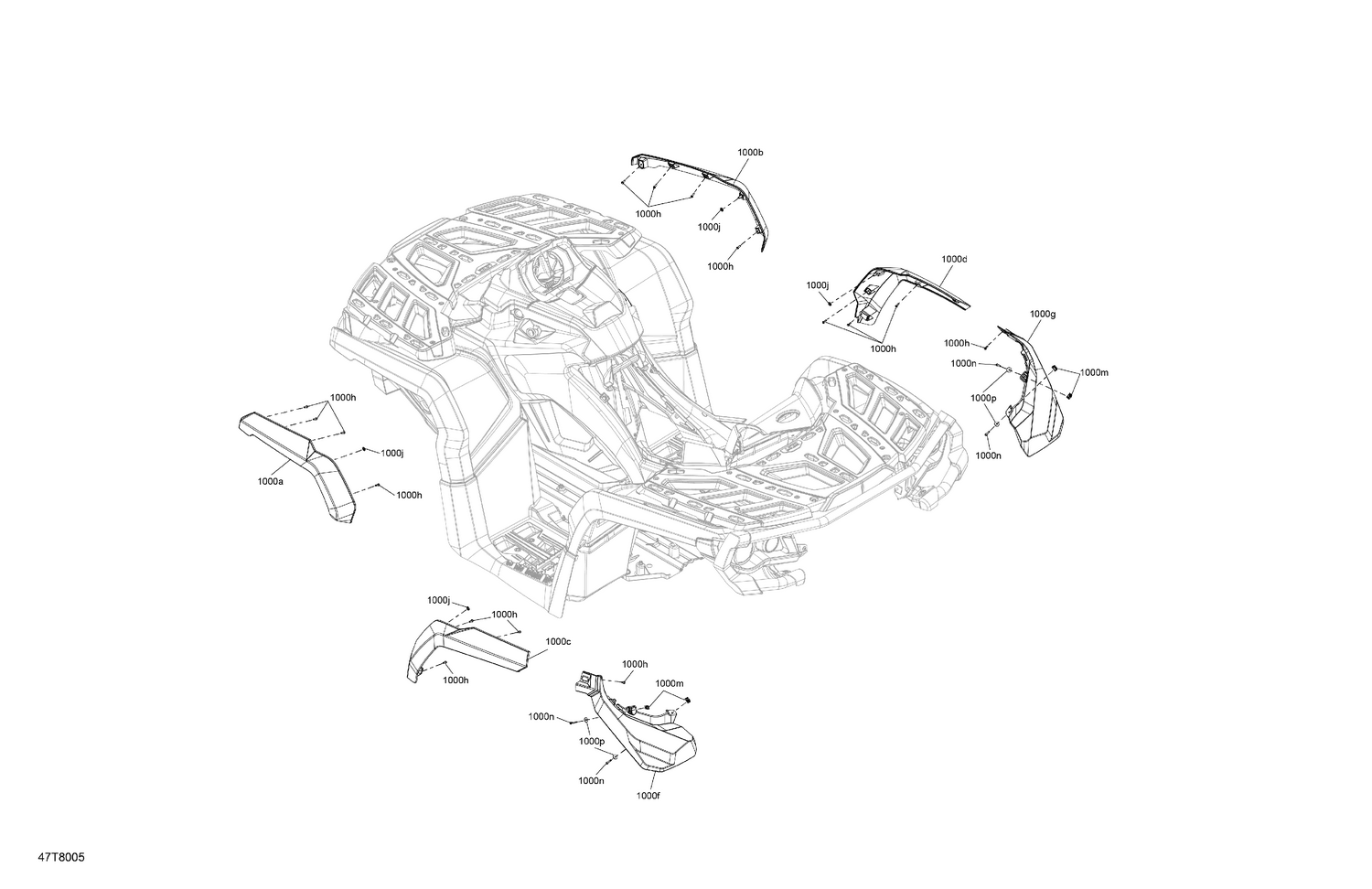

07- Body - Mudguard
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 1000a | 705006988 | LH Mud Guard |
| 1000b | 705006989 | RH Mud Guard |
| 1000c | 705003918 | LH Rear Mudguard |
| 1000d | 705003920 | RH Rear Mudguard |
| 1000f | 705003921 | LH Rear Mudguard, Part 2 |
| 1000g | 705003922 | RH Rear Mudguard, Part 2 |
| 1000h | 241141340 | Hex. Screw K40 X 13 |
| 1000j | 732610072 | Push Nut |
| 1000m | 250100143 | Extruded Panel Nut M4 X 0.7 |
| 1000n | 207342544 | Hex. Cap Screw M4 X 25 |
