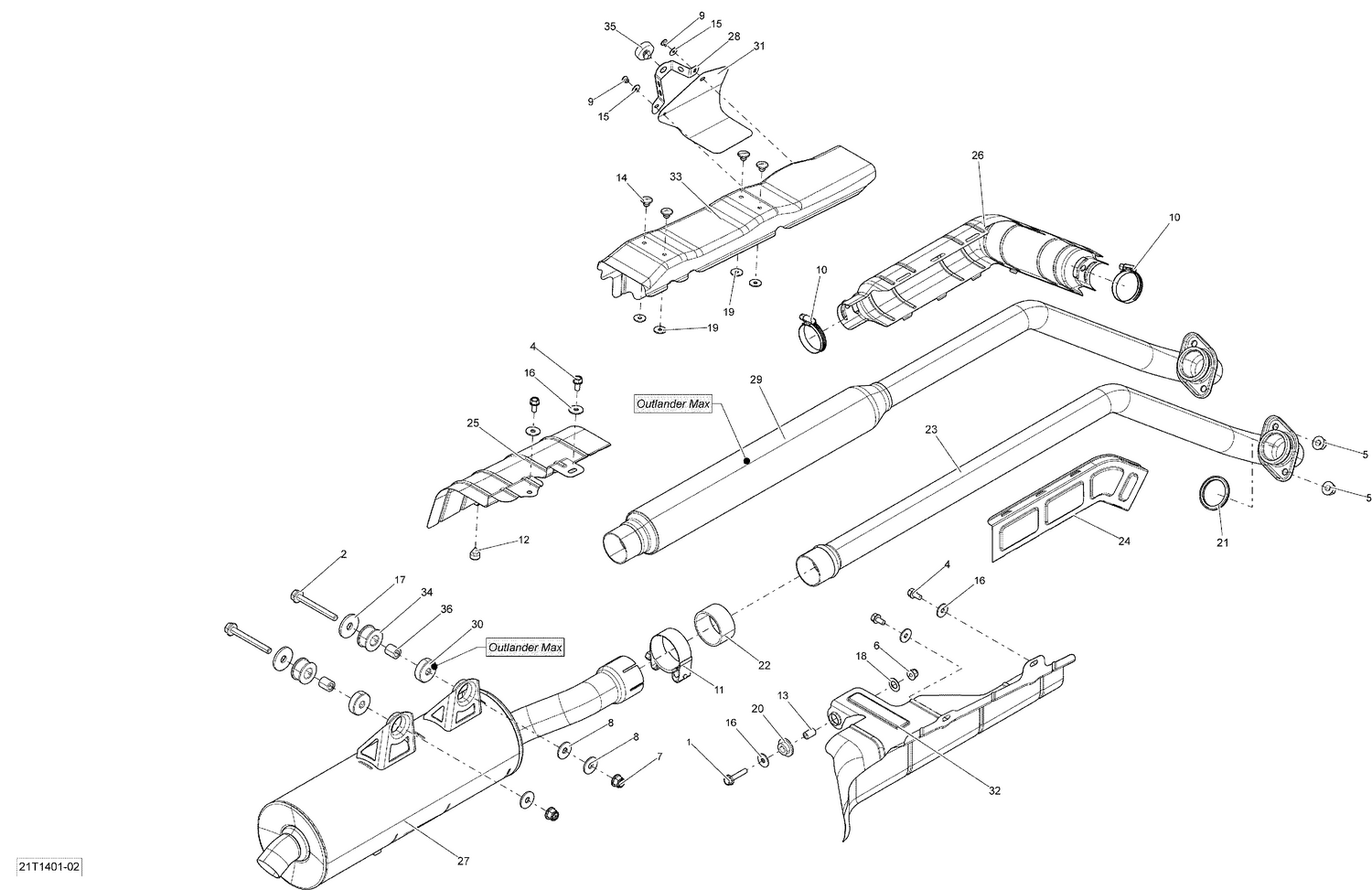

01- Exhaust System
Parts (32)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 207563034 | Hex. Flange Screw M6 X 30, Scotch Grip This part replaces 207663034. |
| 4 | 210261250 | Hex. Flange Screw M6 X 12 This part replaces 210261280. |
| 5 | 233081416 | Hex. Flange Nut M8 |
| 6 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 7 | 233281414 | Hex. Flange Elastic Nut M8 |
| 8 | 234082410 | Flat Washer 8 mm |
| 9 | 293150122 | RIVET_POP 1/8 X ,375 - Call your local BRP dealership |
| 10 | 293650098 | Norma Gear Clamp |
| 11 | 293650177 | Norma Gear Clamp |
| 12 | XXX | Not Available As Spare Parts |
| 13 | 293900078 | Sleeve |
| 14 | 390406500 | Pop Rivet 3/16" |
| 15 | 391301000 | WASHER - Call your local BRP dealership |
| 16 | 250200082 | Flat Washer |
| 17 | 503032900 | Washer |
| 18 | 503175800 | Washer |
| 19 | 517124300 | Washer |
| 20 | 705003932 | Grommet |
| 21 | 707600317 | Gasket |
| 22 | 707600430 | Pipe Gasket |
| 23 | 707600453 | PIPE_EXHAUST WELD - Call your local BRP dealership |
| 24 | 707600457 | HEAT SHIELD COVER - Call your local BRP dealership |
| 25 | XXX | Not Available As Spare Parts |
| 26 | 707600462 | Heat Base Shield |
| 28 | 707600581 | Panel Support |
| 29 | XXX | Not Available As Spare Parts |
| 30 | XXX | Not Available As Spare Parts |
| 31 | 707600618 | HEAT SHIELD - Call your local BRP dealership |
| 32 | 707600621 | Protector |
| 33 | 707600700 | HEAT SHIELD - Call your local BRP dealership |
| 34 | 707603323 | Vibration Damper This part replaces 707600701. |
| 35 | 708000506 | Rubber Stopper |
