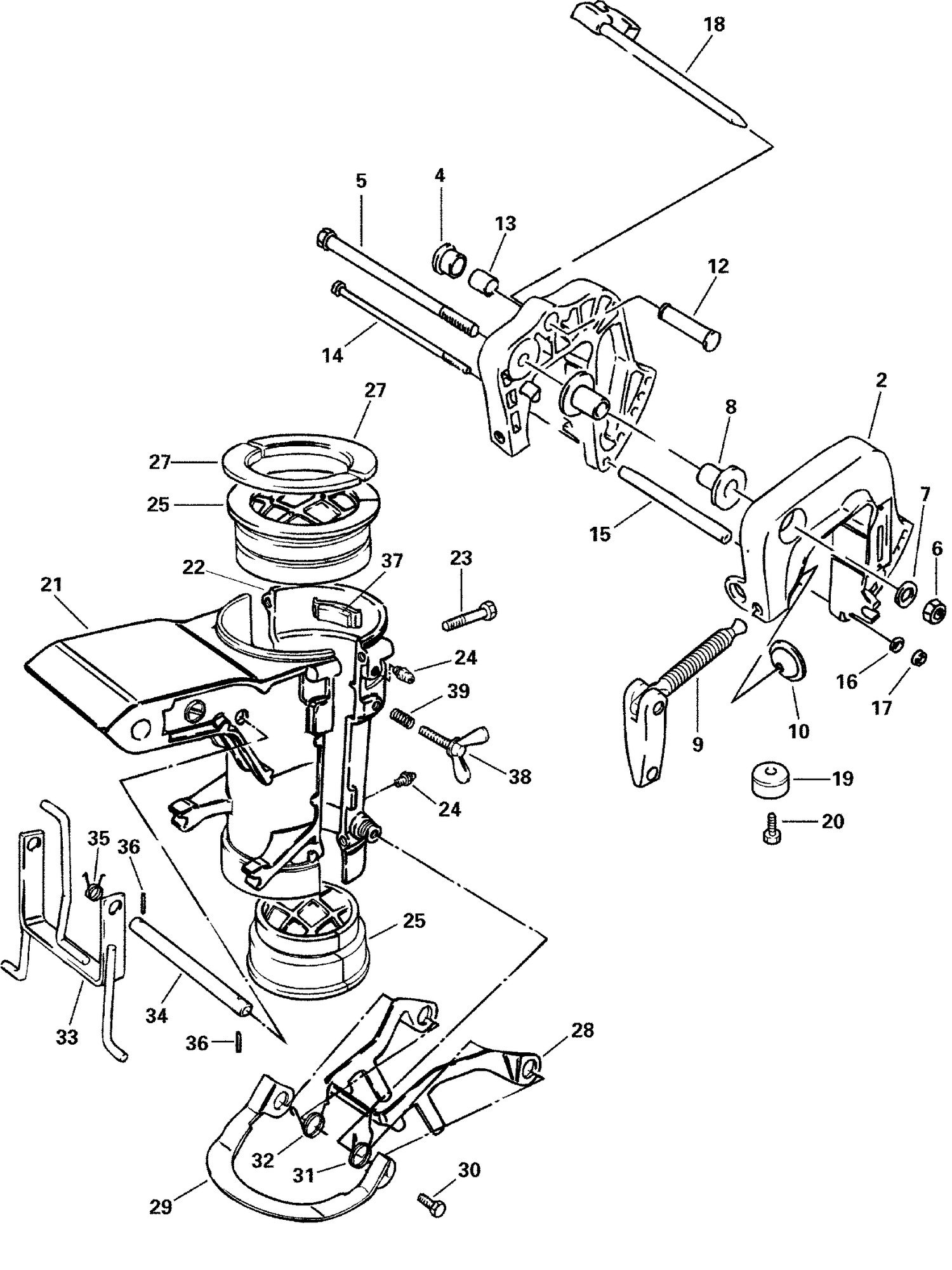

| Ref | Part Number | Description |
|---|
| 1 |
5032506 |
Stern Brkt-Stbd This part replaces 5031189. |
| 2 |
5032507 |
STERN BRACKET, Port. This part replaces 5031190. |
| 4 |
5030235 |
KNOB, Tilt |
| 5 |
5030027 |
BOLT (10X150mm) |
| 6 |
*5030054 |
NUT |
| 7 |
5030057 |
WASHER |
| 8 |
5030116 |
BUSHING, Bolt, stern brackets |
| 9 |
5030232 |
CLAMP, SCREW & HANDE ASSY. |
| 12 |
5030236 |
PIN, Tilt stop |
| 13 |
5030114 |
BUSHING, Tilt stop |
| 14 |
5030026 |
BOLT (6X140) |
| 15 |
5032262 |
ENTRETOISE |
| 18 |
5030052 |
NUT |
| 19 |
5030610 |
ANODE |
| 21 |
5032508 |
Bracket This part replaces 5031191. |
| 22 |
5032509 |
Cover This part replaces 5031192. |
| 23 |
5030042 |
BOLT, Cover to switvel bracket |
| 24 |
5030207 |
FITTING, GREASE |
| 25 |
5032496 |
BUSHING, Steering, upper and lower |
| 27 |
5030244 |
PLATE, Upper bushing |
| 28 |
5030248 |
ARM, Reverse lock |
| 29 |
5030250 |
PLATE, Reverse lock |
| 31 |
5030246 |
SPRING, Reverse lock, stbd. |
| 32 |
5030247 |
SPRING, Reverse lock, port |
| 33 |
5030255 |
SHALLOW WATER DRIVE ASSY. |
| 37 |
5030242 |
WEDGE, Steering friction |
| 38 |
5030047 |
BOLT, Wedge, friction |
