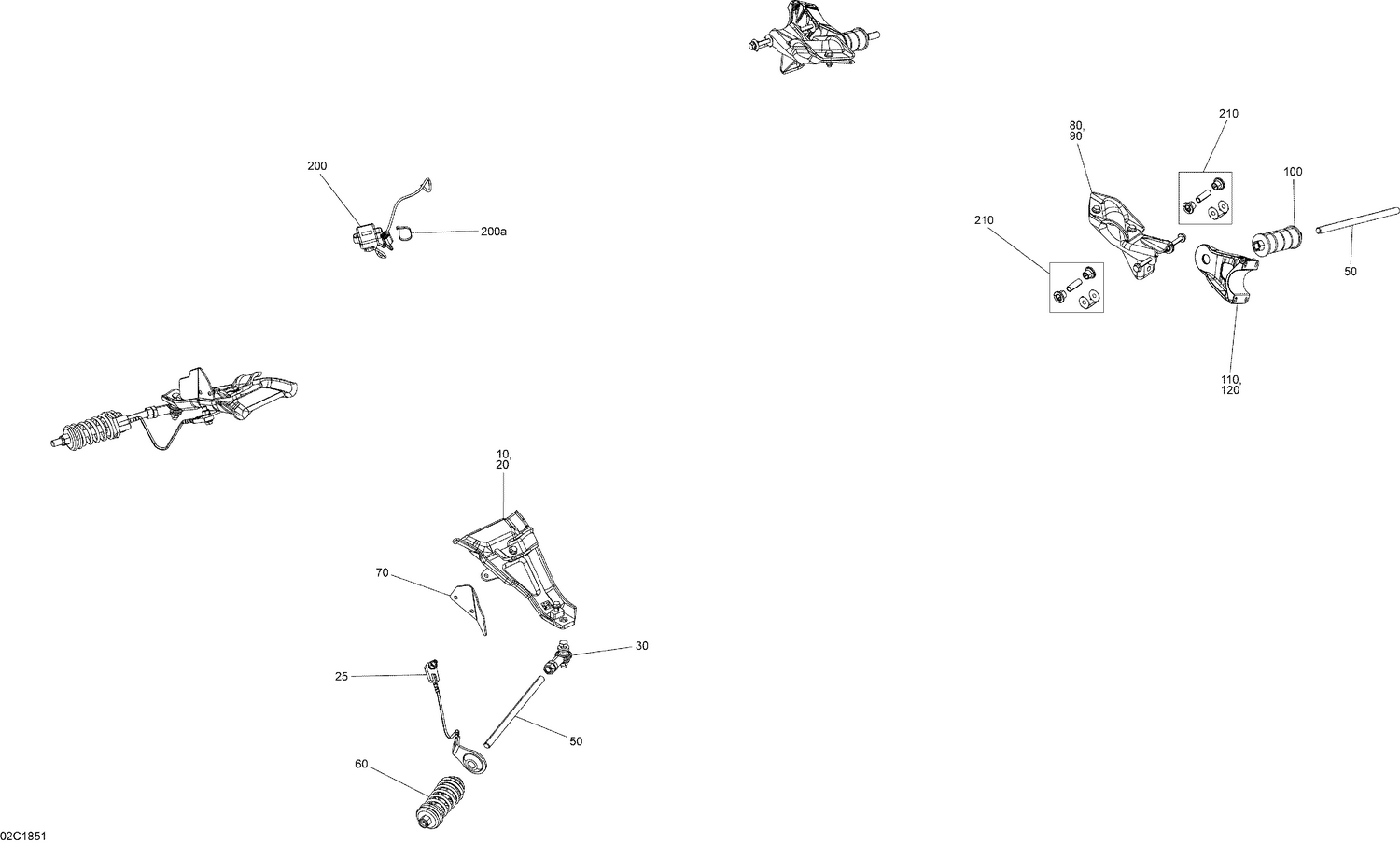

09- Attachment
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 219001259 | User's Guide, Track Kit |
| 4 | 704904566 | Decal "Can-Am" |
| 10 | 715004399 | LH Front Sub-Table Ass'y |
| 10a | 715005760 | Ssv Adjustable Limiter Cable Kit This part replaces 715004750. |
| 20 | 715004400 | RH Front Sub-Table Ass'y |
| 20a | 715005760 | Ssv Adjustable Limiter Cable Kit This part replaces 715004750. |
| 30 | 715002562 | Ball Joint Kit |
| 40 | 715004824 | Rear Ball Joint Kit |
| 50 | 705401659 | Anti-Roll Bar |
| 60 | 715004825 | Damper And Ressort Kit |
| 70 | 715004826 | Boots Protectors Kit |
| 80 | 715004401 | LH Rear Sub-Table Ass'y |
| 90 | 715004402 | RH Rear Sub-Table Ass'y |
| 100 | 715002053 | Rear Damper Kit |
| 110 | 715002566 | LH Mounting Clamp |
| 120 | 715002567 | RH Mounting Clamp |
| 200 | 715007338 | Track Module Kit This part replaces 715002001. |
